New Nec model EM tablet/capsule counter and filler
-Satin Polished finish
-Vibratory Hopper
-HMI and PLC
-Glass turntable
-Twin funnels
-1/17 HP, single phase, 60 Hz, 110 volt motor

New APV Model PHE Stainless Steel Plate Heat Exchanger
- 126 stainless steel plates
- 35” long x 19” wide x 62” high plates dimensions
- 2 ½” inlet & outlet
- 10 °C minimum temperature design
- 90 °C maximum temperature design
- 10 bar pressure design
- 14 bar pressure test

New Adept ATR B 10 Station Tablet Press
- 10 Stations
- B Tooling
- GMP
- Pre-compression
- Forced feeder
- 3 HP motor to meet your electrical requirements
- Output: up to 18,000 tablets/hr
- Maximum tablet diameter: 18.5 mm
- Maximum depth of fill: 18 mm
- Maximum operating pressure: 6 tons
- Machine dimensions: 63 x 86 x 120 cms
- Machine weight: 450 kgs
Optional stainless steel table with 2 drawers with locks: $1,500.00

New Adept ATR B and D Tablet Press
- 8 Stations
- (4) D and (4) B Tooling
- GMP
- Pre-compression
- Forced feeder
- 3 HP motor to meet your electrical requirements
- Output: up to 14,400 tablets/hr
- Maximum tablet diameter: 25mm D/18.5 mm B
- Maximum depth of fill: 18 mm
- Maximum operating pressure: 6 tons
- Machine dimensions: 63 x 86 x 120 cms
- Machine weight: 450 kgs
Optional stainless steel table with 2 drawers with locks: $1,500.00

New Adept ATR D 8 Station Tablet Press
- 8 stations
- D Tooling
- GMP
- Pre-compression
- Forced feeder
- 3 HP motor to meet your electrical requirements
- Output: up to 14,400 tablets/hr
- Maximum tablet diameter: 25 mm
- Maximum depth of fill: 18 mm
- Maximum operating pressure: 6 tons
- Machine dimensions: 63 x 86 x 120 cms
- Machine weight: 450 kgs
Optional stainless steel table with 2 drawers with locks: $1,500.00

New Adept model ADR 27 Station Double Sided Tablet Press
- D tooling
- Double keyed
- GMP model
- Knob controls for tablet weight and thickness
- A.C. speed variator
- Auto lubrication
- 5 HP, 1440 RPM motor

Maximum tablet diameter: 25 mm
Maximum tablets/hour: 97,200
Maximum fill depth: 17.5 mm
Maximum pressure: 10 tons
Machine dimensions: 42" x 43" x 63"

New Adept model ADR 35 Station Double Sided Tablet Press
- B tooling
- Double keyed
- GMP model
- Knob controls for tablet weight and thickness
- A.C. speed variator
- Auto lubrication
- 5 HP, 1440 RPM motor

Maximum tablet diameter (round): 18.5 mm
Maximum tablet diameter (caplet): 19 mm
Maximum tablets/hour: 159,600
Maximum fill depth: 17.5 mm
Maximum pressure: 10 tons
Machine dimensions: 42" x 43" x 63"

New Adept model ADR 45 Station Double Sided Tablet Press
- B tooling
- Double keyed
- GMP model
- Knob controls for tablet weight and thickness
- A.C. speed variator
- Auto lubrication
- 5 HP, 1440 RPM motor

Maximum tablet diameter (round): 13 mm
Maximum tablet diameter (caplet): 16 mm
Maximum tablets/hour: 205,200
Maximum fill depth: 17.5 mm
Maximum pressure: 10 tons
Machine dimensions: 42" x 43" x 63"

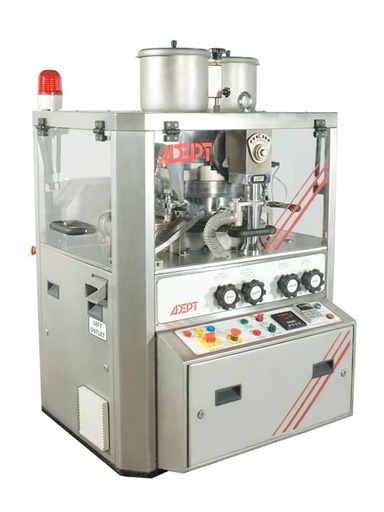

New Adept model ADR 59 Station Double Sided Tablet Press
- BB tooling
- Double keyed
- GMP model
- Knob controls for tablet weight and thickness
- A.C. speed variator
- Auto lubrication
- 5 HP, 1440 RPM motor

Maximum tablet diameter (round): 10 mm
Maximum tablets/hour: 269,040
Maximum fill depth: 17.5 mm
Maximum pressure: 6.5 tons
Machine dimensions: 42" x 43" x 63"

New Adept model AMR 101-Station MEGA Tablet Press
- B tooling
- Keyed head
- GMP model
- Contact parts 316 stainless steel, non-contact parts in compression area are either 304 stainless steel or hard chrome plated
- Knob controls for pre-compression, main compression & weight
- Independent control panel with PLC
- A.C. speed variator
- Auto lubrication
- Safety interlocks
- Bi-layer capability
- Hopper capacity: 20 liters
- 10 HP, 1440 RPM motor
Maximum tablet diameter (round): 10mm
Maximum tablet diameter (caplet): N/A
Maximum fill depth: 18mm
Maximum tablets/hour: 480,000
Maximum pre-compression pressure: 10 tons
Maximum main pressure: 6.5 tons
Machine dimensions: 47" x 47" x 71"

Options:
IQ OQ DQ documents: $900
Bi-layer attachment: $5,000
Dust collector: $4,000
Deduster: $3,100
Metal detector: $13,000
Venturi powder transfer system: $19,800
Recommended spare parts kit: $4,900

New Adept model AMR 45-Station MEGA Tablet Press
- D tooling
- Keyed head
- GMP model
- Contact parts 316 stainless steel, non-contact parts in compression area are either 304 stainless steel or hard chrome plated
- Knob controls for pre-compression, main compression & weight
- Independent control panel with PLC
- A.C. speed variator
- Auto lubrication
- Safety interlocks
- Bi-layer capability
- Hopper capacity: 20 liters
- 15 HP, 1440 RPM motor
Maximum tablet diameter (round): 25mm
Maximum tablet diameter (caplet): 25mm
Maximum fill depth: 20mm
Maximum tablets/hour: 218,000
Maximum pre-compression pressure: 10 tons
Maximum main pressure: 10 tons
Machine dimensions: 47" x 47" x 71"

Options:
IQ OQ DQ documents: $900
Bi-layer attachment: $5,000
Dust collector: $4,000
Deduster: $3,100
Metal detector: $13,000
Venturi powder transfer system: $19,800
Recommended spare parts kit: $4,900

New Adept model AMR 61-Station MEGA Tablet Press
- B tooling
- Keyed head
- GMP model
- Contact parts 316 stainless steel, non-contact parts in compression area are either 304 stainless steel or hard chrome plated
- Knob controls for pre-compression, main compression & weight
- Independent control panel with PLC
- A.C. speed variator
- Auto lubrication
- Safety interlocks
- Bi-layer capability
- Hopper capacity: 20 liters
- 10 HP, 1440 RPM motor
Maximum tablet diameter (round): 18.5mm
Maximum tablet diameter (caplet): 19mm
Maximum fill depth: 18mm
Maximum tablets/hour: 288,000
Maximum pre-compression pressure: 10 tons
Maximum main pressure: 6.5 tons
Machine dimensions: 47" x 47" x 71"

Options:
IQ OQ DQ documents: $900
Bi-layer attachment: $5,000
Dust collector: $4,000
Deduster: $3,100
Metal detector: $13,000
Venturi powder transfer system: $19,800
Recommended spare parts kit: $4,900

New Adept model AMR 75-Station MEGA Tablet Press
- B tooling
- Keyed head
- GMP model
- Contact parts 316 stainless steel, non-contact parts in compression area are either 304 stainless steel or hard chrome plated
- Knob controls for pre-compression, main compression & weight
- Independent control panel with PLC
- A.C. speed variator
- Auto lubrication
- Safety interlocks
- Bi-layer capability
- Hopper capacity: 20 liters
- 10 HP, 1440 RPM motor
Maximum tablet diameter (round): 13mm
Maximum tablet diameter (caplet): 18mm
Maximum fill depth: 18mm
Maximum tablets/hour: 380,000
Maximum pre-compression pressure: 10 tons
Maximum main pressure: 6.5 tons
Machine dimensions: 47" x 47" x 71"

Options:
IQ OQ DQ documents: $900
Bi-layer attachment: $5,000
Dust collector: $4,000
Deduster: $3,100
Metal detector: $13,000
Venturi powder transfer system: $19,800
Recommended spare parts kit: $4,900

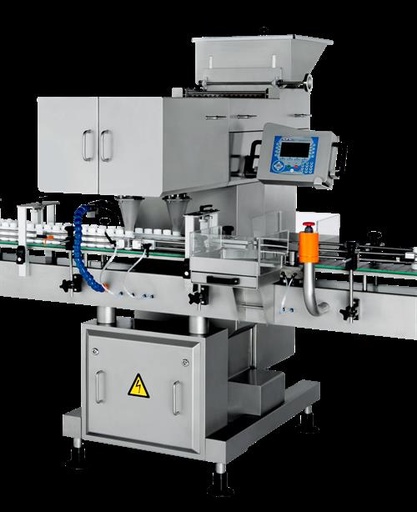

New CVC (Cremer) model 1220 High Speed Electronic Channel Counter
- 12 channels, each with an infrared sensor
- LD hand held terminal (Touch screen PC terminal optional)
- Infeed and outfeed track sensors
- Auto dust compensation with dual vacuum ports
- Count verification and rejection
- Stainless steel construction
- 50 job memory capacity
- Quick and simple change over

Tablet/capsule/soft gel width/diameter: 1/8" - 3/4"
Tablet/capsule/soft gel length: 1/8" - 1-3/16"
Bottle height: 1-1/2" - 7-3/4"
Bottle diameter: 3/4" - 4"
Capacity: Up to 55 bottles per minute on a 100 count fill

New CVC (Cremer) model 1620 High Speed Electronic Channel Counter
- 16 channels, each with an infrared sensor
- Can be set up to run one bottle using all 16 channels, or two bottles using 8 channels
- Touch screen PC terminal
- Infeed and outfeed track sensors
- Auto dust compensation with dual vacuum ports
- Count verification and rejection
- Stainless steel construction
- 50 job memory capacity
- Quick and simple change over

Tablet/capsule/soft gel width/diameter: 1/8" - 3/4"
Tablet/capsule soft gel length: 1/8" - 1-3/16"
Bottle height: 1-1/" - 7-3/4"
Bottle diameter: 3/4" - 4"
Capacity:
- Single bottle - up to 70 bottles per minute on a 100 count fill
- Double bottle - up to 100 bottles per minute on a 90 count fill

New CVC 100 Pressure Sensitive Labeler
- Rated at 105’ of label per minute
- Labelset system auto system
- Die cast labeling heads
- Label and product sensors
- Stainless steel construction
- Stepper motor drives for: label feed
- Mounted on portable stand
- Upgradable for future hot stamp install
- Vertical and horizontal adjustability
- Stepper motor drive

New CVC model 1103 Pouch Desiccant Inserter
- Stainless steel
- Cuts desiccant packets from a roll and inserts
- PLC driven & servo motor conrolled with 6" touchscreen terminal
- 10 job memory capacity
- Interlocked safety shield
- 1 - 5 pouch insertions per bottle
- Single phase, 50/60 cycles, 220 volts
- Up to 120 bottles/minute
- Pouch length: 1-3/16" - 2-3/8"
- Pouch width: 5/8" - 1"
- Bottle diameter: 1-1/4" - 4-1/4"
- Bottle height: 2" - 7-3/4"
- Bottle opening: 1" - 4-1/4"

New CVC model 1117 Cottoner
- Stainless steel
- Works with cotton polyester and rayon
- PLC driven & servo motor controlled with 6" touchscreen terminal
- 10 job memory capacity
- Interlocked safety shield
- Optional missing cotton reject system
- On casters with easy height adjustment
- Single phase, 50/60 cycles, 220 volts
- Up to 60 bottles/minute
- Strip length: 2-1/4" - 6"
- Bottle diameter: 1-1/4" - 4-1/4"
- Bottle height: 2" - 8-1/2"
- Bottle opening: 1" - 2"

New CVC model 1117-2 Dual Head Cottoner
- 2 cottoners mounted on a single frame
- Stainless steel
- Works with cotton, polyester and rayon
- PLC driven & servo motor controled with 6" touchscreen terminal
- 10 job memory capacity
- Interlocked safety shield
- Optional missing cotton reject system
- On casters with easy height adjustment
- Single pase, 50/60 cycles, 220 volts
- Up to 120 bottles/minute
- Strip length: 2-1/4" - 6"
- Bottle diameter: 1-1/4" - 4-1/4"
- Bottle height: 2" - 8-1/2"
- Bottle opening: 1" - 2"

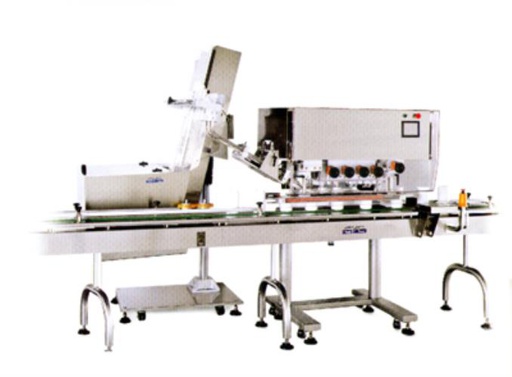

New CVC model 1205 Capper With Cap Elevator
New CVC model 1205 8-spindle stainless steel capper mounted over a 14-ft sanitary platform chain conveyor, and with v shaped 9.1 cubic foot cap hopper elevator. This PLC controlled capper has an adjustable cap chute for running different sized caps without the need for change parts and has an inspection system for removing incorrectly oriented caps.
Optional rejection system for improperly capped bottles and/or missing foil cap liner available at additional charge.

- Stainless steel
- 8 spindles
- Siemens PLC controlled with 6" touch screen panel
- 9.1 cubic foot cap hopper elevator
- Adjustable cap chute
- Single phase, 50/60 cycles, 220 volts
- Up to 120 bottles per minute
- Cap diameter: 25 – 108mm
- Cap height: 13-19mm
- Bottle diameter: 32 – 114mm (190mm with a 6" conveyor)
- Bottle height: 51 – 216mm
