Used Equipment - Buy Heat Exchangers

Union Machinery distributes Used Equipment worldwide. Buy from our comprehensive range of Heat Exchangers commonly used in confectionery, pharmaceutical, cosmetic, food, bakery, chemical, packaging, and allied industries. We supply innovative Heat Exchangers Used Equipment that meets the requirements of our customers. We offer a variety of Processing Machinery worldwide ensuring your machine has a long and productive life.

Heat Exchangers

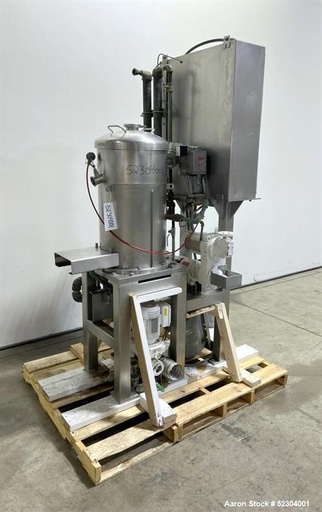

Groen Model DR18 Heat Exchanger
Groen Model DR18 Scraped Surface Heat Exchanger
- Used to cook caramel
- Built new in 1988
- Serial number 131214
- Up to 500lbs of caramel per hour
- 12" diameter x 18" long tube
- 304 stainless steel
- Agitator
- Heat surface area approx. 9.5 square feet
- (3) scrapers
- Internal rating 120psi at 353F
- Cover with 2.75" opening
- 2" outlet
- Main drive 1HP 3/60/230-460v
- Waukesha Model 3 pump
- Pump motor 0.75HP 3/60/230-460v
- Blower
- Control panel

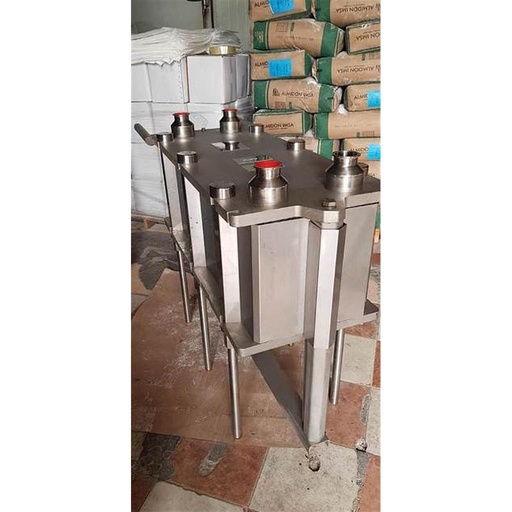

New APV Model PHE Stainless Steel Plate Heat Exchanger
New APV Model PHE Stainless Steel Plate Heat Exchanger
- 126 stainless steel plates
- 35” long x 19” wide x 62” high plates dimensions
- 2 ½” inlet & outlet
- 10 °C minimum temperature design
- 90 °C maximum temperature design
- 10 bar pressure design
- 14 bar pressure test

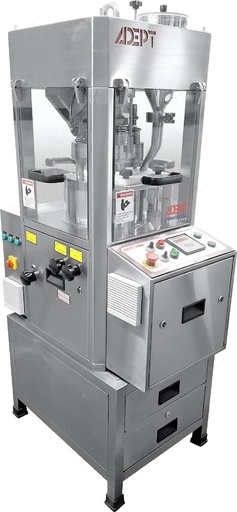

New Adept ATR B 10 Station Tablet Press
New Adept ATR B 10 Station Tablet Press
- 10 Stations
- B Tooling
- GMP
- Pre-compression
- 3 HP motor to meet your eletrical requirements
- Output: up to 18,000 tablets/hr
- Maximum tablet diameter: 18.5 mm
- Maximum depth of fill: 18 mm
- Maximum operating pressure: 6 tons
- Machine dimensions: 63 x 86 x 120 cms
- Machine weight: 450 kgs
Optional stainless steel table with 2 drawers with locks: $1,500.00
Vac-U-Max powder conveyor
Vac-U-Max powder conveyor
- 4 ½" inlet
- 12" discharge diameter
- With vacuum pump
- 7.5 HP, 3 phase, 60 cycles, 230-460 volts motor
