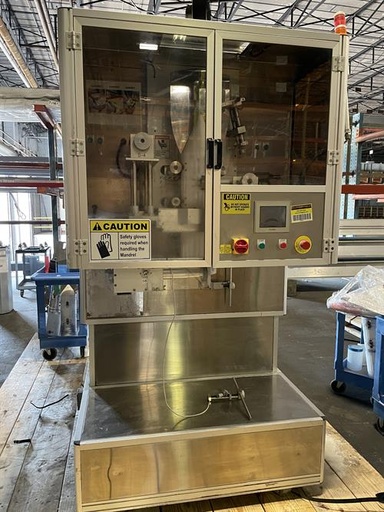

NAFM Model LX-300XL Shrink Sleeve Applicator
- Dual roll film unwinder
- Includes tooling for 5-1/8", 6" and 8-1/8" round mandrels
- Film Thickness: 0.035mm - 0.07mm
- Film Lay Flat width: 250 mm - 370 mm
- Cut Length: 100 mm to 400 mm
- Applied materials: OPS, PVC, PET
- For round containers only
- Output: Up to 150/minute
- 3/60/480v
- Serial#22N094110500102 built 2005

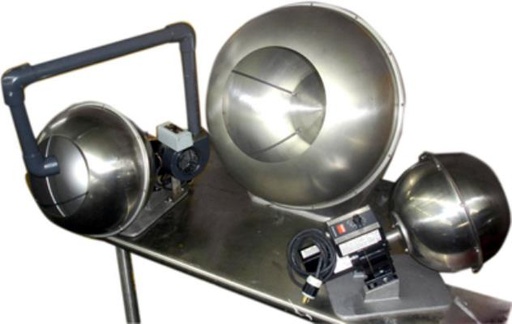

NATIONAL EQUIPMENT 12", 16" & 24" COATING PANS

National Equipment 12" diameter stainless steel coating pan
- 10" deep bowl
- 7-1/2" opening
- Variable speed drive with controller (0-34 RPM)
- 110 volts
- Batch size: approximately 8 lbs of chocolate coated peanuts


National Equipment 16" diameter stainless steel coating pan
- 12" deep bowl
- 9" opening
- Variable speed drive with controller (0-31 RPM)
- 110 volts
- Batch size: approximately 15 lbs of chocolate coated peanuts


National Equipment 24" diameter stainless steel coating pan
- 17" deep bowl
- 12-3/4" opening
- Variable speed drive with controller (0-31 RPM)
- 110 volts
- Batch size: approximately 35 lbs of chocolate coated peanuts


12" diameter pan with smooth bowl and motor with variable speed drive and controller:

12" diameter pan with ribbed bowl and motor with variable speed drive and controller:

16" diameter pan with smooth bowl and motor with variable speed drive and controller:

16" diameter pan with ribbed bowl and motor with variable speed drive and controller:

24" diameter pan with smooth bowl and motor with variable speed drive and controller:

24" diameter pan with ribbed bowl and motor with variable speed drive and controller:

12" extra bowl without ribs with mounting flange.

12" extra bowl with ribs and mounting flange.

16" extra bowl without ribs with mounting flange.

16" extra bowl with ribs and mounting flange.

24" extra bowl without ribs with mounting flange.

24" extra bowl with ribs and mounting flange.

Ambient blower.

Hot air blower (can be used as ambient blower as well) with 2 settings – 105 & 140 F.

Hand spray system with 1 gallon stainless steel tank

220 volt transformer

Thousands of these pans are presently being used in labs and in production by confectionery, cannabis, edibles, gummies, gummy candy, pharmaceutical, food, nutraceutical and snack companies worldwide.

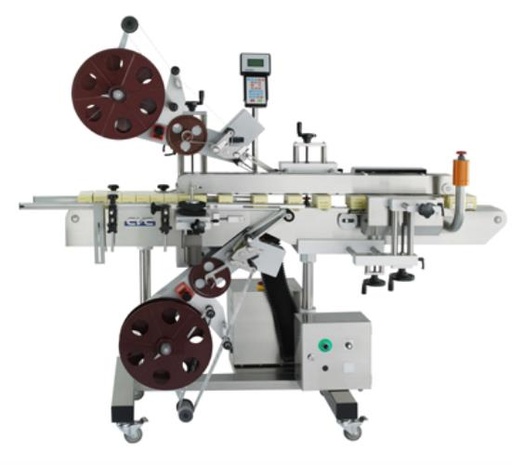

NEW CVC model 230A-2 automatic tamper evident carton labeler for placing tamper evident seals on the closure corners of cartons
- (2) labeling heads
- Top hold down belt
- Wipe down brush
- Mounted on a 73" long stainless steel conveyor.
- Speed: Up to 200/minute
- Carton length: 50 - 160mm
- Carton width: 20 - 100mm
- Carton height: 1 - 100mm
- Label length: 10 - 30mm
- Label width: 16 - 30mm

CLICK LINK FOR VIDEO:
http://www.youtube.com/watch?v=zNy1hBBzXAE&list=UU3JKwphnuYLGQYFyamofIDw&index=1&feature=plcp

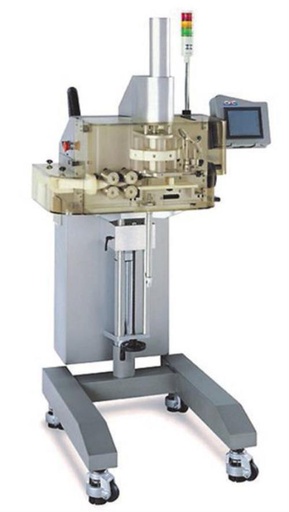

New CVC model 1117 Cottoner
- Stainless steel
- Works with cotton polyester and rayon
- PLC driven & servo motor controlled with 6" touchscreen terminal
- 10 job memory capacity
- Interlocked safety shield
- Optional missing cotton reject system
- On casters with easy height adjustment
- Single phase, 50/60 cycles, 220 volts
- Up to 60 bottles/minute
- Strip length: 2-1/4" - 6"
- Bottle diameter: 1-1/4" - 4-1/4"
- Bottle height: 2" - 8-1/2"
- Bottle opening: 1" - 2"
