Used Equipment - Buy Chocolate Melters

Union Machinery distributes Used Equipment worldwide. Buy from our comprehensive range of Chocolate Melters commonly used in confectionery, pharmaceutical, cosmetic, food, bakery, chemical, packaging, and allied industries. We supply innovative Chocolate Melters Used Equipment that meets the requirements of our customers. We offer a variety of Processing Machinery worldwide ensuring your machine has a long and productive life.

Chocolate Melters

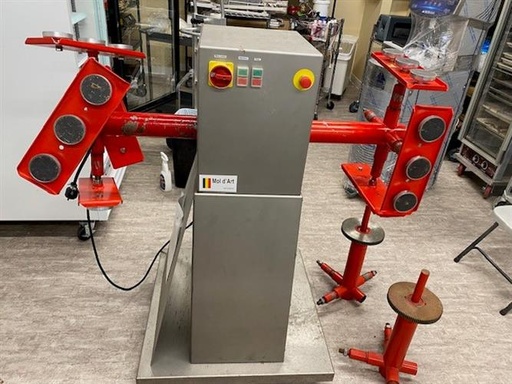

Mol D'art Twin Head Mold Spinner
Mol D'art Twin Head Mold Spinner
- Built new in 2011
- Serial number 1309006
- Magnetic heads
- One side needs new bearings
- 1/60/230v
New Tinsley 200/200lb over and under stainless steel water jacketed chocolate melters - 200lb/200lb
New Tinsley 200/200lb over and under stainless steel water jacketed chocolate melters
Both melters driven by one bottom mounted drive motor. Each tank has its own electric heater and digital thermostat.
Motor 3/60/220v

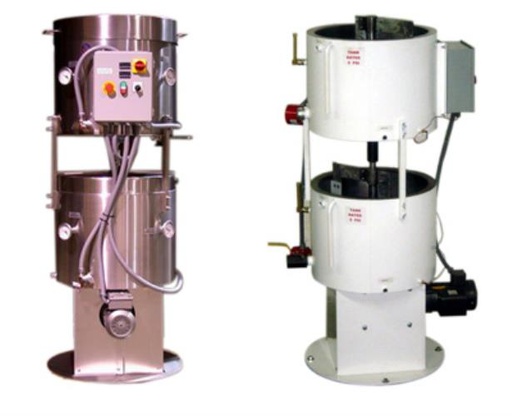

New Tinsley 500/500lb over and under stainless steel water jacketed chocolate melters - 500/500lb
New Tinsley 500/500lb over and under stainless steel water jacketed chocolate melters
Both melters driven by one bottom mounted drive motor. Each tank has its own electric heater and digital thermostat.
Motor 3/60/220v

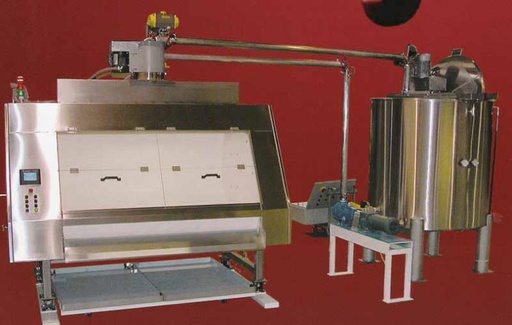

New Tinsley 60" Belt Coater
NEW TINSLEY BELT COATERS 60"
Tinsley 60" Chocolate Belt Coaters.

This belt coater is constructed completely of stainless steel with a food grade polypropylene belt and sidewalls. Using a heated top scraper to return maximum of the chocolate from the belt surface back into the processed product.

60" coater: 300 to 600 lbs/hr

Includes the following:

· Intralox Series 800 mat top belting and complete with all necessary UHMWP carry-way support wear strips. Driven by a 3 HP motor, 1750 RPM, complete with the gearbox for a final output
of 76 RPM, or a linear belt speed of up to 200-FPM max. Drive motor controlled via variable frequency speed controller for belt speed adjustment from 0 - 200 FPM. This will allow for excellent product tumble and uniform product coating at its proper belt speed for the different products.
The chocolate feed will be controlled by a variable speed water-jacketed chocolate pump feeding directly into a center fed water-jacketed drip manifold. The drip nozzles of 3-mm diameter will be on 2" centers,
Allowing for a good chocolate feed for uniform product coating. This coater will be equipped with 27 drip nozzles. Manifold is secured in place with sanitary fittings for easy removal and cleaning. It includes a self-contained heating system with adjustable immersion heater and circulating pump.

· To prevent product traveling with the belt, an electrically heated scraping/retaining bar spaced about 1/16" from the belt surface will scrape the product off the belt and drop it down to the other product area for reuse and processing. This will minimize chocolate waste.

· A final belt surface scraper bar will be installed against the bottom of the belt to remove any excess chocolate from the belt surface. This chocolate will be collected within the easy removable collecting pan for reuse and return to the melting tank. This trolley assembly with the collecting pans will be floor supported, therefore not affect the load cells.

· An interior light will light up the product processing area for easy inspection during the processing.

· Lexan front doors will allow for easy product access and inspection.

· Basic machine with manual controls and wired for 230 Volts, 3 Ph., 60 Hz., with main disconnect

· Machine size and weight:

60" Belt Coater - 91" long x 76" deep x 86" height; about 3,000 pounds

Electrical and control features:

1. Nema 12 Electrical Enclosure mounted on hinges for rear access to machine. (Panel can be Lockout tag out main disconnect. (Fused with low peak Type J fuses.)
2. Main MCR for E-stop circuit.
3. Allen Bradley PLC with Ethernet communication to display. (This feature allows easy interfacing with a SCADE information or control system.)
4. Color 6 in touch screen with Ethernet IP communications.
5. Allen Bradley Power Flex 4 drive with display.
6. Circuit breakers for control wiring and power protection.
7. Stack light to show status of machine and completion of batch cycle.
8. Load cell control is a four channel input controller.
9. No electrical custom design parts .(Replacements parts should be locally available)
10.Maintenance screens in display for manual operation of all electrical devices.
11. On the fly recipes adjustment.
12. Watch screen to monitor cycle position. (See what step you are on how much time is left.)
13. Displays Current weight on display.
14. Adjustable run and unload speeds.
15 Tare button to zero out load cells.
16. Spray system controls can be tested offline so that setup can be accomplished without wasting product.

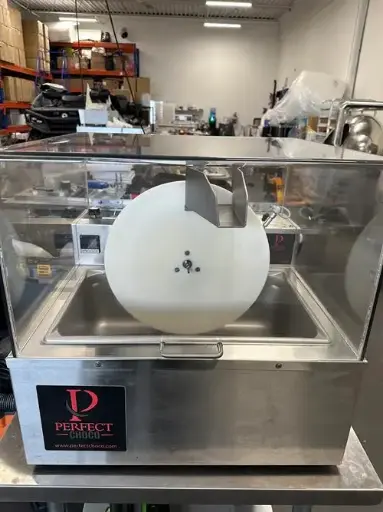

Perfect Air-2 Tempering Machine
Perfect Air-2 Tempering Machine
- 45-lb tank
- Serial#050213
- 110 volts, 10 amps
- Heated tank with digital thermostat
- Wheel with funnel
- On casters
- Packing $600.00
Savage 125 -lb Stainless Steel Chocolate Melter
Savage 125 -lb Stainless Steel Chocolate Melter
- Model 125 Conditioner, serial#365 built 2000
- Stainless steel construction
- Water jacketed with electric immersion heater and digital thermostat
- Melting timer
- 1/8 HP, Single phase, 115 volts, 14 RPM, 10 amps
Savage 125lb SS Auto Tempering Melter
Savage 125lb SS Auto Tempering Melter
- Built new in 2014
- Model number 0912-60
- Serial number 09-3996
- Stainless steel
- PLC touchscreen
- Auto tempering controls
- Jacketed
- Agitated
- Casters
- 1/60/115v
- 12 AMPS

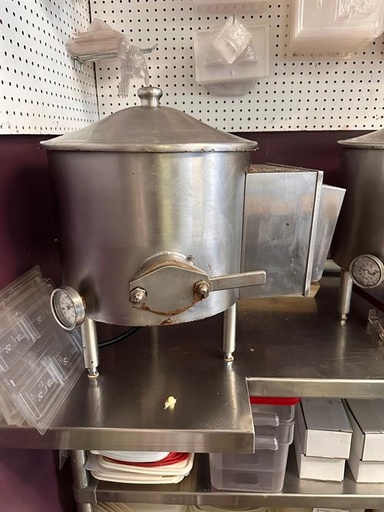

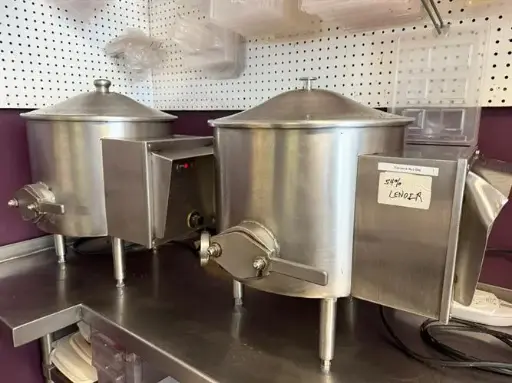

Savage 50-lb Stainless Steel Chocolate Melter
Savage 50-lb Stainless Steel Chocolate Melter
- Model CM50, serial#280
- 1/8 HP, Single phase, 60 cycle, 115 volts, 900 watt heater, 7 amps, 9 RPM motor
- Stainless steel
- Jacketed
- Electric heater with thermostat
- Table top
- Cover
Savi model Boudineuse duplex sous vide 150/150 stainless steel extruder
Savi model Boudineuse duplex sous vide 150/150 stainless steel extruder
- Hopper
- 5” top screw
- 5” bottom screw
- 5 HP, 3 Phase, 60 Hertz, 220 volt motor

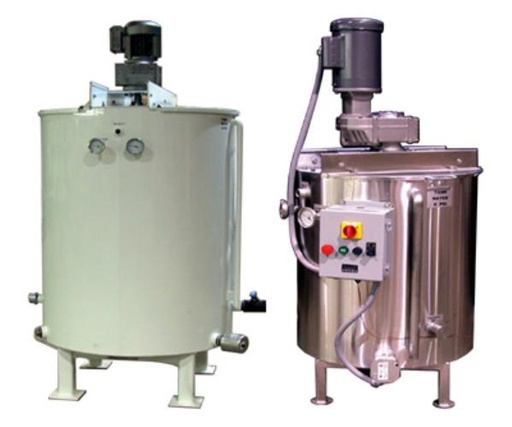

Tinsley Chocolate Melter, 100 - 20,000 lbs
Tinsley Chocolate Melter, 100 - 20,000 lbs.
New chocolate tanks in sizes from 100 to 20,000 lbs. in either carbon or stainless steel with electric immersion heaters and thermostats for water jacket. Temperature gauges for water and chocolate. Agitators with motor voltage to suit customers’ requirements. Other sizes are available upon request. Tanks are quoted with electrical starter boxes with on/off controls.

New Tinsley Stock Chocolate Melting/Holding Tanks with 3/60/220v electricals:

100lb stainless steel bottom drive
300lb stainless steel bottom drive
500lb stainless steel top drive
1,000lb stainless steel top drive
2,000lb stainless steel top drive
3,000lb stainless steel top drive
4,000lb stainless steel top drive
5,000lb stainless steel top drive

New Tinsley Non-Stock Chocolate Melting/Holding Tanks Made per Order:

500lb carbon steel top drive
500lb stainless steel bottom drive
1,000lb carbon steel top drive
1,000lb carbon steel bottom drive
1,000lb stainless steel bottom drive
1,300lb stainless steel top drive
2,000lb carbon steel top drive
2,000lb carbon steel bottom drive
2,000lb stainless steel bottom drive
2,000lb stainless steel top drive low profile
3,000lb carbon steel top drive
5,000lb carbon steel top drive
5,000lb horizontal stainless steel
7,500lb carbon steel top drive
7,500lb stainless steel top drive
10,000lb carbon steel top drive
10,000lb stainless steel top drive
20,000lb stainless steel top drive

Options:

Sanitary fittings threaded onto NPT pipe
UL approval on electrical panel
Lid interlock addition per side
Day-Night electrical controls
Stack light for agitator
Stainless steel electrical panel for standard size box
Upgrade to 480v electricals/panel
Water circulation pump with piping for 220v
Water circulation pump with piping for 115v or 480v
VFD for agitator or chocolate pump
Allen Bradley VFD for agitator or chocolate pump
Additional 3kW heater for 1000lb, 2000lb or 3000lb tanks
Upgrade 3kW heater to 4kW heater on 1000lb, 2000lb or 3000lb tanks
Upgrade 3kW heater to 4kW heater on 4000lb or 5000lb tanks
Allen Bradley controllers
Replace hinged lid with fixed lid
Load cells with carbon steel mounts
Upgrade carbon steel load cell mounts to stainless steel
Load cells summing board
Upcharge for customizing tank dimensions
Upcharge for customizing location of stock tank inlets/outlets
Upcharge for tank insulation for 5000lb and smaller tanks is 20% of tank price
Chocolate pump 1.5" in/out with jacketed head
Used Tinsley 5000lb Carbon Steel Chocolate Tank
Used Tinsley 5000lb Carbon Steel Chocolate Tank
- Built new in 2013
- Serial number 13-9295
- Agitator
- Water jacket with electric heaters
- 2" side discharge ports
- (1) with ball valve (1) capped
- 2" center bottom discharge
- Dished bottom
- 3HP 3/60/220v motor
WELCH 2534B-01A VACUUM PUMP WITH 2 PRESSURE GAUGES
Welch 2534B-01A Vacuum Pump with 2 Pressure Gauges
- Welch vacuum pump with 2 gauges 2534B-01A
- 115V, 1A,
