Used Equipment - Buy Chocolate Depositors

Union Machinery distributes Used Equipment worldwide. Buy from our comprehensive range of Chocolate Depositors commonly used in confectionery, pharmaceutical, cosmetic, food, bakery, chemical, packaging, and allied industries. We supply innovative Chocolate Depositors Used Equipment that meets the requirements of our customers. We offer a variety of Processing Machinery worldwide ensuring your machine has a long and productive life.

Chocolate Depositors

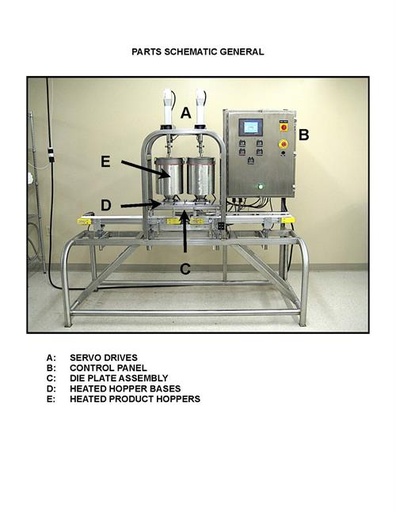

Bottom Line Process Technologies One Shot Depositor Servo Driven
Bottom Line Process Technologies One Shot Depositor Servo Driven
- Custom built servo depositor
- (2) Independently controlled servo-actuated depositors
- (2) Hopper assemblies
- One shot die for depositing one item per stroke
- Indexing conveyor for mold trays
- Independent temperature controls for each hopper, pump head and die assembly
- Manual and drawings available
- Used to produce peanut butter cups and molded hard candy

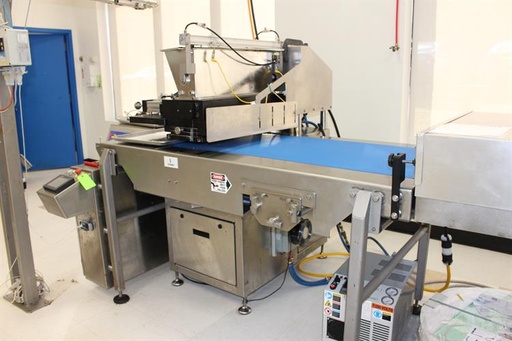

Egan 600 Chocolate Drop Depositing Line
Egan 600 Chocolate Drop Depositing Line
- 600mm depositing head
- Stainless steel water jacketed hopper
- Pump (2) rows of 30 pistons each 7 mm diameter
- Mocon hot water heating system
- Cooling tunnel 24" wide x 40-ft long
- 6-ft belt infeed and 4-ft outfeed belt
- Oceanaire air conditioning unit
- Produced solid chocolate chips
- (1) Nozzle plate for 1000CT chips 0.45g
- 900 chips per depositing stroke total 405g
- Line ran at 10 strokes per minute with belt speed 6.5 ' per minute
- Total output 535lbs/hr running 1000 CT chips

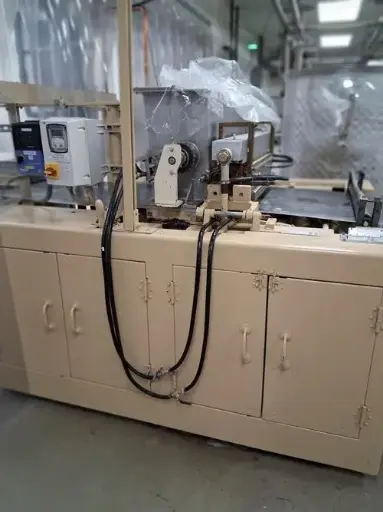

National Equipment 32" Chip Depositing Line
National Equipment 32" Chip Depositing Line
- Rebuilt in 2018
- Complete and in good running order
- 32" mechanical depositor
- Water jacketed hopper
- 4-row 20/19 staggered pump bar
- Pump bar with Wafer nozzles
- Steel band cooling tunnel
- 32" wide x 96' long
- Fan/Coil units
- Compressor
- Variable speed controls
Selmi 175 Mold Loader & Spin 500 Spiral Cooler
Selmi 175 Mold Loader & Spin 500 Spiral Cooler
- Selmi 175 Mold Loader
- 275 x 175 molds
- Serial number 131
- Built new in 2017
- Injection plate
- Vibration
- Mold feeding to tunnel
- 250 to 300 molds per hour
- $22,000 when new in 2017
- Selmi 500 Spin Spiral Cooler
- Serial number 103
- Built new in 2017
- Up to 120 mold capacity
- Compressor with Freon 404a
- 3/60/220v
- (120) polycarbonate molds 275 x 175
- Mold cavities are 123 x 66 x 12mm
- 1 x 3 configuration 103 gram bars
- https://www.chocolateworld.be/winkel/vormen/kadervormen/CW2049
- $53,000 when new in 2017
- Crating and loading $2,000
