PDC Series 65 Neck Banding & Shrink SLeeve Labeler
- Model 65-M, serial#246 built 1999
- Up to 200 containers/minute for banding
- Up to 175 containers/minute for shrink sleeving
- Band and sleeve diameter range: 10 to 83 mm
- Band and sleeve height range: 15 to 200 mm
- 1/2 HP, 90 volt DC motor

Palace Bottle Feeder
- 3" width x 12" long Belt Slat Conveyor
- 12" wide x 90" long x 100" high Conveyor
- Hopper with plastic cover
- 1/2 HP, 3 phase, 60 cycle, 220 volt motor

Patterson Kelley 1 Cu Ft stainless ssteel V blender -
- Intensifier bar provisions (no bar)
- With steel base on casters
- Plexiglass guard and control panel
- Maximum bulk density 60 lbs/Cu Ft
- (2) 12" diameter feed ports
- 6" diameter discharge
- Serial #275990

Patterson Kelley 10 Cu Ft stainless steel V Blender
- Plexiglass guards
- Explosion proof controls
- Provisions for intensifier bar (no bar)
Maximum bulk density: 70 lbs/Cu Ft,
(2) 17" diameter feed ports,
8" diameter discharge,
- Main motor 5 HP, 3 phase, 60 cycles, 208/220 volts -
- Intensifier bar motor: 1.5 HP, 3 phase, 60 cycles, 208/220 volt
- Serial #215088

Patterson Kelley 10 Cu Ft stainless steel V Blender on steel base
- (2) 18" diameter feed ports
- 6" diameter discharge
- 1HP, 3 phase, 60 cycles, 230/460 volts

Patterson Kelley 150 Cu Ft stainless steel V blender
- 2 charge covers
- Bottom outlet with valve
- Maximum bulk density: 85 lbs/Cu ft
- 20 HP, 3 phase, 60 cycle, 230-460 volt motor
- Serial #C426130

Patterson Kelley 16 quart V Blender
- 9.5" diameter x 16" deep sections
- 4" x 2" discharge
- Mounted on base
- 1/4 HP, 1 Phase, 60 cycles 115-230 volt motor
- Serial No. 0007660

Patterson Kelley 3 Cu Ft stainless steel V Blender with intensifier bar
- Steel base with plexiglass guards on casters
- Maximum bulk density 260 lbs /Cu Ft
- 15" diameter loading ports
- 6" diameter discharge valve (not complete - missing SS flapper)
- Main motor 5HP, 3 phase, 60 cycles, 230/460 volts
- Intensifier bar motor 1 HP, 3 phase, 60 cycles, 208-230/460 volts
- Serial #280590

Patterson Kelley 3 cu ft SS V blender with liquid/solids bar
- Bulk Density 60 lb/cuft
- Serial#211364

Patterson Kelley 60 cuft Stainless Steel V-Blender with Intensifier Bar
- Stainless steel construction
- Liquid-solids bar driven by 30-HP, 3 phase, 60 cycle, 230/460 volt motor
- Vessel driven by 10-HP, 3 phase, 60 cycle, 230/460 volt motor
- Overall height with discharge in down position = approximately 121" tall
- Overall heigh with discharge valve at 12 o'clock position - approximately 151"
- Footprint: 128" x 84"
- 12" diameter manually operated discharge valve - 16" from discharge to floor
- Knife switches for both motors
- Loading is included if shipped assembled

Patterson Kelley 75 Cu Ft stainless steel V blender
Maximum bulk density: 65 lbs/Cu Ft
- (2) 15" diameter feed ports
- 6.5" diameter discharge
- Serial #C133470

Patterson Kelley 8 Qt Stainless Steel V-Blender
- Stainless steel
- Shell 10" diameter x 15" long each
- (2) Top covers
- 1/2 HP, 110/220 volt Drive for Internsifer bar (without bar)
- 1/8 HP, 110/220 volt shell motor
- Botton outlet with slide valve
- Mounted in cabinet 40" x 30" x 36" tall with (2) plexiglass doors

Patterson Kelley 8 qt V-blender with plastic shell with intensifier bar
- Serial#LB-6667

Patterson Kelley model Liquids-solids 3 Cu Ft stainless steel V Blender with intensifier bar
- Maximum bulk density: 85 lb/Cu Ft
- (2) 16" diameter feed ports (missing covers)
- 6" diameter discharge
- Main motor: 3HP, 3 phase, 60 cycles, 230/460 volts
- Intensifier bar motor 3/4HP, 3 phase, 60 cycles, 230/460 volts
- Serial #213693

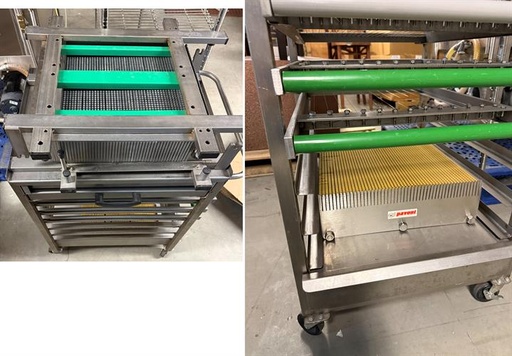

Pavoni Guitar Cutter
- 15mm and 30mm frames

Ross model HSM-410 inline high shear mixer
- 4" diameter stainless steel rotor/stator
- 2.5" diameter inlet
- 2" diameter outlet
- For applications with viscosities up to 20,000 cP
- Up to 240 gallons/minute
- AC Tech MC Series controller
- Mounted on cart with casters
- 10 HP, 3 phase, 60 cycles, 208/230 volt TEFC motor
- Serial #108634

Stainless Steel Oven
- 48” long x 28” wide x 65” high internal dimensions
- Includes 3 trays
- Electrically heated
- 1/2 HP, 3 Ph, 60 cycles, 230 Volt motor

Stainless Steel 500 liter ribbon blender
- 60" x 23" x 26" deep inside
- Cover
- Tilt discharge
- 3 HP, 3 Phase, 60 Hz, 220 volt motor

Stainless steel 50 gallon tank
-24" diameter x 26" deep
-With cover
-3” bottom center discharge
-Mounted on legs

Stainless steel screw conveyor
- 4" diameter x 145” long screw
- Mounted on base with casters
- 36” x 24” x 24” stainless steel hopper
- 1/2 HP, 1 phase, 60 cycles, 110 volt motor
