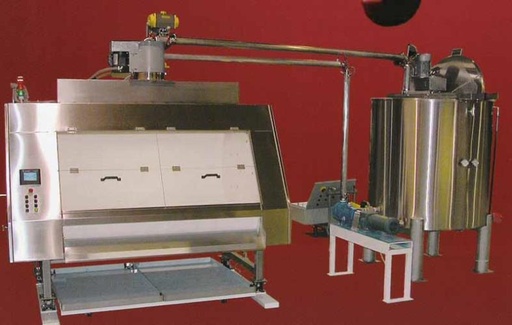

Tinsley 74" & 60" Belt Coaters

This belt coater is constructed completely of stainless steel with a food grade polypropylene belt and sidewalls. Using a heated top scraper to return maximum of the chocolate from the belt surface
back into the processed product.

74" coater: 600 to 800 lbs/hr
60" coater: 300 to 600 lbs/hr

Includes the following:

Intralox Series 800 mat top belting, 76" wide, and complete with all necessary UHMWP carry-way support wear strips. Driven by a 3 HP motor, 1750 RPM, complete with the gearbox for a final output
Of 76 RPM, or a linear belt speed of up to 200-FPM max. Drive motor controlled via variable frequency speed controller for belt speed adjustment from 0 - 200 FPM. This will allow for excellent product
tumble and uniform product coating at its proper belt speed for the different products.
The chocolate feed will be controlled by a variable speed water-jacketed chocolate pump feeding directly into a center fed water-jacketed drip manifold. The drip nozzles of 3-mm diameter will be
on 2" centers,
Allowing for a good chocolate feed for uniform product coating. This coater will be equipped with 35 drip nozzles. Manifold is secured in place with sanitary fittings for easy removal and cleaning.
It includes a self-contained heating system with adjustable immersion heater and circulating pump.

To prevent product traveling with the belt, an electrically heated scraping/retaining bar spaced about 1/16" from the belt surface will scrape the product off the belt and drop it down to the
other product area for reuse and processing. This will minimize chocolate waste.

A final belt surface scraper bar will be installed against the bottom of the belt to remove any excess chocolate from the belt surface. This chocolate will be collected within the easy removable
collecting pan for reuse and return to the melting tank. This trolley assembly with the collecting pans will be floor supported, therefore not affect the load cells.

· An interior light will light up the product processing area for easy inspection during the processing.

· Lexan front doors will allow for easy product access and inspection.

· Basic machine with manual controls and wired for 230 Volts, 3 Ph., 60 Hz., with main disconnect

· Machine size and weight:

74" Belt Coater - 105" long x 76" deep x 86" height; about 3,000 pounds
60" Belt Coater - 91" long x 76" deep x 86" height; about 3,000 pounds

Electrical and control features:

1. Nema 12 Electrical Enclosure mounted on hinges for rear access to machine. (Panel can be Lockout tag out main disconnect. (Fused with low peak Type J fuses.)
2. Main MCR for E-stop circuit.
3. Allen Bradley PLC with Ethernet communication to display. (This feature allows easy interfacing with a SCADE information or control system.)
4. Color 6 in touch screen with Ethernet IP communications.
5. Allen Bradley Power Flex 4 drive with display.
6. Circuit breakers for control wiring and power protection.
7. Stack light to show status of machine and completion of batch cycle.
8. Load cell control is a four channel input controller.
9. No electrical custom design parts .(Replacements parts should be locally available)
10.Maintenance screens in display for manual operation of all electrical devices.
11. On the fly recipes adjustment.
12. Watch screen to monitor cycle position. (See what step you are on how much time is left.)
13. Displays Current weight on display.
14. Adjustable run and unload speeds.15 Tare button to zero out load cells.
16. Spray system controls can be tested offline so that setup can be accomplished without wasting product.


- Tinsley 74" Belt Coater
- Tinsley 60" Belt Coater

Standard features include:

- Allen Bradley PLC with Color Touch Screen
- Load cells with programmed output
- Variable speed chocolate pump controller (pump sold separately)
- Dual rear exhaust fans
- Adjustable drip nozzles
- Wash down inlet blower and motor
- 3-way 1.5" solenoid controlled chocolate feed valve

Optional items:

- 3/60/480v power
- 1.5" mild steel gear head jacketed chocolate pump
- Remote stainless steel pedestal with 20' wire bundle
- UL approved panel
- Spray system with (3) heads
- Dual manifold with drip valves, programming
- Wash down tank heater for spray system

NEW TINSLEY BELT COATERS 74" Basic machine Manual Controls with 2000 CFM Blower
Tinsley 74" Chocolate Belt Coaters.

This belt coater is constructed completely of stainless steel with a food grade polypropylene belt and sidewalls. Using a heated top scraper to return maximum of the chocolate from the belt surface back into the processed product.

74" coater: 600 to 800 lbs/hr

Includes the following:

· Intralox Series 800 mat top belting and complete with all necessary UHMWP carry-way support wear strips. Driven by a 3 HP motor, 1750 RPM, complete with the gearbox for a final output
of 76 RPM, or a linear belt speed of up to 200-FPM max. Drive motor controlled via variable frequency speed controller for belt speed adjustment from 0 - 200 FPM. This will allow for excellent product tumble and uniform product coating at its proper belt speed for the different products.
The chocolate feed will be controlled by a variable speed water-jacketed chocolate pump feeding directly into a center fed water-jacketed drip manifold. The drip nozzles of 3-mm diameter will be on 2" centers,
Allowing for a good chocolate feed for uniform product coating. This coater will be equipped with 27 drip nozzles. Manifold is secured in place with sanitary fittings for easy removal and cleaning. It includes a self-contained heating system with adjustable immersion heater and circulating pump.

· To prevent product traveling with the belt, an electrically heated scraping/retaining bar spaced about 1/16" from the belt surface will scrape the product off the belt and drop it down to the other product area for reuse and processing. This will minimize chocolate waste.

· A final belt surface scraper bar will be installed against the bottom of the belt to remove any excess chocolate from the belt surface. This chocolate will be collected within the easy removable collecting pan for reuse and return to the melting tank. This trolley assembly with the collecting pans will be floor supported, therefore not affect the load cells.

· An interior light will light up the product processing area for easy inspection during the processing.

· Lexan front doors will allow for easy product access and inspection.

· Basic machine with manual controls and wired for 230 Volts, 3 Ph., 60 Hz., with main disconnect

· Machine size and weight:

74" Belt Coater - 105" long x 76" deep x 86" height; about 3,000 pounds

Electrical and control features:

1. Nema 12 Electrical Enclosure mounted on hinges for rear access to machine. (Panel can be Lockout tag out main disconnect. (Fused with low peak Type J fuses.)
2. Main MCR for E-stop circuit.
3. Allen Bradley PLC with Ethernet communication to display. (This feature allows easy interfacing with a SCADE information or control system.)
4. Color 6 in touch screen with Ethernet IP communications.
5. Allen Bradley Power Flex 4 drive with display.
6. Circuit breakers for control wiring and power protection.
7. Stack light to show status of machine and completion of batch cycle.
8. Load cell control is a four channel input controller.
9. No electrical custom design parts .(Replacements parts should be locally available)
10.Maintenance screens in display for manual operation of all electrical devices.
11. On the fly recipes adjustment.
12. Watch screen to monitor cycle position. (See what step you are on how much time is left.)
13. Displays Current weight on display.
14. Adjustable run and unload speeds.
15 Tare button to zero out load cells.
16. Spray system controls can be tested offline so that setup can be accomplished without wasting product.

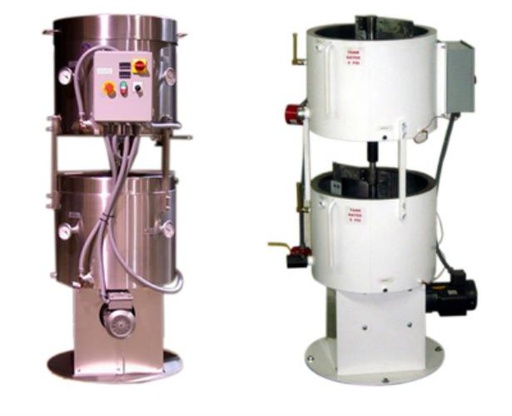

New Tinsley 750/750lb over and under stainless steel water jacketed chocolate melters
Both melters driven by one bottom mounted drive motor. Each tank has its own electric heater and digital thermostat.
Motor 3/60/220v

Pack Leader Pro-625 Front & Back Labeler
- Front and Back Pressure Sensitive Label heads
- Serial#00127PRO6250010312
- Flat top chain conveyor
- Top hold down belt
- 110 volts

Perfect Air-2 Tempering Machine
- 45-lb tank
- Serial#050213
- 110 volts, 10 amps
- Heated tank with digital thermostat
- Wheel with funnel
- On casters
- Packing $600.00

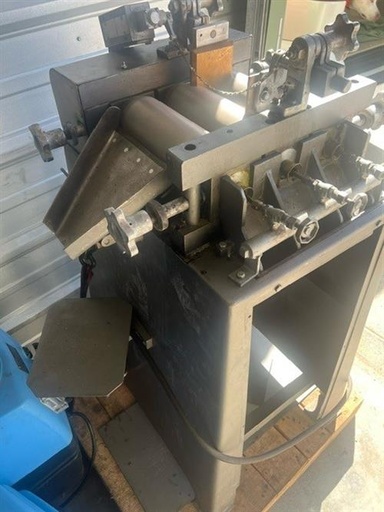

Ross 4" x 8" 3-Roll Refiner
- Serial#31895
- Hopper aprons
- Discharge chute
- Water jacketed rollers
- 3 phase, 220 volts

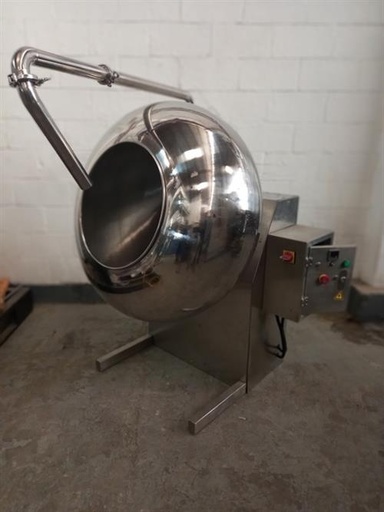

SaintyCo model SQY-1000 40" dia. coating pan
- Stainless steel
- Blower

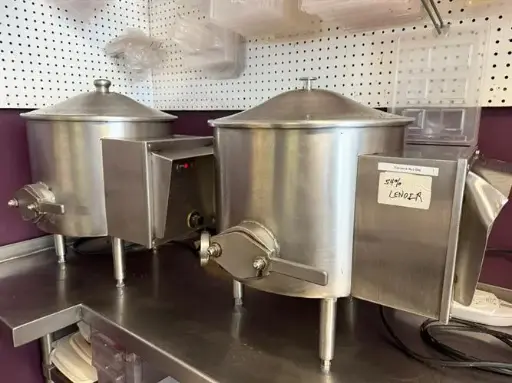

Savage 50-lb SS Chocolate Warmer
- Model 50CM, Serial#286
- NO agitation. Used for hand dipping.
- Stainless Steel
- Water jacketed
- Electric immersion heater and thermostat
- 115 volts,

Savage 50-lb SS Chocolate Warmer
- Model 50CM, serial#283
- NO AGITATION. Used for hand dipping
- Stainless Steel
- Water jacketed and agitated
- Electric immersion heater and thermostat
- 115 volts, 500 watt heater

Savi model Boudineuse duplex sous vide 150/150 stainless steel extruder
- Hopper
- 5” top screw
- 5” bottom screw
- 5 HP, 3 Phase, 60 Hertz, 220 volt motor

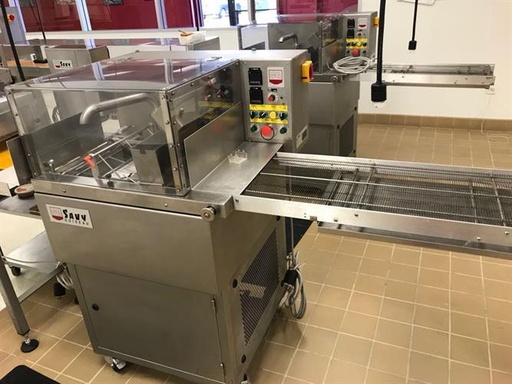

Savy Model XS300 Compound Bottomer
- Stainless steel
- 300mm belt
- Electrically heated tank
- Built new in 2008

Selmi Spider Spiral Cooling Conveyor
- Serial#107 built 2017
- 3 phase, 220 volts
- 114” x 52” x 85” tall and 2000 lbs
- Used only a few times. Shop close for business.

Selmi Spin 500 Cooling Tunnel w Mold Loader
- Selmi Spin 500 spiral cooling tunnel
- Built new in 2017
- Serial number 103
- Cooling tunnel 3/60/220v 16 AMPS
- Selmi 175 mold loader
- Built new in 2017
- Serial number 131
- Mold loader 1/60/220v 16 AMPS
- Includes 3-way valve and depositing plate
- Comes with 120 of Chocolate World Mold CW2049
- GOLVEND 103 Grams Tablet
- 3 bars/mold
- Bars measure 123mm x 66mm x 12mm thick
- Mold loader requires compressed air

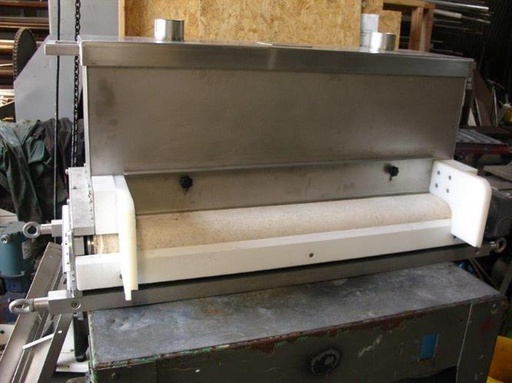

Sollich 42" Inclusion Feeder
- Stainless Steel Hopper
- 42.5" wide belt width (35.5" between the nylon guides)
- ½ HP, 3 phase, 60 cycle, 480 volt motor

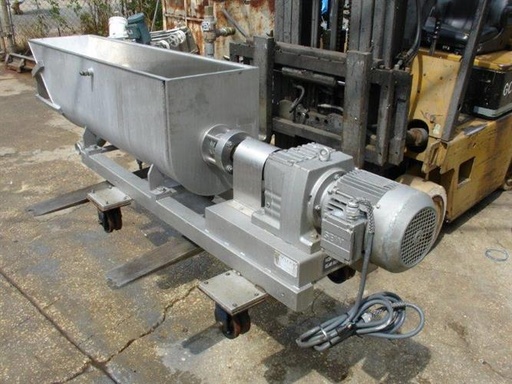

Sollich Auger/Mixing Screw
- 12" diameter x 44" long auger
- Stainless Steel jacketed trough
- 2 HP, 3 phase, 60 cycle, 277/460 volt motor

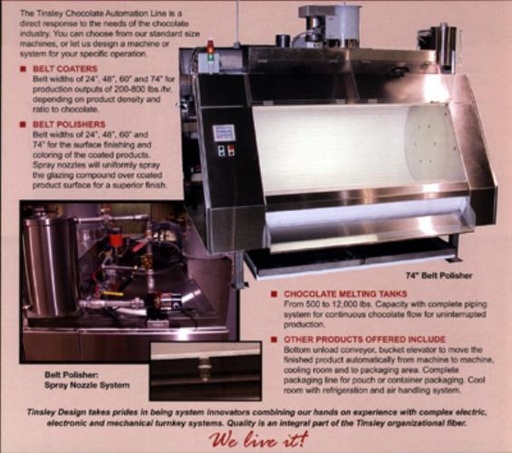

Tinsley Belt Polisher model # TDF-74P
:

This 74" belt polisher for a production output of 400 - 800 lbs./hour is constructed totally of stainless steel with a food grade polypropylene belt and sidewalls. Using a heated top scraper to return maximum of the chocolate from the belt surface back into the processed product.

Includes the following:
- Intralox Series 800 mat top belting with ribs, 76" wide, and complete with all necessary UHMWP carry-way support wear strips. Driven by a 3 HP motor, 1750 RPM, complete with the gearbox for a final output of 76 RPM, or a linear belt speed of up to 200-FPM max. Drive motor controlled via variable frequency speed controller for belt speed adjustment from 0 - 200 FPM. This will allow for excellent product tumble and uniform product polishing at its proper belt speed for the different products.

- The polishing liquid feed will be controlled by the solenoid rotating valve and through the spray nozzle manifold. The manifold will be hot water jacketed for good polishing liquid flow. The spray nozzles will be at approximately 15" centers, allowing a good & uniform product coating. This polisher will be equipped with 5 spray nozzles.

- A 5 gallon tank with piping and one pump for the polish & glazing feed will be included.

- To prevent product traveling with the belt, a retaining bar spaced about ¼" from the belt surface will scrape the product off the belt and drop it down to the other product area.

- An interior light will light up the product processing area for easy inspection during the processing.

- The air knife for cold air supply to cool & dry the product is designed to handle a typical 1700 CFM of cold air at 48 - 55 deg. F. External air chiller will be required. (Not included with machine.)

- An air / fume exhaust duct will be installed at the back side of the machine to remove any vapors from the polishing process. Air exhaust blower rated for 1700 CFM mounted on top of machine is included.

- Lexan front doors will allow for easy product access and inspection.

- Basic machine with PLC controls and wired for 480 Volts, 3 Ph., 60 Hz., with main disconnect

- Machine size and weight: 105" long x 76" deep x 86" height. Approximately 3,200 pounds total.

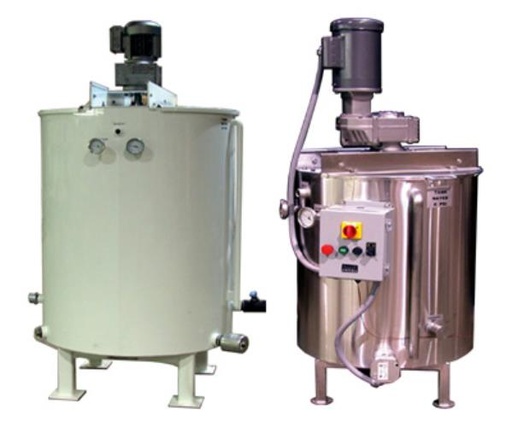

Tinsley Chocolate Melter, 100 - 20,000 lbs.
New chocolate tanks in sizes from 100 to 20,000 lbs. in either carbon or stainless steel with electric immersion heaters and thermostats for water jacket. Temperature gauges for water and chocolate. Agitators with motor voltage to suit customers’ requirements. Other sizes are available upon request. Tanks are quoted with electrical starter boxes with on/off controls.

New Tinsley Stock Chocolate Melting/Holding Tanks with 3/60/220v electricals:

100lb stainless steel bottom drive
300lb stainless steel bottom drive
500lb stainless steel top drive
1,000lb stainless steel top drive
2,000lb stainless steel top drive
3,000lb stainless steel top drive
4,000lb stainless steel top drive
5,000lb stainless steel top drive

New Tinsley Non-Stock Chocolate Melting/Holding Tanks Made per Order:

500lb carbon steel top drive
500lb stainless steel bottom drive
1,000lb carbon steel top drive
1,000lb carbon steel bottom drive
1,000lb stainless steel bottom drive
1,300lb stainless steel top drive
2,000lb carbon steel top drive
2,000lb carbon steel bottom drive
2,000lb stainless steel bottom drive
2,000lb stainless steel top drive low profile
3,000lb carbon steel top drive
5,000lb carbon steel top drive
5,000lb horizontal stainless steel
7,500lb carbon steel top drive
7,500lb stainless steel top drive
10,000lb carbon steel top drive
10,000lb stainless steel top drive
20,000lb stainless steel top drive

Options:

Sanitary fittings threaded onto NPT pipe
UL approval on electrical panel
Lid interlock addition per side
Day-Night electrical controls
Stack light for agitator
Stainless steel electrical panel for standard size box
Upgrade to 480v electricals/panel
Water circulation pump with piping for 220v
Water circulation pump with piping for 115v or 480v
VFD for agitator or chocolate pump
Allen Bradley VFD for agitator or chocolate pump
Additional 3kW heater for 1000lb, 2000lb or 3000lb tanks
Upgrade 3kW heater to 4kW heater on 1000lb, 2000lb or 3000lb tanks
Upgrade 3kW heater to 4kW heater on 4000lb or 5000lb tanks
Allen Bradley controllers
Replace hinged lid with fixed lid
Load cells with carbon steel mounts
Upgrade carbon steel load cell mounts to stainless steel
Load cells summing board
Upcharge for customizing tank dimensions
Upcharge for customizing location of stock tank inlets/outlets
Upcharge for tank insulation for 5000lb and smaller tanks is 20% of tank price
Chocolate pump 1.5" in/out with jacketed head

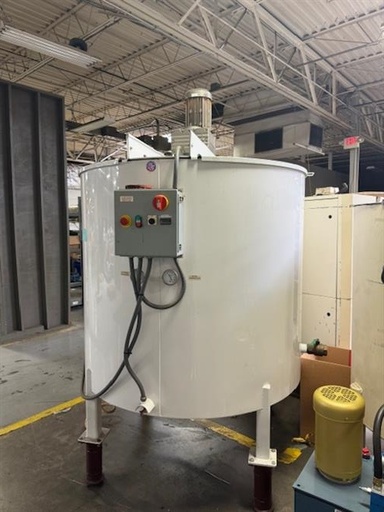

Used Tinsley 5000lb Carbon Steel Chocolate Tank
- Built new in 2013
- Serial number 13-9295
- Agitator
- Water jacket with electric heaters
- 2" side discharge ports
- (1) with ball valve (1) capped
- 2" center bottom discharge
- Dished bottom
- 3HP 3/60/220v motor

Used Tinsley Model TDF 74CD 74" Belt Coater
- Built new in 2017
- Serial number 17-6152
- Low run hours
- Dual manifold
- Drip system
- Load cells
- HMI with color display
- 2000 CFM ambient blower
- Pump controls for customer supplied pump
- 3/60/480v

VMI Rayneri model 331300P Turbotest Mixer -
- Speed control
- Single phase, 220 volts
