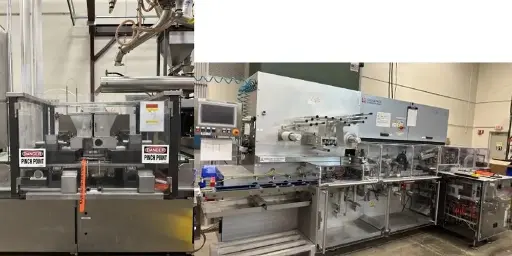

Imperial 600 x 225 One Shot Molding Plant with Loesch Bar Wrapper
Imperial 600 x 225 One Shot Molding Plant
- Built 2017 and commission in 2018
- Model 5C/225/600
- Solid/Inclusion/One shot capabilities
- 600 x 225 mold size (bar sizes: 146 x 70 x 8 mm and 146 x 70 x 12 mm)
- Up to 20 molds/minute
- Overall dimensions: 84 ft long x 12 ft x 9,5 ft tall
- Mold heater
- Depositor
-Two Stainless Steel Hoppers with variable speed agitator, two hot water circulation systems (one for each hopper)
- Servo driven for mold lift, piston strokes, speed and suck back for accurate weight control and center/shell ratio
- Mold circuit servo driven with continuous movement and control
- Vibration: Six independent stations each with variable speed controls, insulated doors and panels and alternate direction vibration cycles
- Cooling: Mild steel tubular frame painted with steel-it, with stainless steel insulated doors and panels (5 section cooler)
- Refrigeration: Tunnel to be supplied with direct expansion coils. The air blower supplied with the tunnel with circulate chilled air throughout the tunnel
- De-Molding: Includes both twisting and variable speed mold knocking with insulated and doors and panels
- Take-Away Conveyor: Separate independent servo drive for precisely matching the mold speed
- Control panels: Touch screen operator interface with Allen Bradley
- Voltage: 3 phase, 60 cycle, 460 volts
- Change parts Include
- Two piston blocks for inclusions
- Two depositing plates for inclusions with shut off knife
- One piston block for one shot
- One deposit plate for one shot
- Two SS water jacketed hoppers
- Automatic Inclusion Feeder Systems
- Stainless steel mixing auger with vibratory inclusion feeder
- Level sensing valves
- Vacuum refill unit with hose
- Mounts over depositor
- Closed tube auger (stainless steel water jacketed)
- Self contained water heating system
- Dry inclusion only
- Portable
Mettler Toledo Safeline Metal Detector
Loesch Lomatic/LTM-Duo Bar wrapper with Buffering Belt
- Built 2017 and installed 2018
- Fold wrap with paper laminated aluminum foil from reel and paper envelope from stack
- Change parts for cardboard overwrap included (Loesch setup service integration required)
- Change parts for two bars: 146 x 70 x 8 mm and 146 x 70 x 12 mm
- Nordson Pro Blue Series hot melt applicator
- Domino date coder
We can quote the Molding line and Loesch buffering/wrapping system separately.
Line is still installed and running through January 2027. It can be inspected in production.
