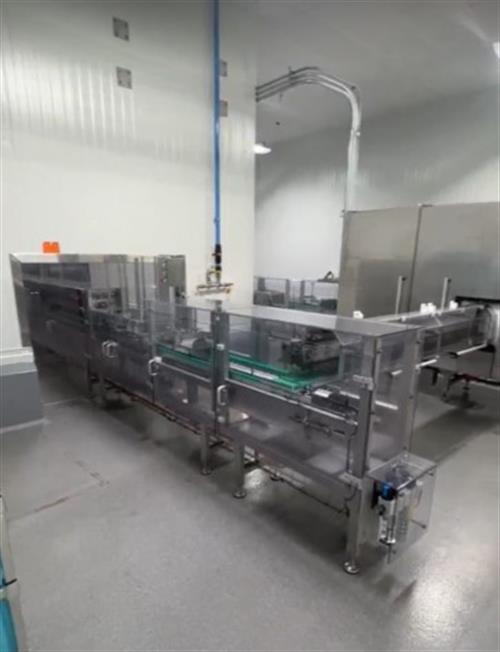

Carle Montanari OPM Nanoflex 275/205 Chocolate Molding line

Carle Montanari OPM Nanoflex 275/205 Chocolate Molding line
- 275 x 205 loose mold plant
- Rated at 15 molds/minute and 600 to 700 kg/hr depending on product
- One shot capable (One Split hopper included - one shot depositing plates required to make one shot)
- Inclusion Continuous mixer above depositor hopper with flex screw conveyor feeder
- Depositor
- Vibration section
- Cross conveyor
- Tower cooling tunnel 8+8
- Demoulding section
- Cross conveyor
- Mold heater with scraping roller
- Inspection station to check for clean mold. If not clean, it is rejected and new mold is inserted in the line via a mold magazine hopper
- Built 2016, serial#IPC16IM00009.2
- Overall dimensions: 60 x 30 x 12 ft tall
- 3 phase, 50/60 hz, 400 volts
Carle Montanari OPM 5,500 lb Stainless Steel Chocolate Tank
- Water jacketed and agitated
- Electrically heated with thermostat
- 60" diameter x 48" deep
- 3 phase, 60 cycles, 230 volts
Carle Montanari OPM 3,000 lb Stainless Steel Chocolate Tank
- Water jacketed and agitated
- Electrically heated with thermostat
- 48" diameter x 40" deep
- (2) Rotan chocolate pumps
(4) Industrial Frigo Thermoregulators
- Model: WTA 3/95/S/UL/X
- Mfg Date: 2016
- Line has been dismantled, partially skidded and ready to load out

Location: Ohio
Stock No: 84400
