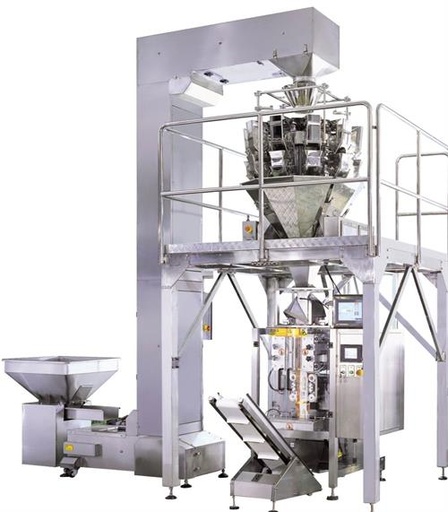

NEW Genesis Stainless Steel Form, Fill, Seal with 14-Head Scale
- Genesis Stainless Steel Bucket elevator with vibratory feeder with 2 liter buckets
5 cu/ft hopper with dimpled contact services
High level sensor controls for automatic start/stop
Automatic/manual controls
Dimpled 2 liter food grade plastic buckets
Stainless steel drive train
- Genesis Stainless Steel Platform for scale
Provides support and full access to the weigher and components
Stainless steel support frame
Solid welded construction
Aluminum decking attached with counter sunk screws
Stainless Steel Railing
One set of stainless steel stairs with safety rails
- High Dream Stainless Steel 14-head Dimpled Weigher
Model HDM-14-4-3-S
14 head scale with strain gauge load cell
14 feed buckets and 14 weigh buckets
All product handling parts dimpled
14 drive unit/weighing mechanism modules accurate to 0.1 gram
0 degree tilted linear pans
Vibratory center cone
Remote TFT color touchscreen display
100 product programs
Battery backup memory
- Genesis Stainless Steel Vertical Form, Fill and Seal Machine
Model VFFS-400
Horizontal Seal actuator
Laminated Bag Capabilities:
Width = 2” – 7”
Length = 2” – 9”(Longer w/ Multiple Pull)
Maximum Roll Size 12” Diameter x 14.5” W
Horizontal Seal Actuator Including High Speed Dual Servo Motor Drive
Vertical Seal Actuator with Quick Release Swing Arm
Stainless Steel Construction with Welded Frame Including Leveling Feet & Casters
Stainless Steel Electrical Cabinet
Auto Positioning Belts
Automatic Film Detection & Tracking
Servo-Driven Film Advance Feed Pull System with Motorized Assist and Automatic Centering Film Spindle
Film Unwind Carriage Including Quick Thread Dancer
Film Mark & Registration Detection System
Out of Film Detection
Film Registration Roller for Optional Printer
One Roll Unwind Spindle With 3-Inch Manual Core Chucks
Splice Plate
Jaw Jam & Knife Inhibit Safety Feature
Resistance Sealing System Includes: Knife Cutoff, 0.5” Wide Seal Jaw Faces (Horizontal Serrations Provide Tear Notches to Assist Opening), Adjustable
Jaw Open Position
Electrical & Pneumatic Safety Interlocks
Polycarbonate Front and Side Doors Electrically Interlocked
7” Color Touch Screen
Mitsubishi PLC Controls
- Genesis Stainless Steel Vertical Form, Fill and Seal Machine
Model VFFS-620
Horizontal Seal actuator
Laminated Bag Capabilities:
Width = 3.5" to 12”
Length = 2” – 15.75”(Longer w/ Multiple Pull)
Maximum Roll Size 15” Diameter x 24.5” W
Horizontal Seal Actuator Including High Speed Dual Servo Motor Drive
Vertical Seal Actuator with Quick Release Swing Arm
Stainless Steel Construction with Welded Frame Including Leveling Feet & Casters
Stainless Steel Electrical Cabinet
Auto Positioning Belts
Automatic Film Detection & Tracking
Servo-Driven Film Advance Feed Pull System with Motorized Assist and Automatic Centering Film Spindle
Film Unwind Carriage Including Quick Thread Dancer
Film Mark & Registration Detection System
Out of Film Detection
Film Registration Roller for Optional Printer
One Roll Unwind Spindle With 3-Inch Manual Core Chucks
Splice Plate
Jaw Jam & Knife Inhibit Safety Feature
Resistance Sealing System Includes: Knife Cutoff, 0.5” Wide Seal Jaw Faces (Horizontal Serrations Provide Tear Notches to Assist Opening), Adjustable
Jaw Open Position
Electrical & Pneumatic Safety Interlocks
Polycarbonate Front and Side Doors Electrically Interlocked
7” Color Touch Screen
Mitsubishi PLC Controls
- Genesis Stainless Steel Take-Away Conveyor
- Genesis Stainless Steel Collection Table
304 Stainless Steel Construction
47” Diameter
Concave Surface for Bags to Slide to Center
Allowing More Accumulation
No Pinch Points for Safer Operation
Variable Speed Operation
Maximum Load: 330 lbs
- Genesis Stainless Steel Fall Through Metal Detector
Stainless Steel Construction
Provides Signal to Stop Container Advancement Upon Metal Detection
Accuracy Up to 0.8mm FE (Product Dependent), 2.0mm SS and non-FE (Product Dependent)
100 Product Programs
User Friendly Remote Color Touch Screen
Battery Back Up
- Bucket elevator with Vibratory Feeder $26,900.00
- Platform $19,000.00
- 14 head scale $47,000.00
- VFFS 400 $41,000.00
-VFFS 620 $53,900.00
- Take-Away Conveyor $3,800.00
- Pass through Metal Detector $15,500.00
- Collection table $4,200.00
