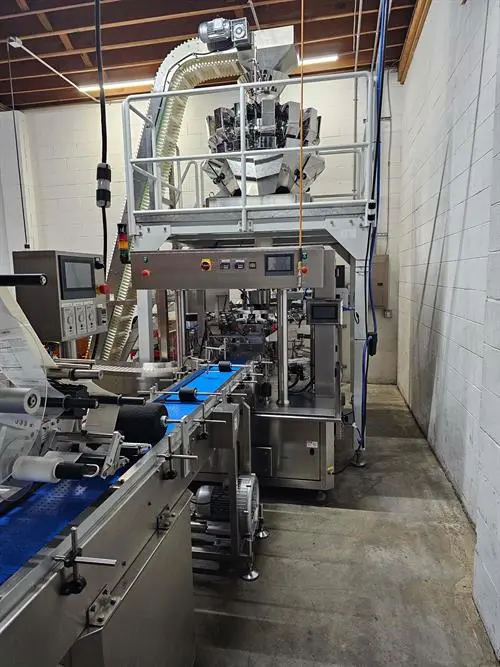

Shenzhen Ouya Industry Pre-made Pouch Machine with Scales

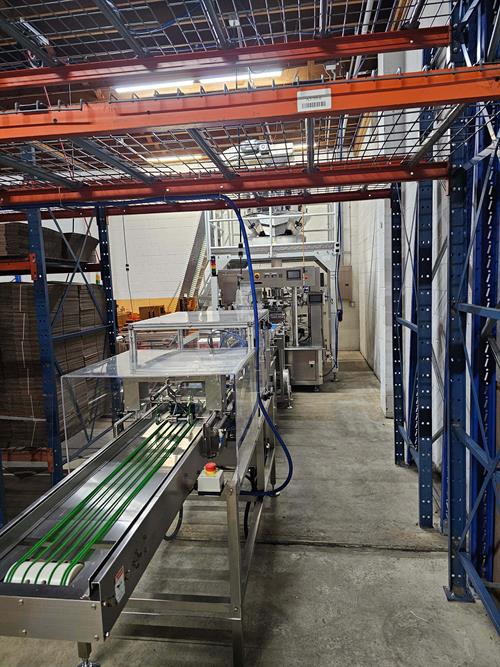

Shenzhen Ouya Industry Pre-made Pouch Machine with Scales
System built 2020

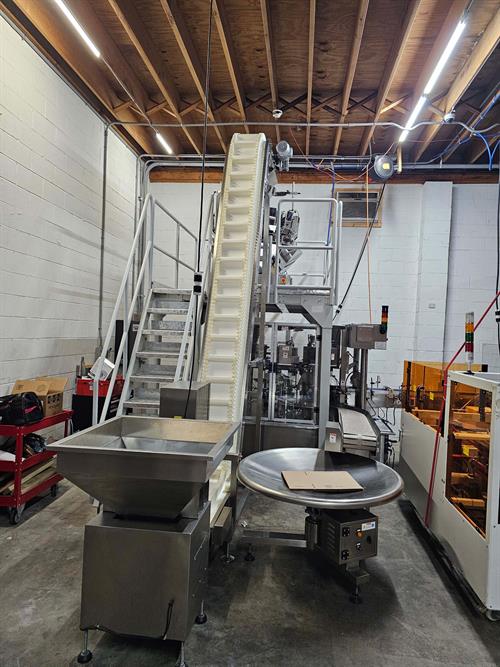

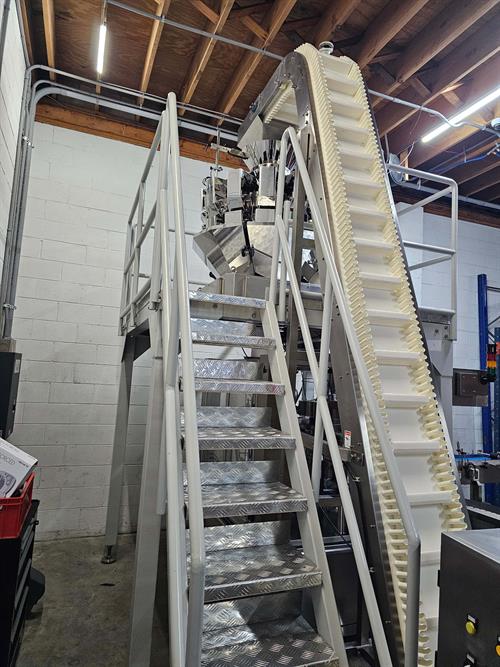

Inclined cleated elevator/feeder with stainless steel vibratory hopper

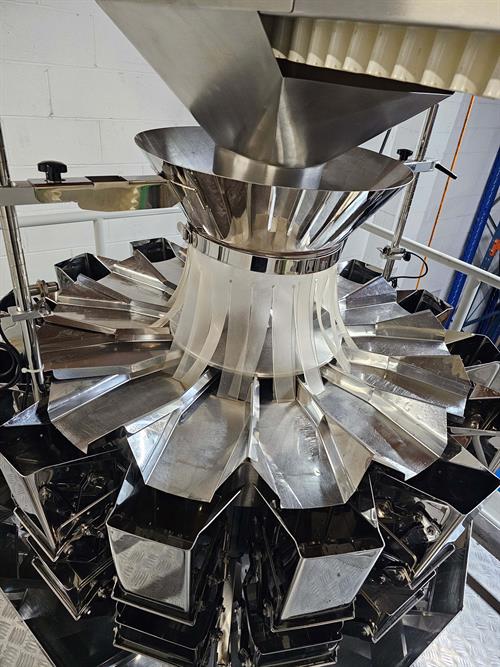

14-head Stainless Steel Combinational Weigher with Smooth Buckets
- 2.5 liter smooth buckets

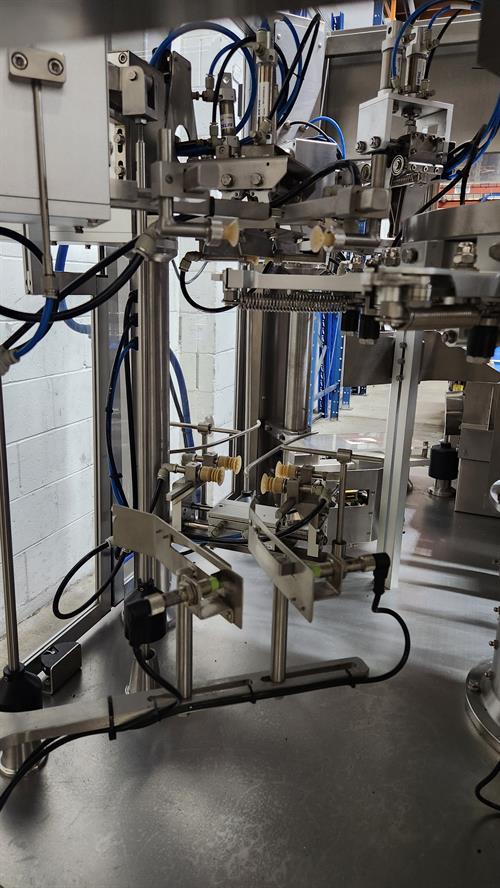

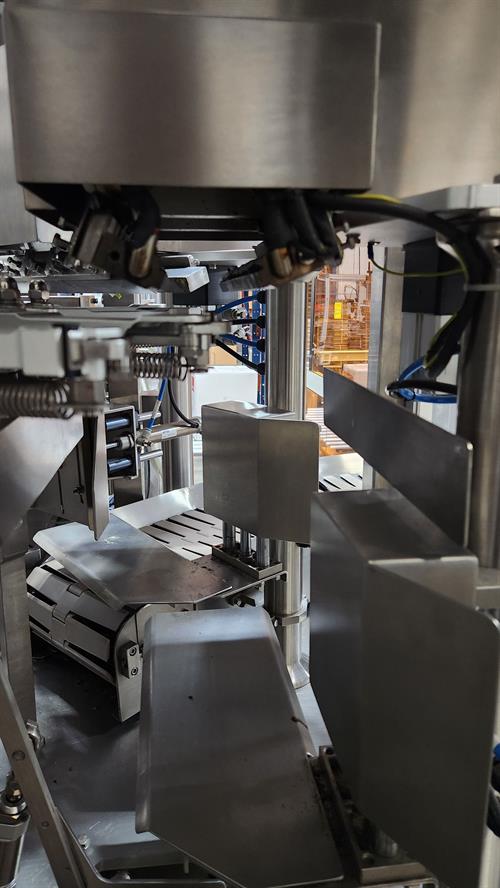

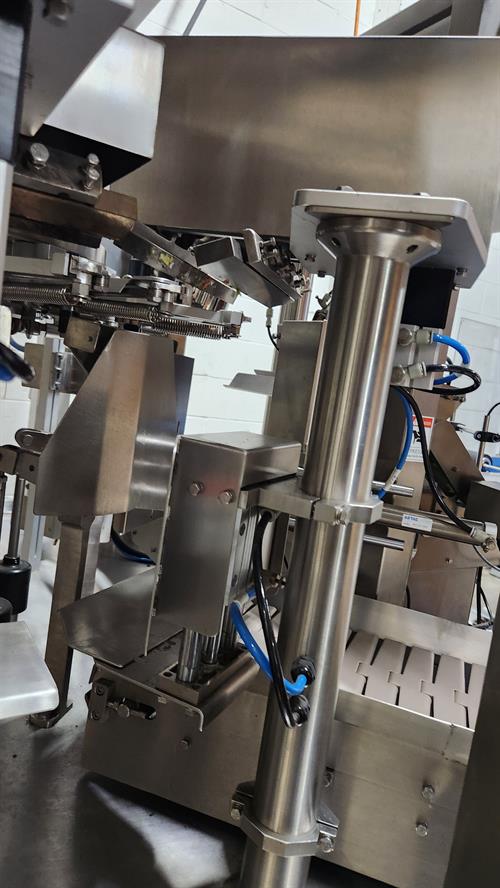

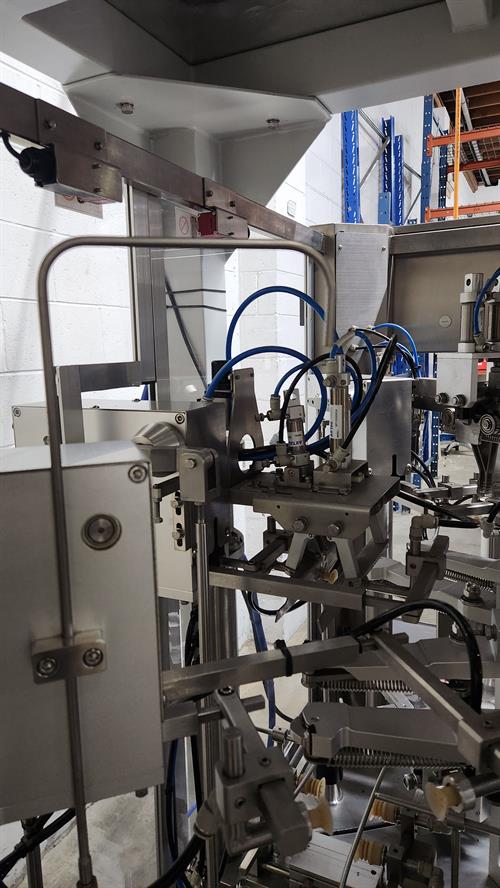

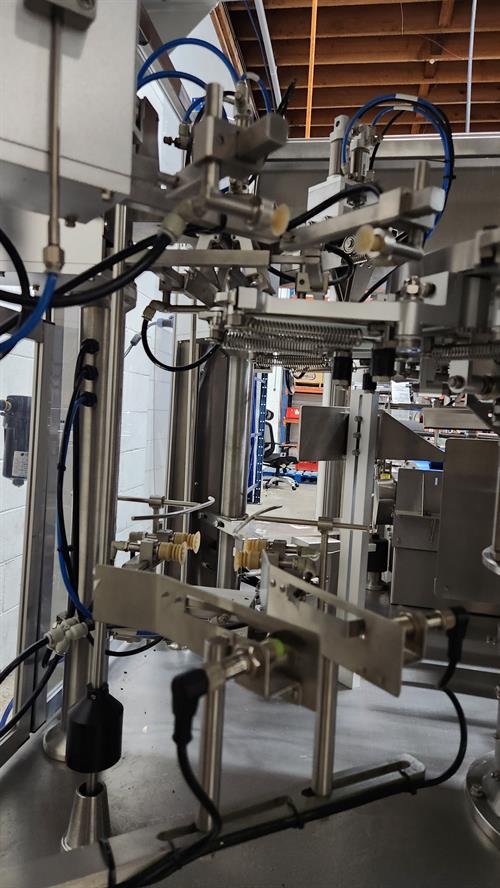

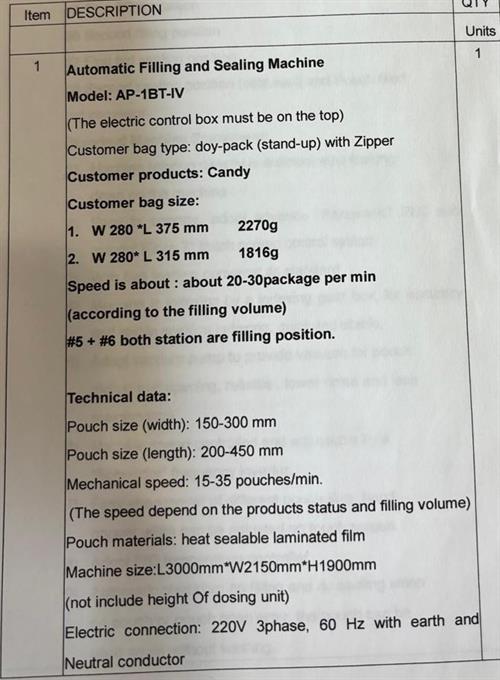

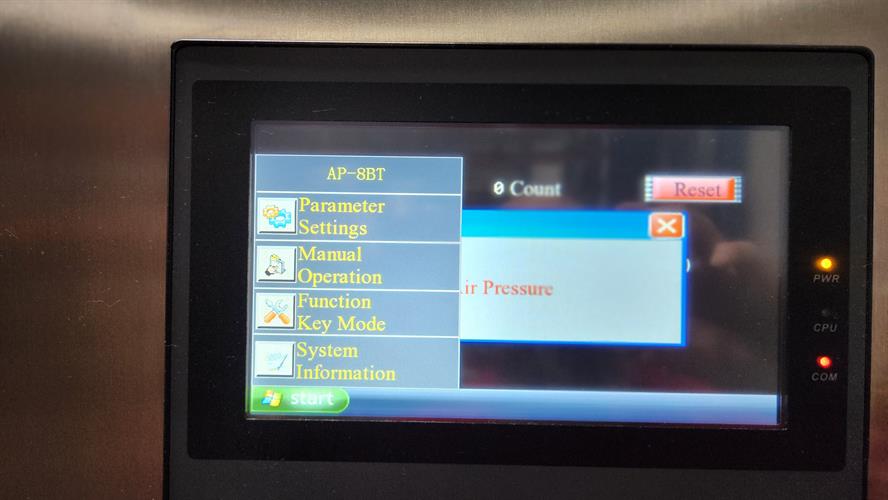

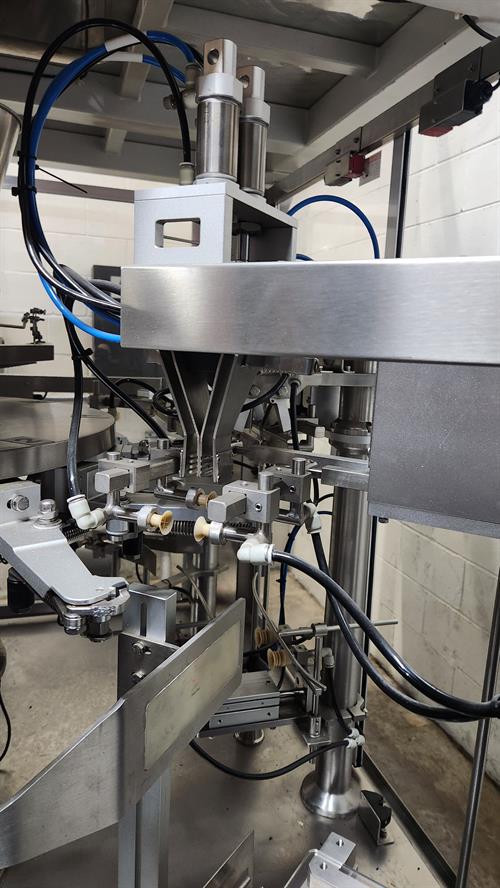

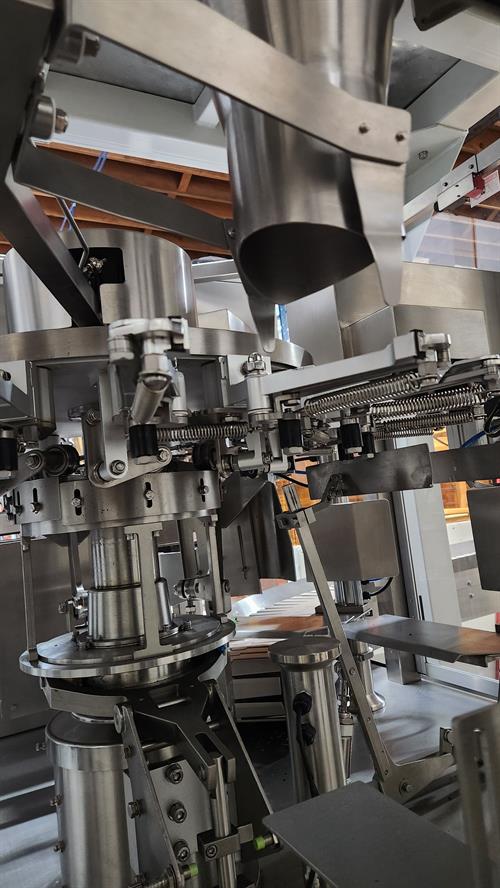

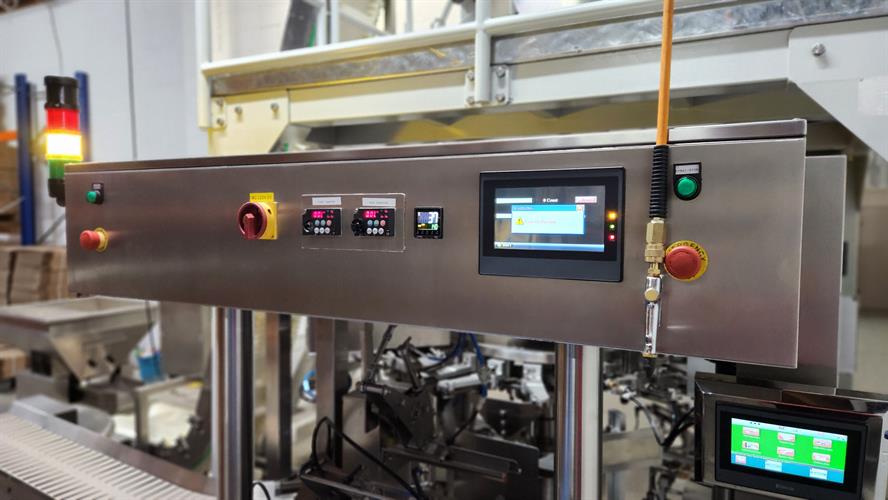

Pre-Made Pouch Machine model AP-1BT-IV
- Currently running two bag sizes: 280mm width x 375 mm length at 2270 grams and 280 mm width x 315 mm length at 1816 grams
- Width: 150-300 mm
- Length: 200-450 mm
- Speed: 15-35 pouches/minute

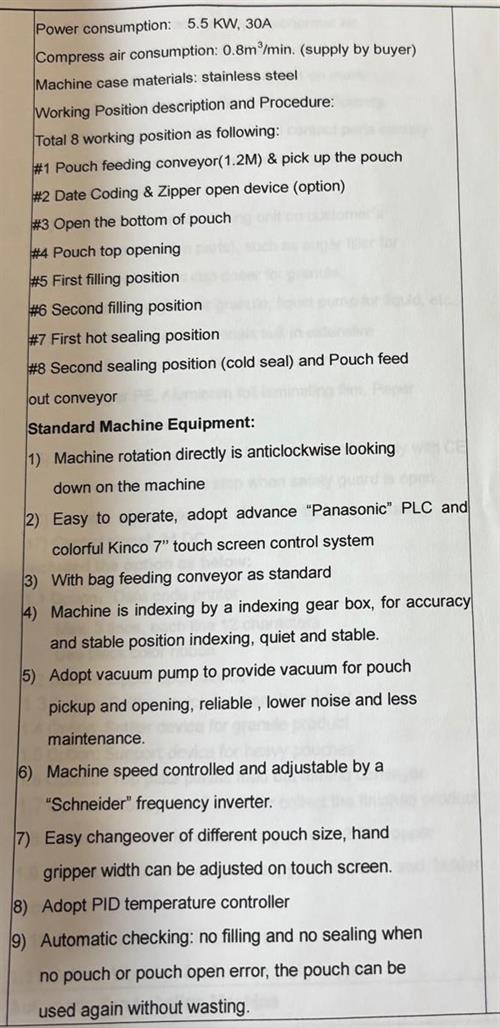

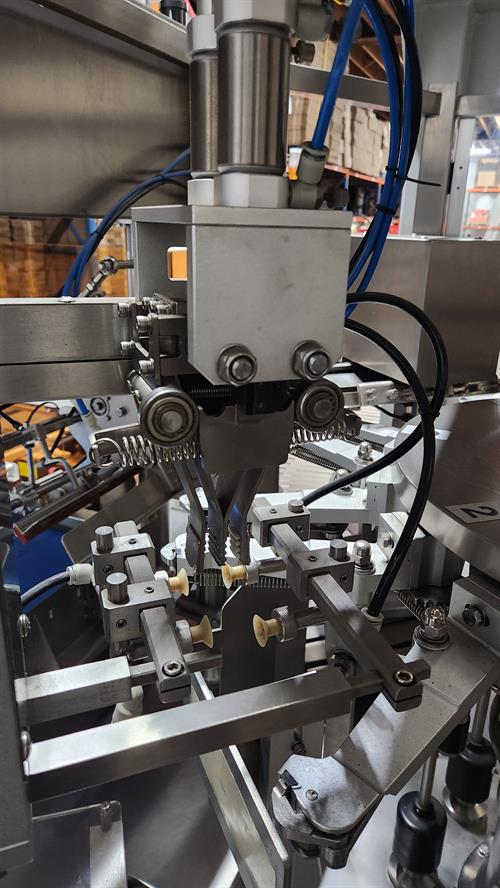

- 8 working stations

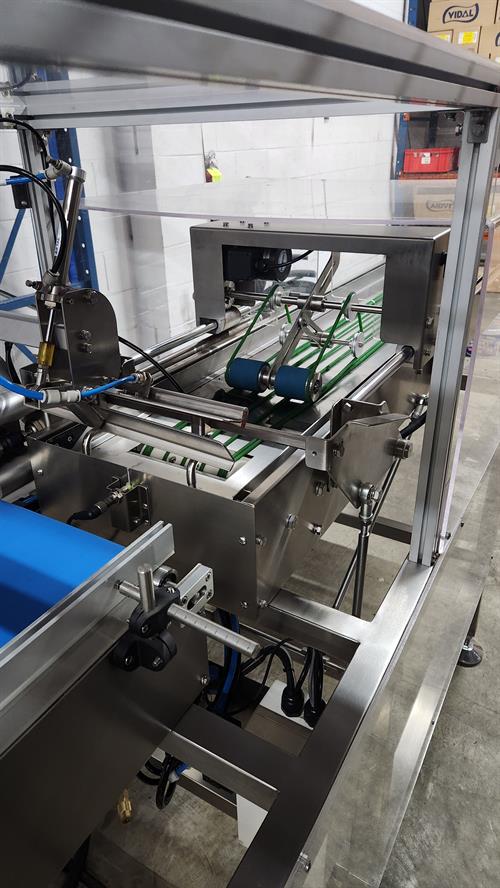

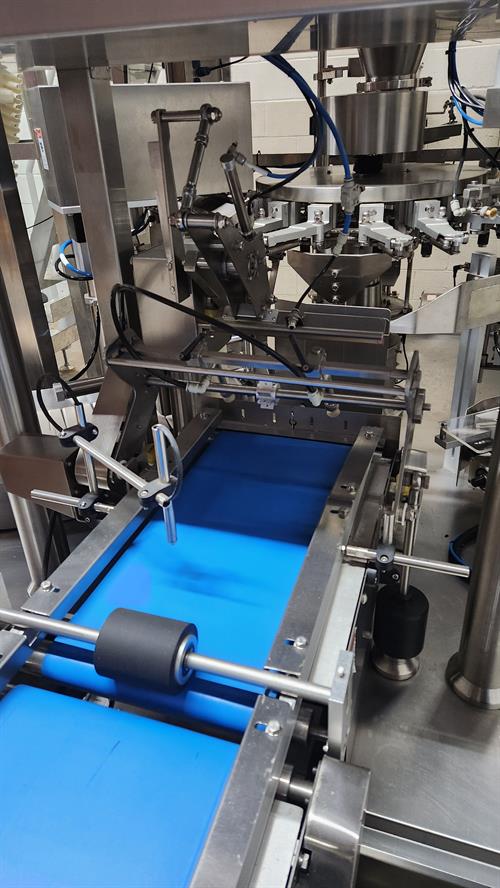

- Pouch feeding conveyor and Pick up the pouch
- Date coding and zipper open device
- Open the bottom of the pouch
- Pouch top opening

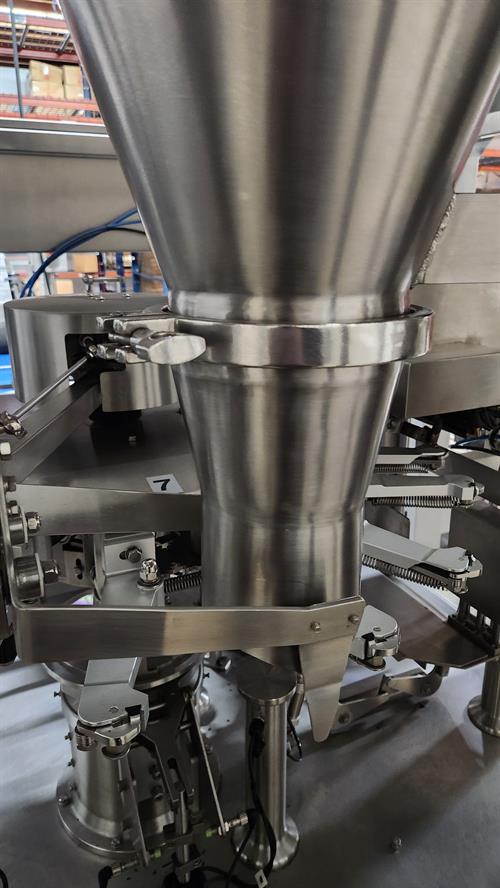

- First filling position
- Second Filling Position
- First hot sealing station

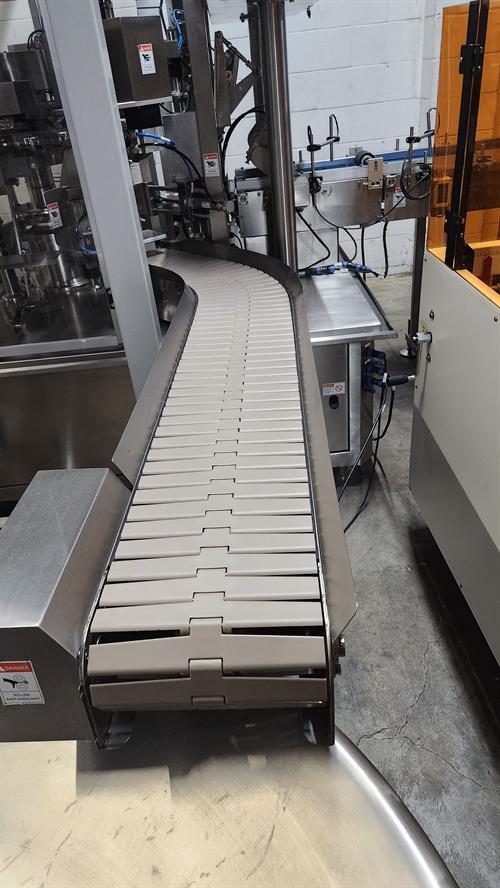

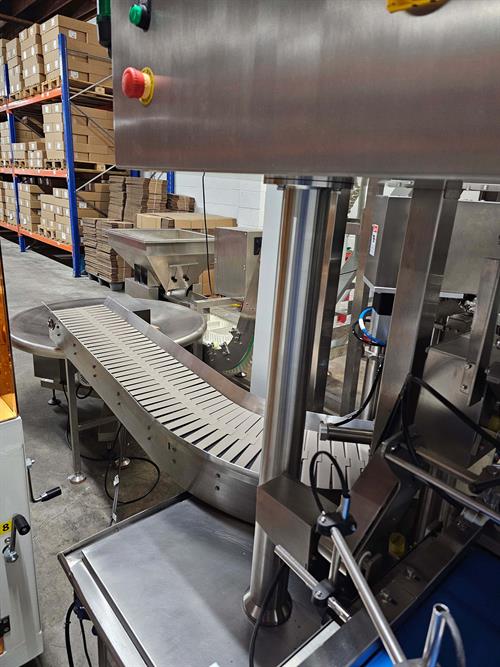

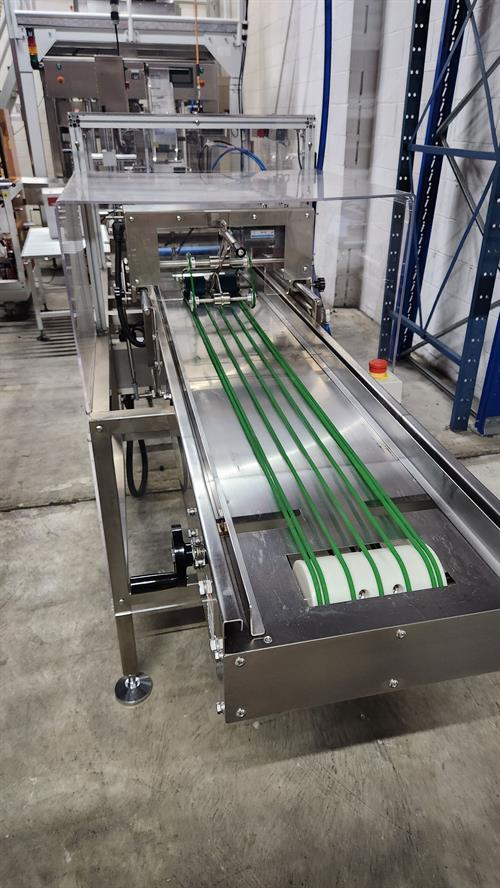

- Second sealing station (cold seal) and pouch feed out conveyor
- Machine size: 3000 x 2150 x 1900 mm tall
- 3 phase, 220 volts

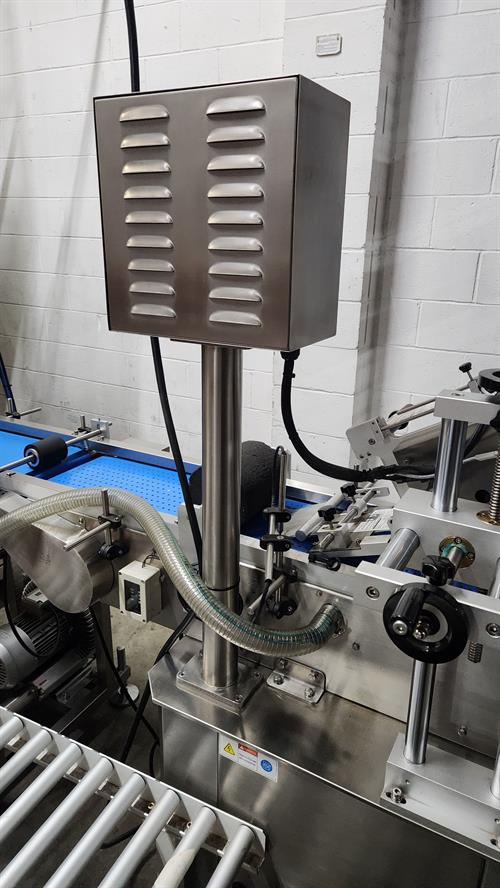

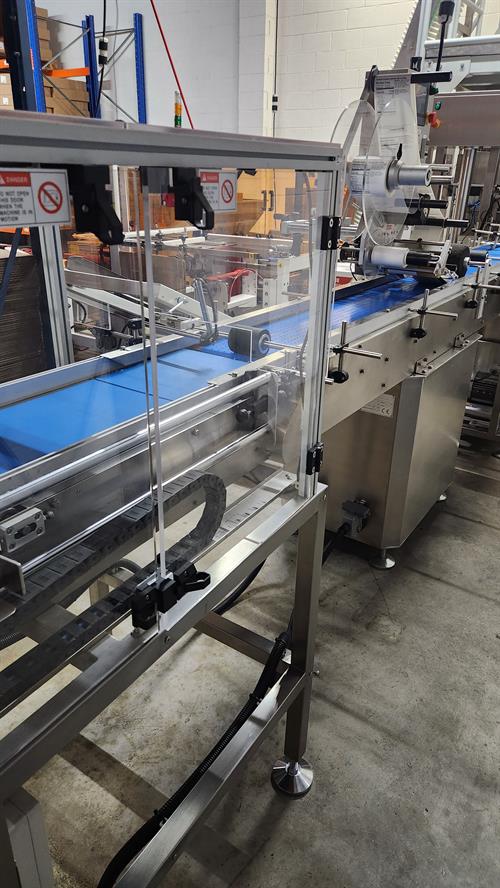

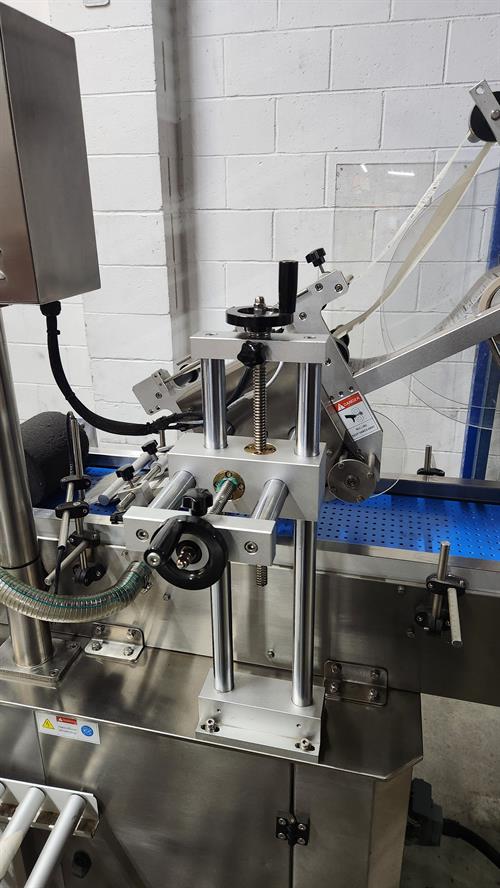

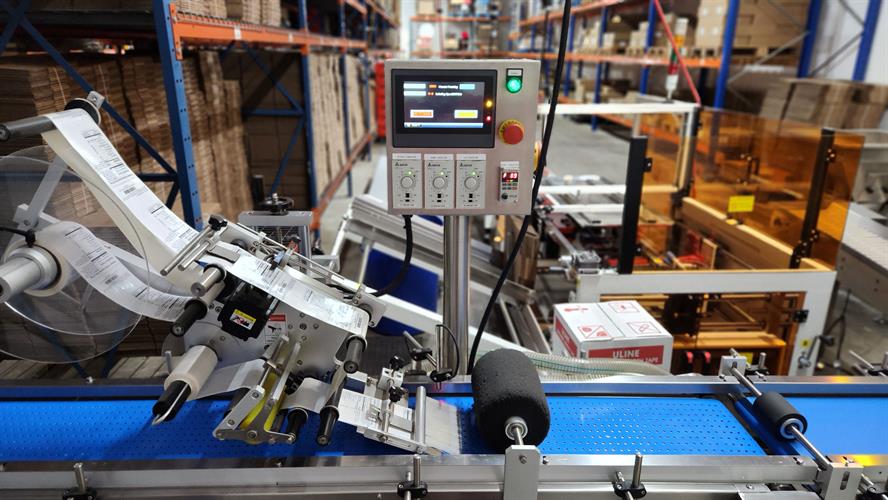

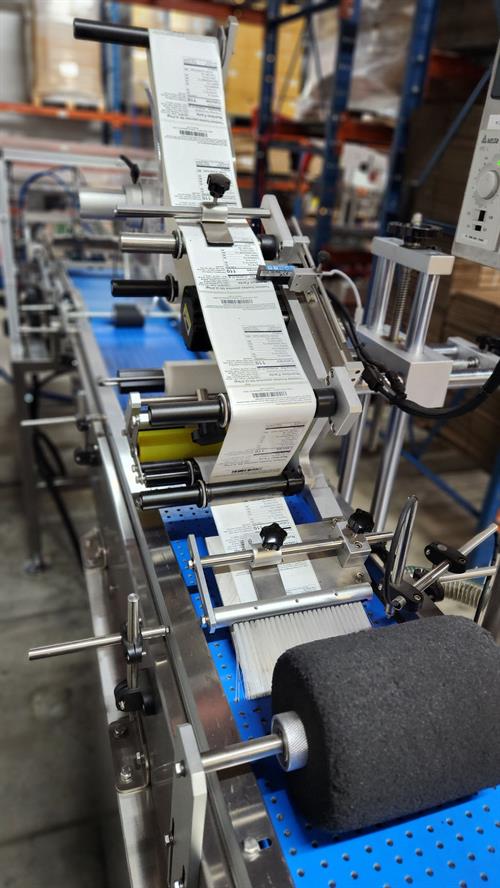

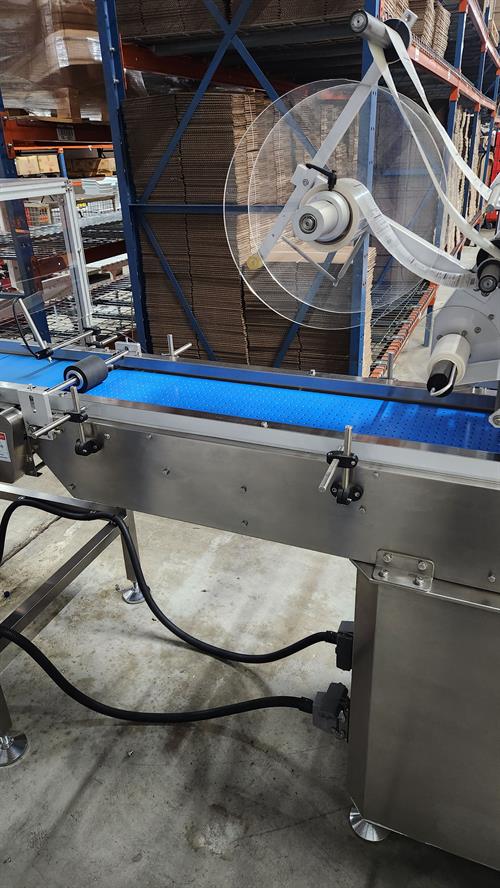

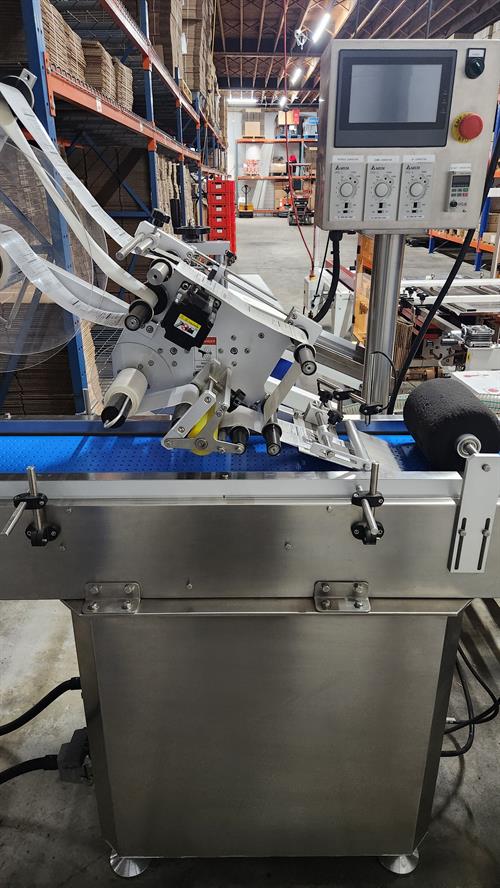

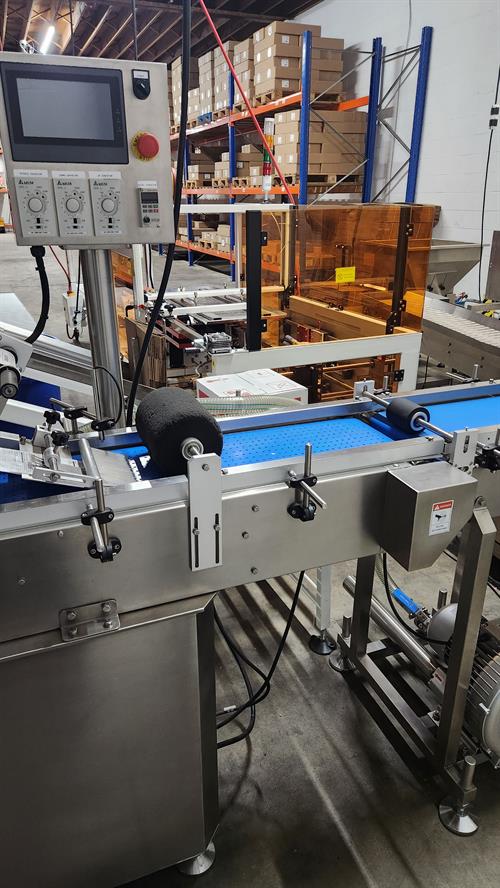

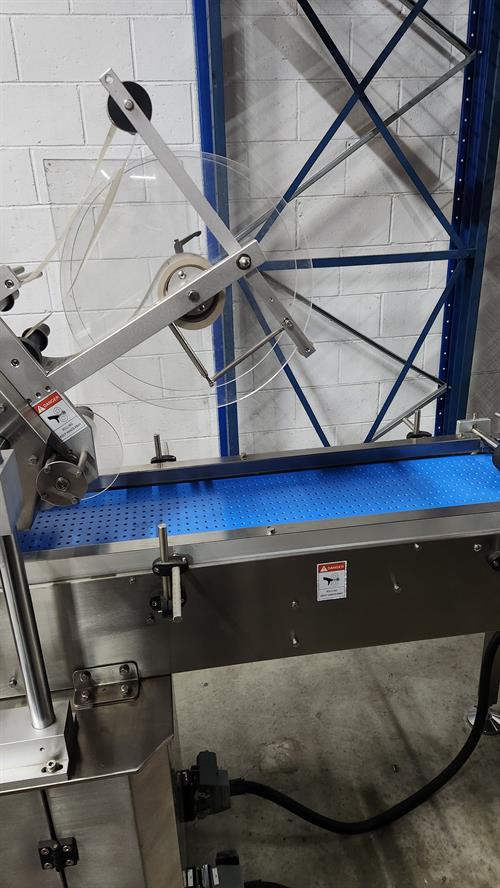

Model ALB-210C Pressure Sensitive Labeler with Belt Conveyor
- Label width: 10-170 mm
- Label length: 30-250 mm
- Label speed: 12-35 m/min

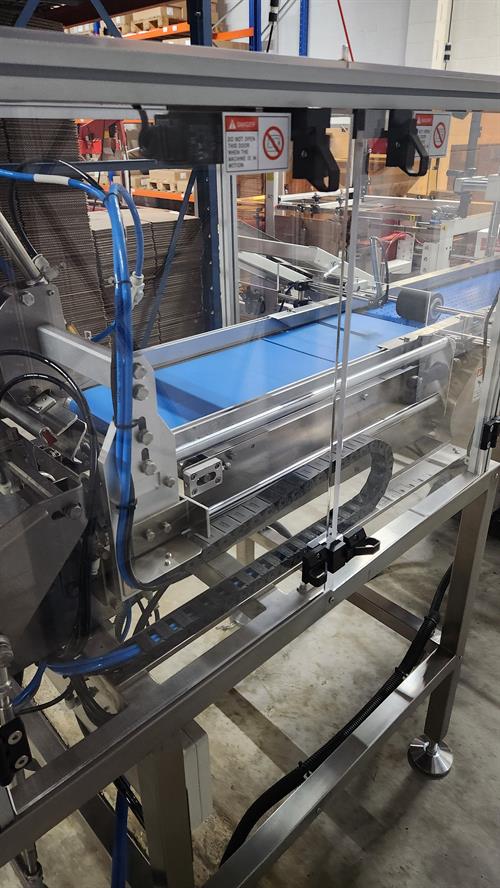

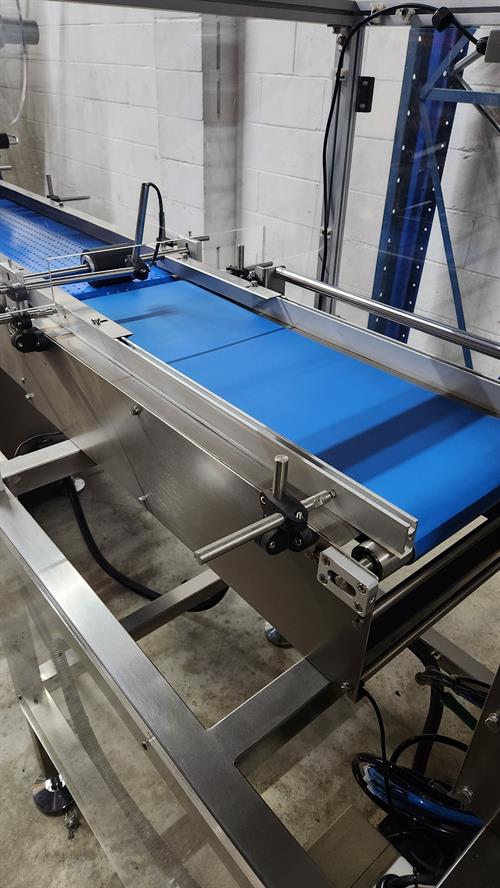

- Conveyor 300 mm wide x 1200 mm long
Location:
Stock No:
85644
