Carleton Helical Technologies Ionized Air Rinser

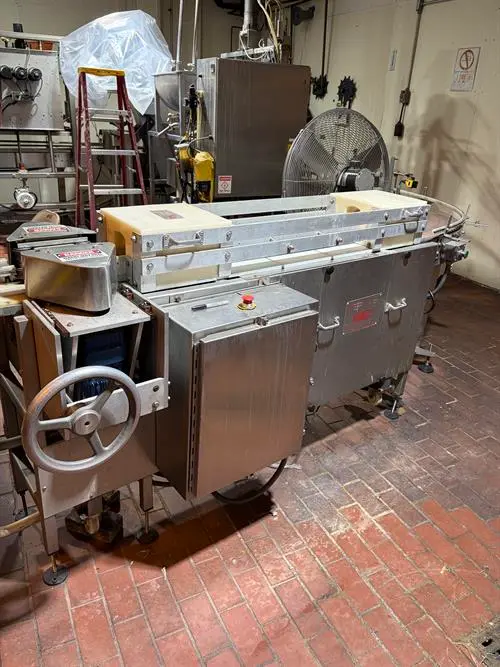

Carleton Helical Technologies Ionized Air Rinser
- Model 025-BB-3600
- Change parts for 16 & 64 oz glass bottles
- Serial #99756
- Speed: Up to 100/minute
- Changeover time: 10 minutes
- Handles wide mouth or narrow neck containers of glass, plastic, paper, metal – Jars, Bottles, Cans of all sizes
- BMH (Helical) Invertor / revertor system
- Three ionized nozzles distribute a positive charge inside and outside of the container, detaching the debris from the container. The vacuum system then collects any debris
- Stainless Steel Tubular Frame Construction

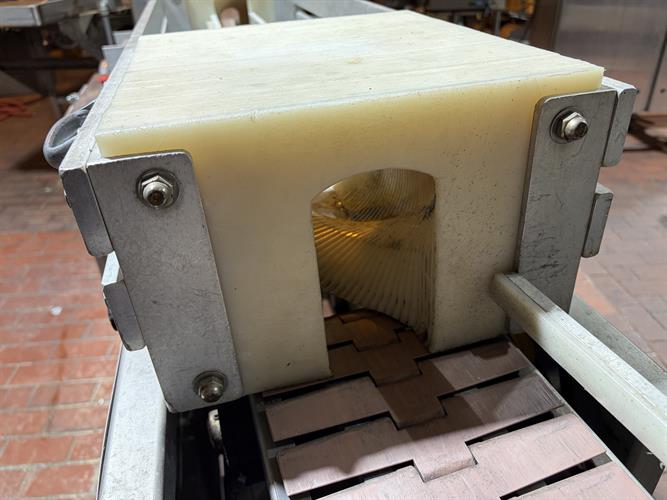

- Low friction polyethylene change parts which does not cause graphics or product abrasion
- Includes (3) existing changeover invertor/revertor parts; 16oz glass, 64oz glass, #10 cans
- Container dual pressure belt infeed system with handwheel adjustment
- Ionized air rinser with vacuum assist
- Allen Bradley variable speed drive
- SIMCO static control system
- Electrical panel with operator controls and E-stop
- Banner back up / Jam sensor
- 3 phase, 60 cycles, 230 volts
- Conveyor elevation 36” (adjustable)
- Overall dimensions 77” L x 32” W x 44” H
- Mounted on casters
- Serial #99756
Location:
Connecticut
Stock No:
85514
