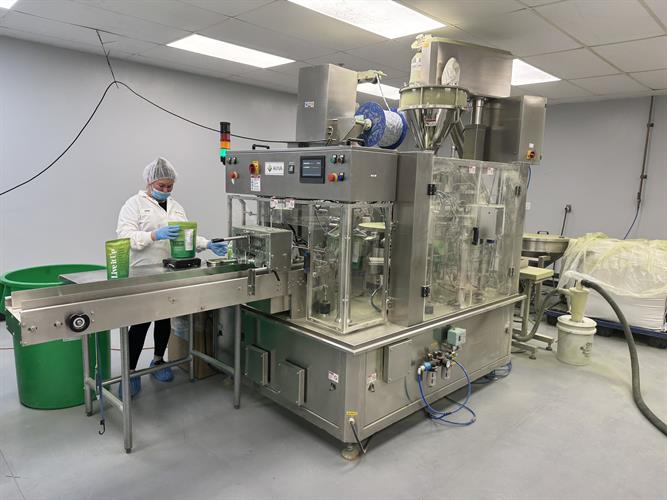

Ohlson Generation IV Rotary Pouch Packager With Auger Filler, Vacuum Powder, Scoop & Desiccant Pouch Feeders
Please sign in to submit request.
Ohlson Generation IV Rotary Pouch Packager With Auger Filler, Vacuum Powder, Scoop & Desiccant Pouch Feeders
Ohlson Generation IV Rotary Pouch Packager With Auger Filler, Vacuum Powder, Scoop & Desiccant Pouch Feeders
- 304 stainless steel
- 8 stations
- Centralized gripper adjustment
- User friendly color touch pad
- Bag magazine
- Bag opening blade with full opening Detector
- Bag deflector
- Discharge conveyor
- Zipper opener assist
- Hot stamp printer
- Product settler
- Gas injection
- Pouch Type: flat, stand-up, zipper, slider-zipper, gusset pouch
- Material: laminated film
- Pouch width: 4.3” – 9.8”
- Pouch height: 5.9” – 13.7”
- Maximum fill weight: 5 lbs
- Thickness: 3-5 mil
Genesis Model JA-50L-1 Auger Filler
- 304 stainless steel, hopper & auger 316 stainless steel
- Servo drive
- Touch screen
- Easy removal of hopper & tooling
- Easy side opening hopper
- Agitator blade
- Packing weight: 1 oz – 4.5 lbs
Genesis Model DA-6-2 screw conveyor
- 304 stainless steel (316 stainless steel hopper)
- 5-1/2" diameter x 110" long feed tube & screw
Genesis Model HD-BF-0022 Automatic Scoop Feeding system
- 304 stainless steel
- Bowl feeder
- Vibratory track
- Split funnel/chute with no scoop sensor
- Adjustable for 11 - 29.5cc scoops
Genesis Model HD-DF-827 Desiccant Pouch Feeder
- 304 stainless steel
- PLC controlled
- Touch screen HMI
- Stepper motor driven
- Pouch width: 15mm – 60mm
- Pouch length: 20mm – 60mm
Electrical: 3 phase, 60 cycles, 220 volts
Overall dimensions: 20' x 8'
Pouch packager dimensions: 82" x 77"
Line speed: up to 60/minute (running at 25/minute)
Pouch packager manufactured in 2021
Auger filler, screw conveyor, scoop feeder & desiccant pouch feeder manufactured in 2024
Can be retrofitted with scales, volumetric cups, or liquid pumps
Location:
NEW JERSEY
Stock No:
85317
