Baker Perkins Gummy Depositor with ServoForm Mini Depositor - Built 2019

This product has no valid combination.


Baker Perkins Gummy Depositor with ServoForm Mini Depositor - Built 2019

Baker Perkins Gummy Depositor with ServoForm Mini Depositor - Built 2019

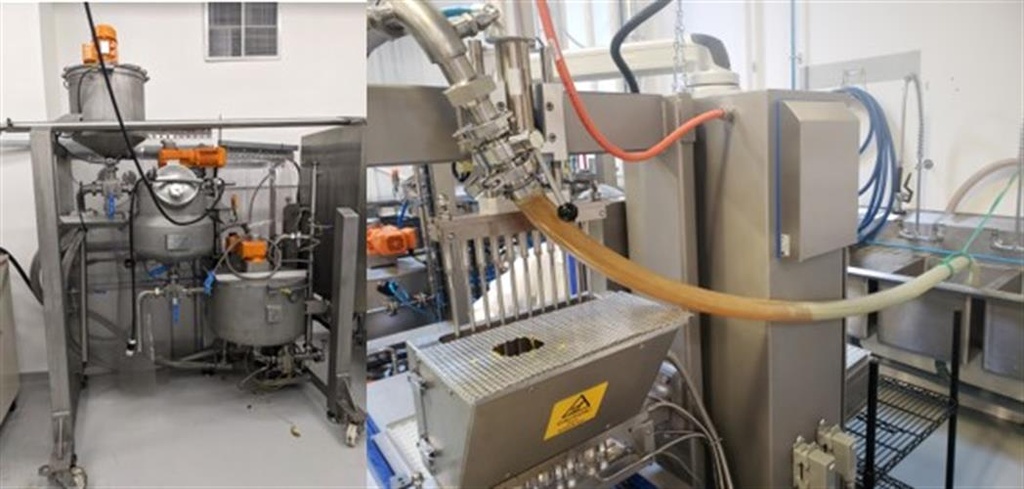

Baker Perkins Candy Syrup Batch Cooking System with electric boiler and hot oil system
- Year built 2020, SN#07:45048:B3
- 480 V, 60 Hz, 25 Amps, 3 Phase,
- MAWP 160psi@370FMDMT32F @ 160psi
- Consists of:
(1) Mixing vessel 30 liter batch size with Propellor type mixer, 304 stainless steel , two part lid, 50 mm bottom outlet gravity transfer.
(1) Cooking Vessel, 30 liter batch with anchor agitator with inverter speed controller, 10 bar steam jacket, top mounted temperature probe, 50 mm product inlet connection, 50 mm manual bottom outlet.
(1) Buffer Vessel, 50 Liter with fixed speed anchor type agitator, 304 stainless steel with a heat exchanger with 316 stainless steel, jacket suitable for hot water/oil 4 bar, two part lid, 50 mm diameter bottom outlet.
(1) Transfer pump, stainless steel lobe type pump with drive motor and VFD.
(1) Master control panel, stainless steel enclosure, E-stop, Mixer start/stop, Cooker mixer star/stop, Cook temperature control and display, cook complete indicator, Buffer mixer start/stop, transfer pump start/stop.
(1) Vapower Electric steam boiler - model # STR
(1) Chromalox Hot Oil circulating Heater 18kw, 3 Phase, 280 Volts 50 amps 60 Hz, model #CMXO-550-240 033QP, SN# PCO6964, P/N 141-307419, Year Built 2010.

Baker Perkins ServoForm Mini Depositor
- serial#CF19082-1591, year built 2019
- single phase, 480V, 5.5 kw.
- Single row depositor with (11) nozzles,
- Control panel with HMI interface.
- Operates at 16 to 18 strokes/minute. 176 to 198/pieces/minute. Around 45 kg/hr.

Location: Ontario, Canada
Stock No: 84671
