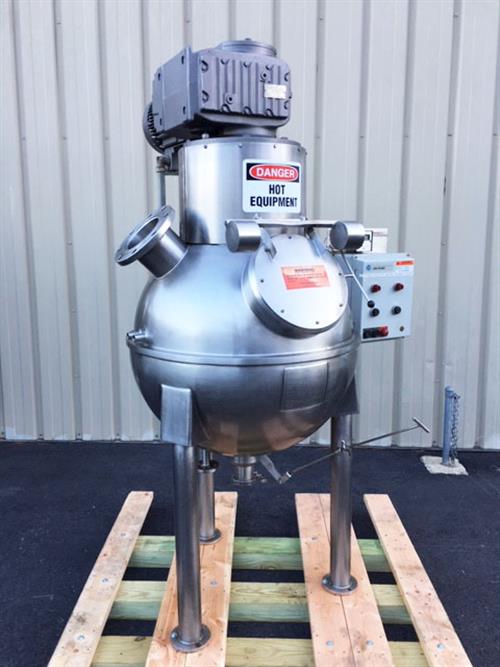

Hamilton 42 Gallon Stainless Steel Spherical Jacketed Cooking and Mixing Vessel

Hamilton 42 Gallon Stainless Steel Spherical Jacketed Cooking and Mixing Vessel
- 42 Gallon Capacity
- Previously used to cook caramel (copy of Hansella 110C caramel cooker)
- Model Style SA
- Year of manufacture 2003
- Serial Number F-5385
- National Board Number 238
- Stainless Steel Tank Construction
- Jacketed Hemispherical Bottom and Cylindrical Sides
- 42 Gallon Capacity
- Max. Jacket Pressure Rating: 125 PSI @ 344 Deg. F.
- Min. Jacket Design Temp: -20 Deg. F. @ 125 PSI
- Hyd. Test Pressure 174 PSI
- (3) Top Inlets, 2”, 4”, 6” TriClover TriClamp & Flange Styles
- 3” Center Bottom Outlet with Flush Mount Ball Valve and TriClover TriClamp Connection
- Distance from floor to bottom outlet 18”
- 13” Manhole Opening with Counter-Weighted Lid
- 1” NPT Steam Jacket Connections
- (3) Stainless Steel Leg Supports
- Equipped with Top Entering SEW Eurodrive Blender, In 870/1750 RPM, Out 63/126 RPM, 13.85 Ratio
- 2-Speed Drive Motor, 3.5 / 7.5 HP, 370 / 1750 RPM
- Electrical 230 Volt, 3 Ph, 60 Hz, 14.4 / 19.0 Amps
- Vessel Dimensions 34” Diameter x 34” Deep
- Overall Dimensions 54” L x 54” W x 86” H
- Skidded and ready to ship
