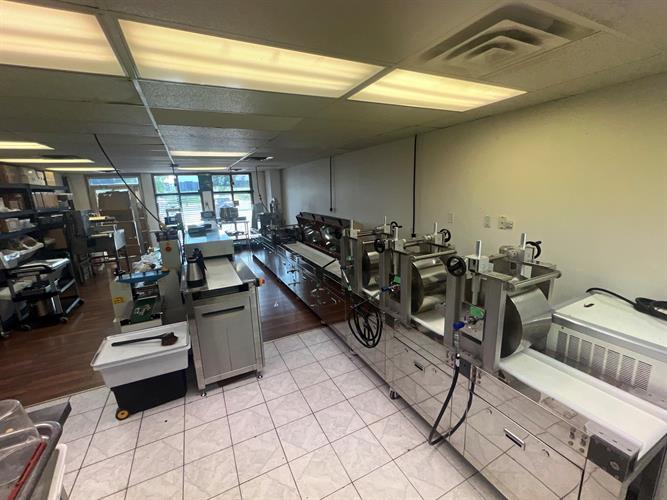

Bar Forming Slab Line - 11" Wide
- Double drum former with (2) 11" wide jacketed rollers with hopper
- (3) 11" wide x 20" diameter jacketed Gauging Rollers
- Forming conveyor 11" wide x 117.5" long
- Cooling Tunnel 13.5" wide x 85" long
- Slitter assembly with (11) blades on 1.5"centers
- Guillotine cutter mechanical type with timer and 13.5" wide knife
- 13.5" wide x 50" long conveyor for slitter and cutter
- Overall dimensions: 22" wide x 33-ft long
- 3 phase, 240 volts, 30 amps
