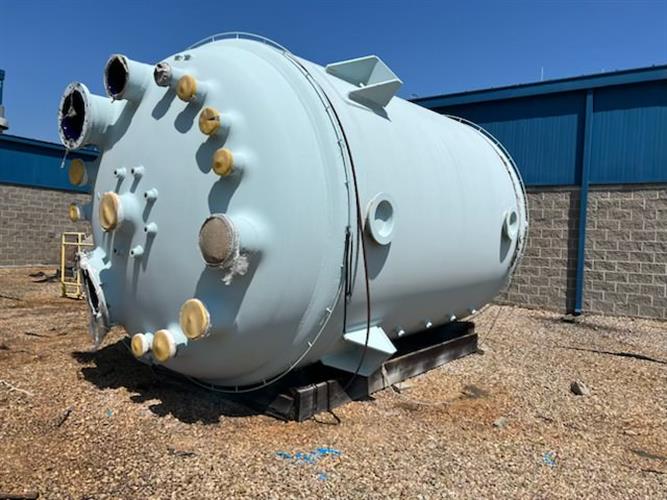

Pfaudler 6000 Gallon Glass Lined Reactor

Pfaudler 6000 Gallon Glass Lined Reactor
- Vertical
- Reglassed in 2015 (built in 2007)
- Type 9119 white glass
- Dished top & bottom
- 108" diameter x 144" high
- Internal rated 125/FV psi @ 450* F
- Carbon steel jacket rated 90 psi @ -20* to 350*F
- 18" top manway
- Bottom outlet
- Side lug mounts
- Serial # J069522
- National Board #51807
