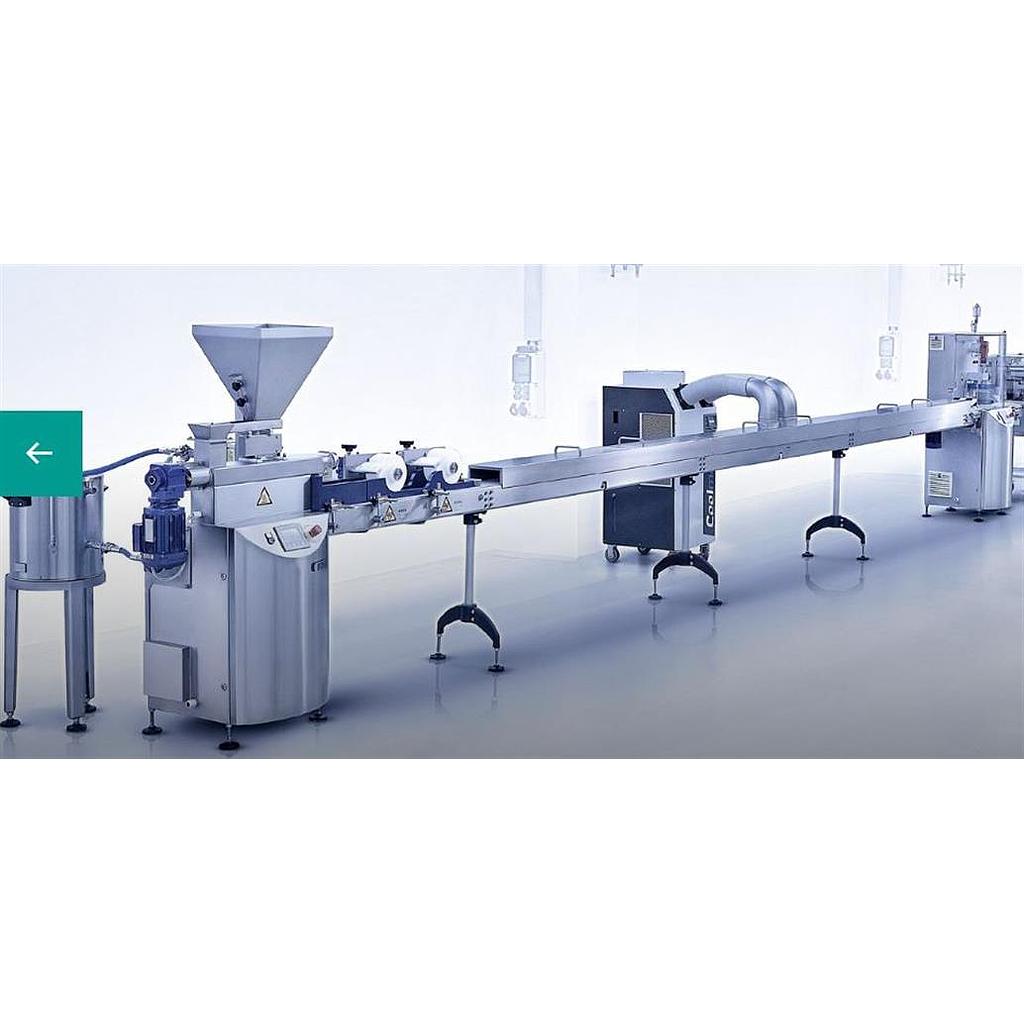

Buhler 7" Wide SnackFix Bar Slab Forming Line - Up to 130 kg/hr

This product is no longer available.


Buhler 7" Wide SnackFix Bar Slab Forming Line - Up to 130 kg/hr

Buhler 7" Wide SnackFix Bar Slab Forming Line - Up to 130 kg/hr
Buhler Mass Preparation Unit
- New 2019
- Twin screw stainless steel continuous mixer
- Vibratory hopper for dry products
- 13 gallon heated stainless steel tank with pump for syrup

Buhler Equalizing Roller
- (2) Gauging rollers 3-3/4" wide x 7" diameter each with their own motor drive, ¼ HP, 3 phase, 220 volts

Moline Slitter
- (2) Adjustable slitting blades to make three rows of bars

Buhler Cooling tunnel
- 7" wide belt x 19.5 -ft long (3 two meter sections)
- (2) Coolmombile portable air conditioners, single phase, 220 volts

Buhler Cutting Unit
- 4.5" wide guillotine blade
- Two foot discharge separation conveyor

Buhler Automatic Tray Loader for Bars
- Operator hand loads trays onto the conveyor
- Retractable conveyor loads cut bars onto the tray
- Operator removes the tray

This line was used without the mass preparation unit with SS tank and pump. These items are included with the line.

Video link shown is this line running with custom slitter. Customer was running the line at approximately 90 bars/minute.

Price includes packing

Location: Wisconsin
Stock No: 83061
