Awema Mini-101 One-Shot Depositor with Cooling Tunnels

https://shop.unionmachinery.com/web/image/product.template/13656/image_1920?unique=c9a6401
Please sign in to submit request.
Awema Mini-101 One-Shot Depositor with Cooling Tunnels

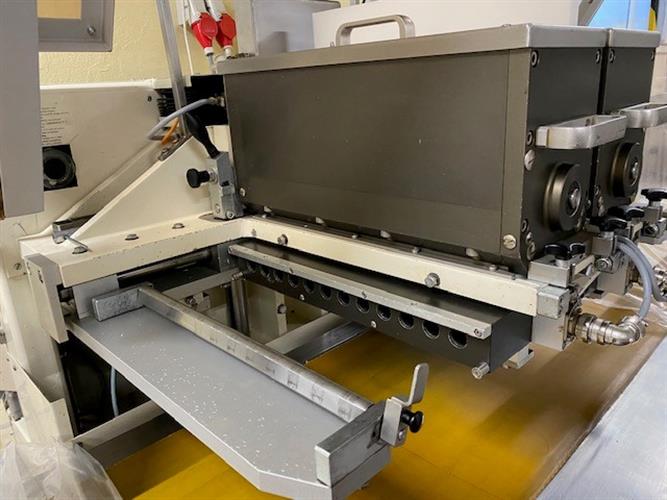

Awema Mini-101 One-Shot Depositor with Cooling Tunnels - Awema Mini-101 One Shot Depositor, serial#101-51439-093, Built 2003 - Mold size 430 x 330 x 60mm high - 12 pistons per side - Two heated hoppers - Up to 150 kg/hr - Servo driven - 3 phase, 50 cycle, 380 volts - Bolt on infeed conveyor for molds - Nielsen 400 mm wide x 11 meters long Cooling Tunnel, serial#040528, built 2004 (total length 16 meters), 3 phase 50 cycle, 400 volts - Woody 450 mm wide chocolate Stringer, serial#091204M, built 2009 - Nielsen 400 mm wide x 5.5 meters long Cooling Tunnel built 2012 (total length 7.5 meters), 3 phase, 50 cycles, 400 volts - Line can be run to produce free form one shot or solid depositing on the belt or into molds

Location: BELGIUM
Stock No: 82679

This product is no longer available.
