Brownie Bites Production Line

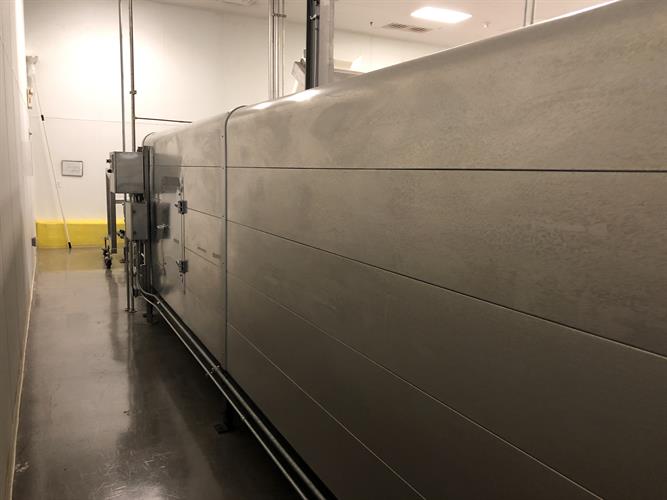

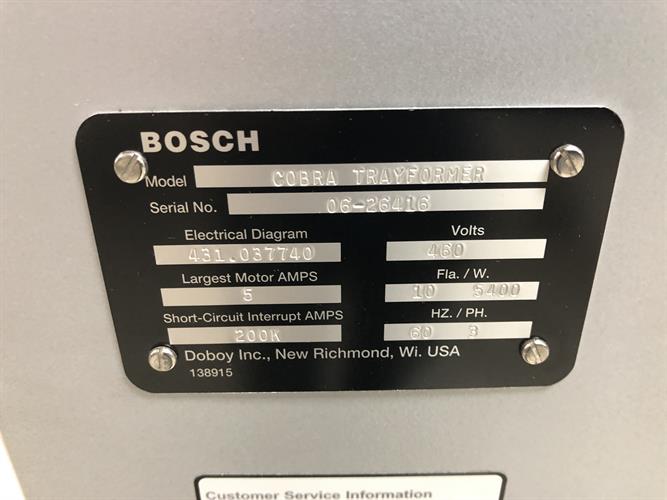

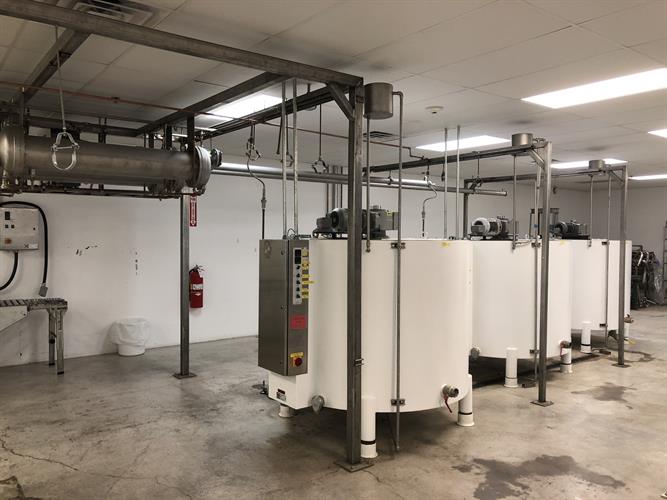

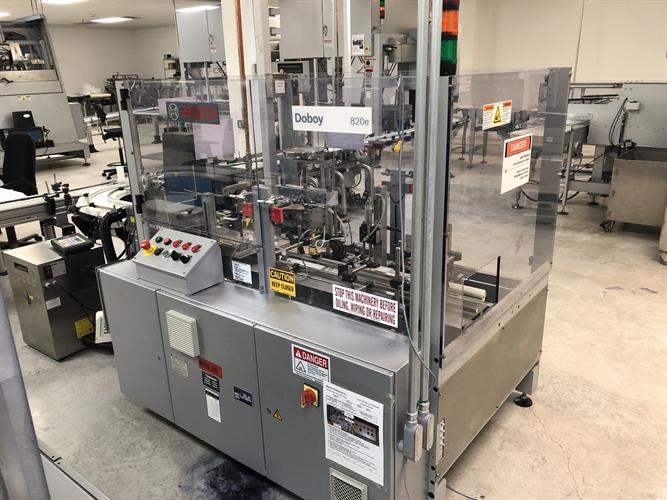

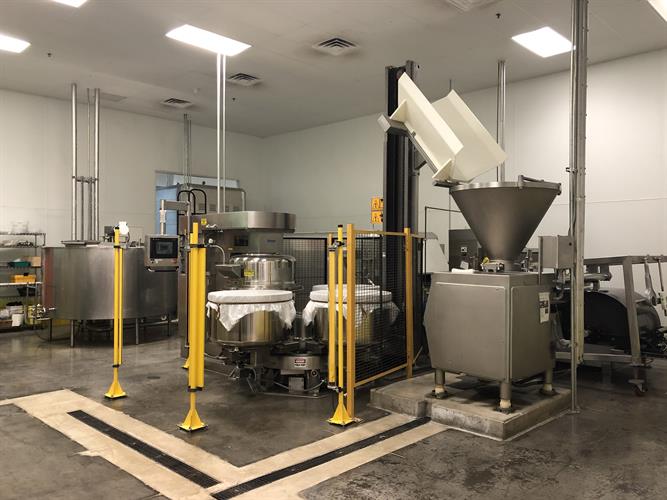

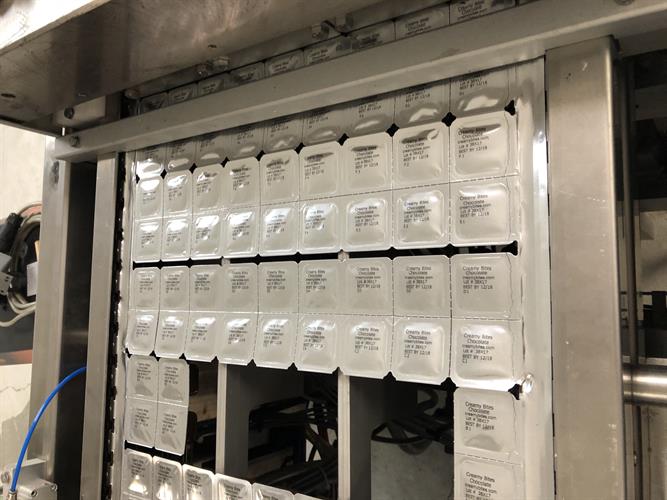

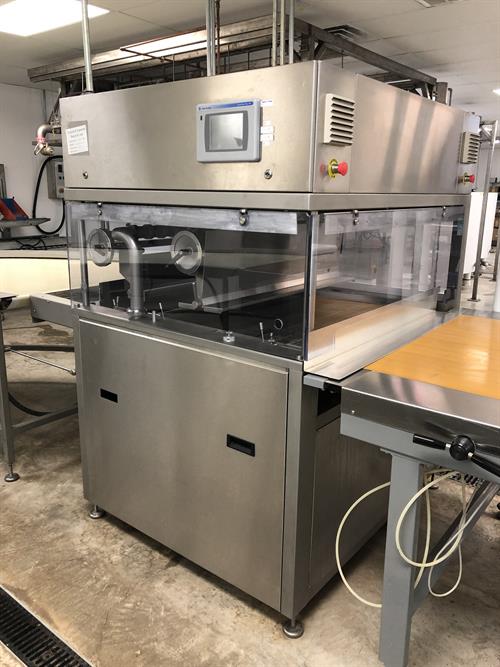

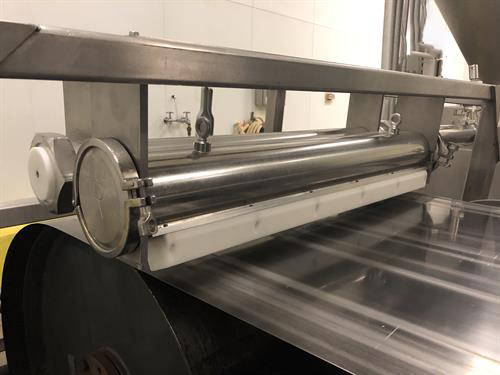

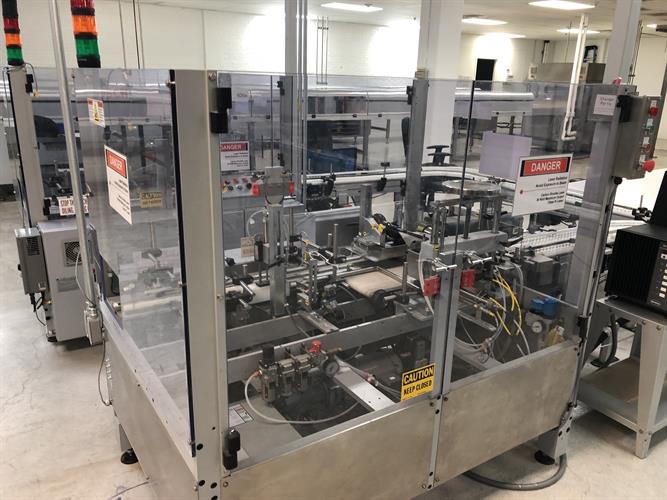

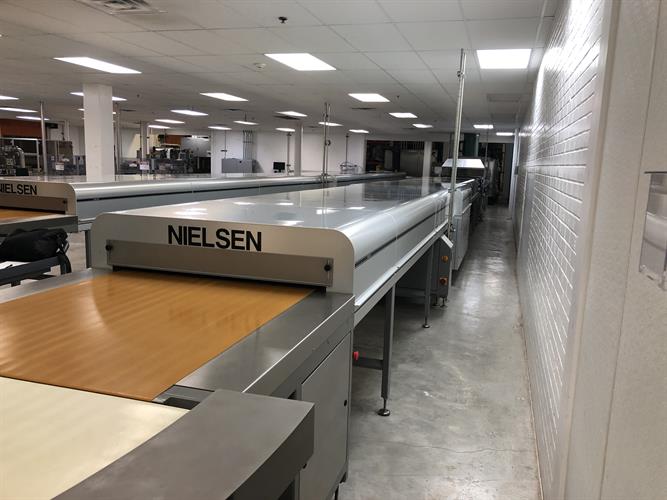

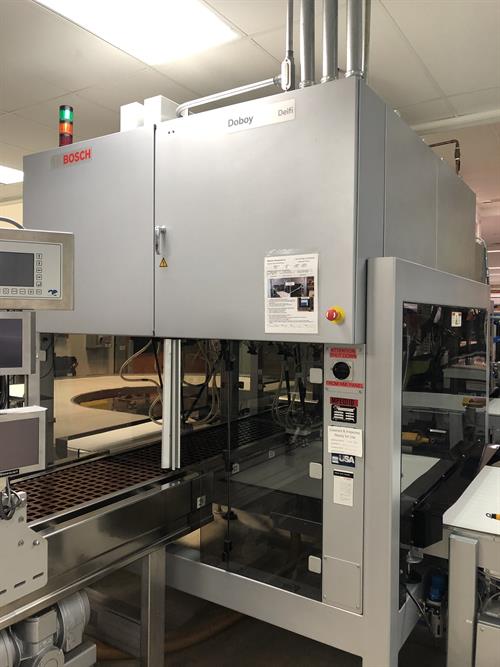

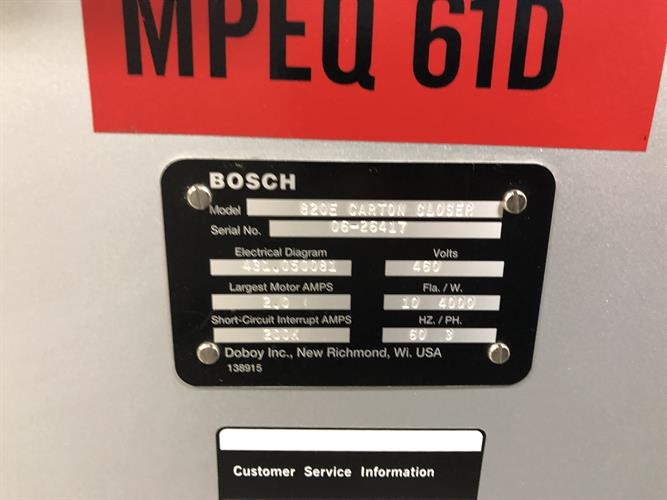

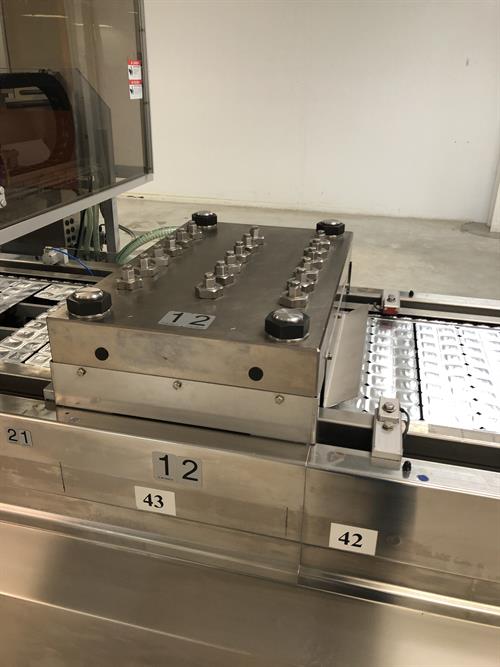

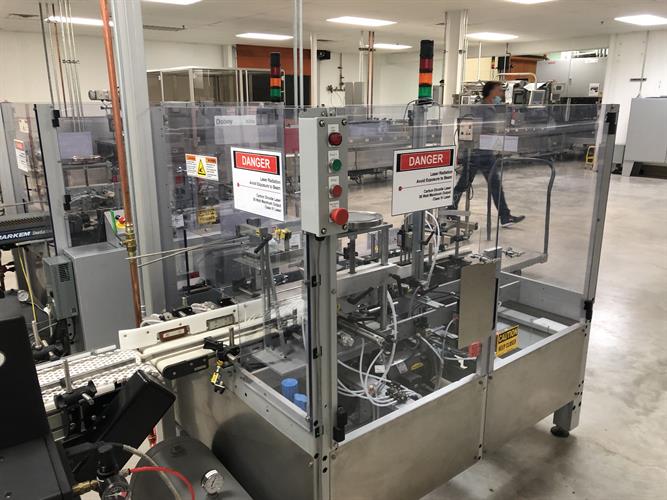

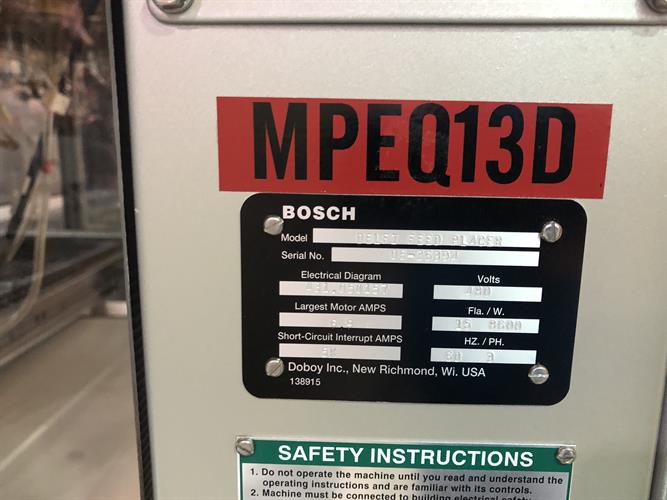

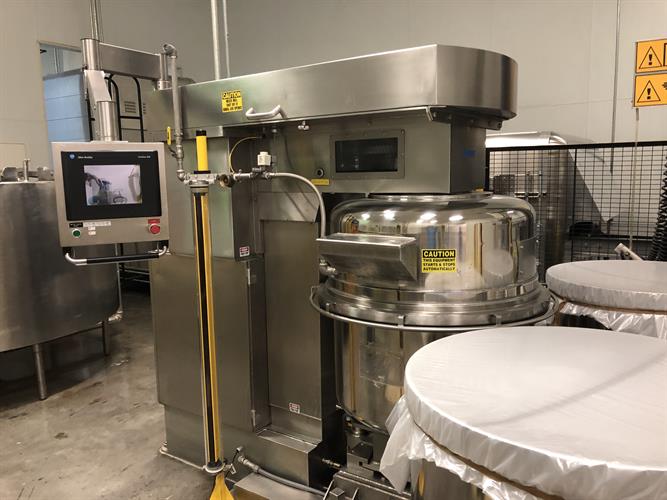

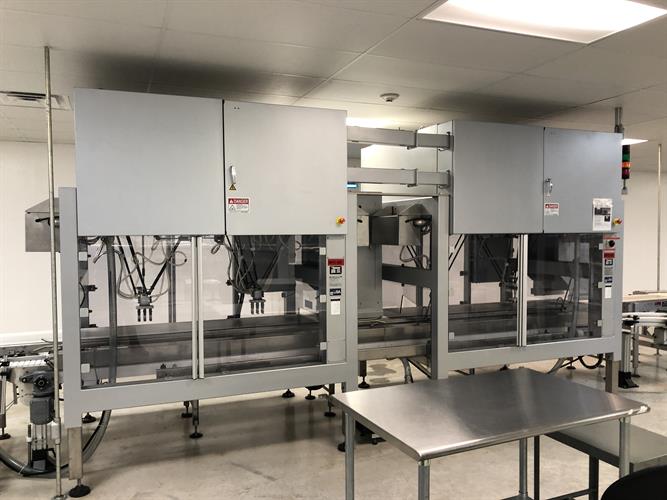

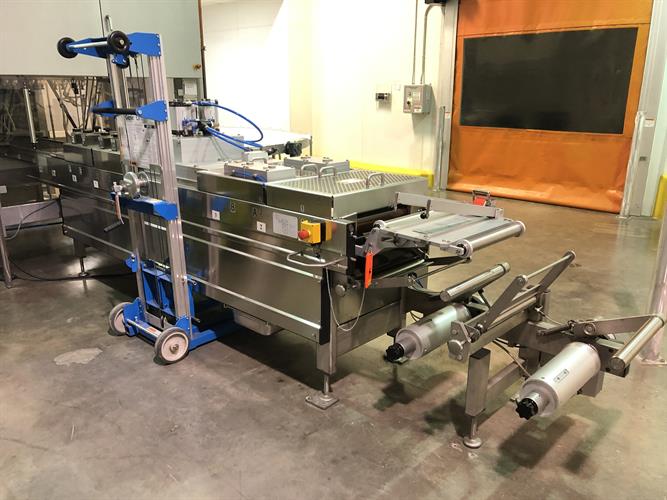

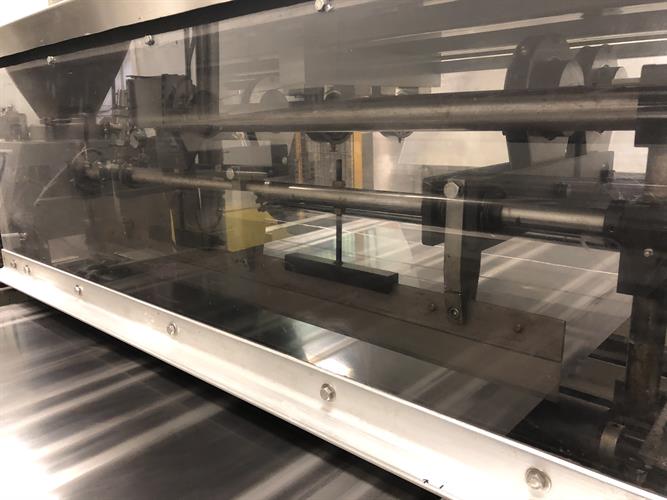

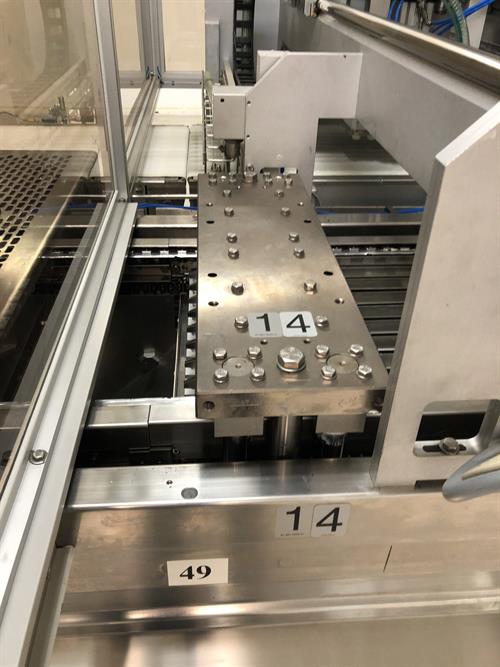

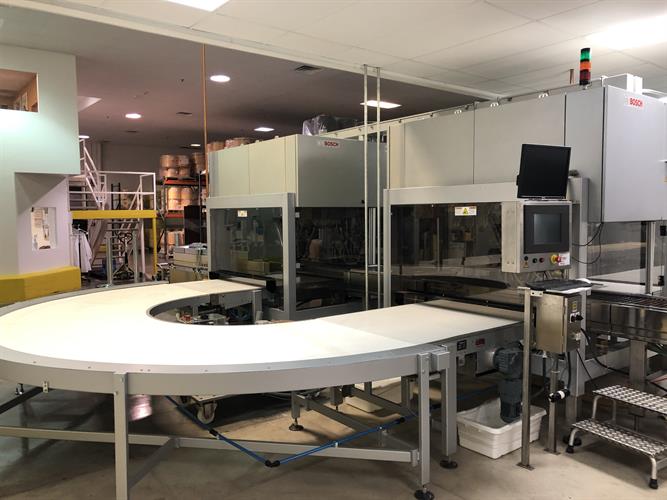

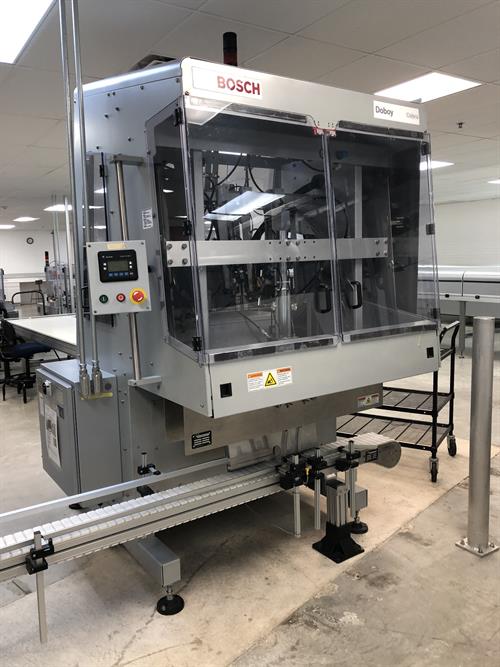

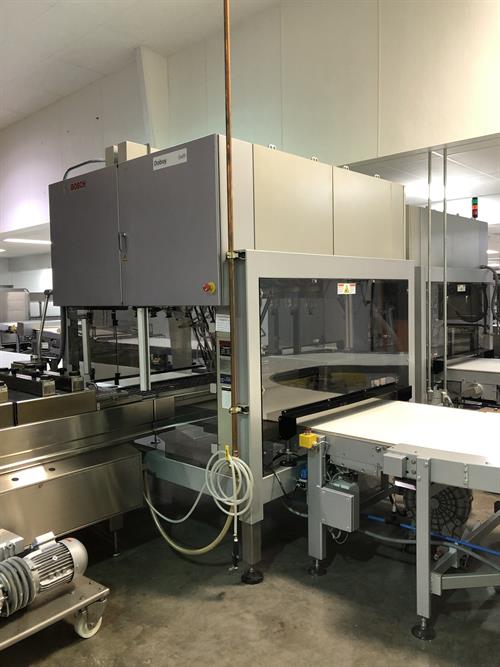

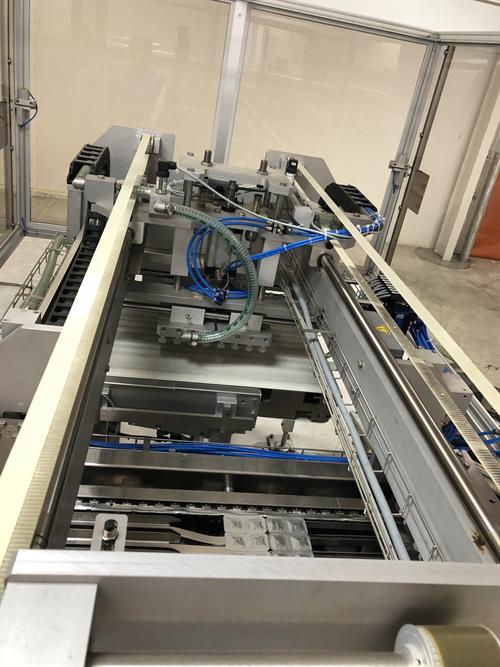

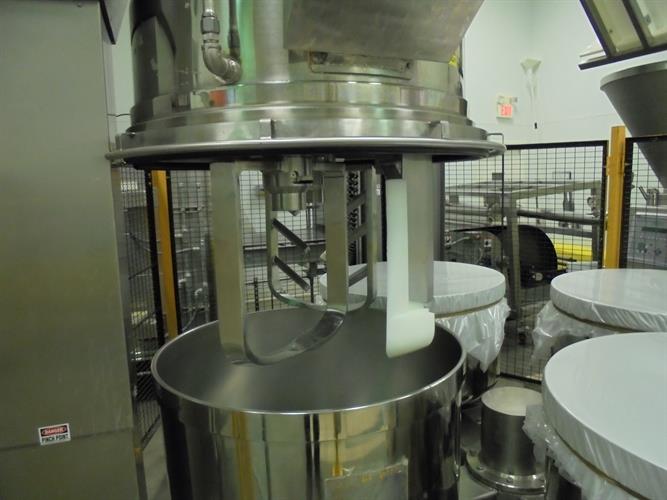

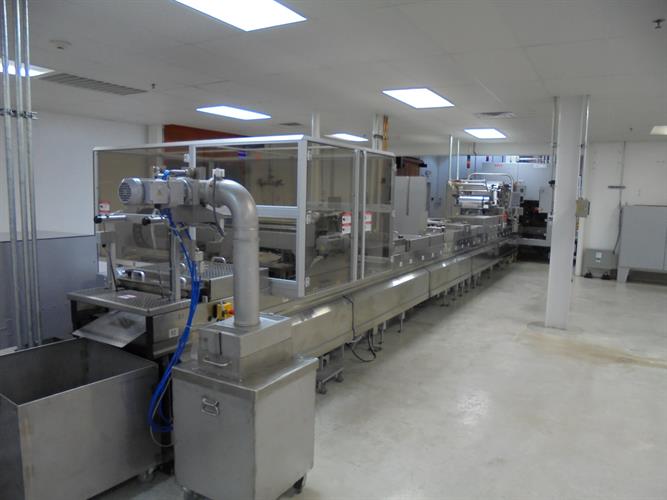

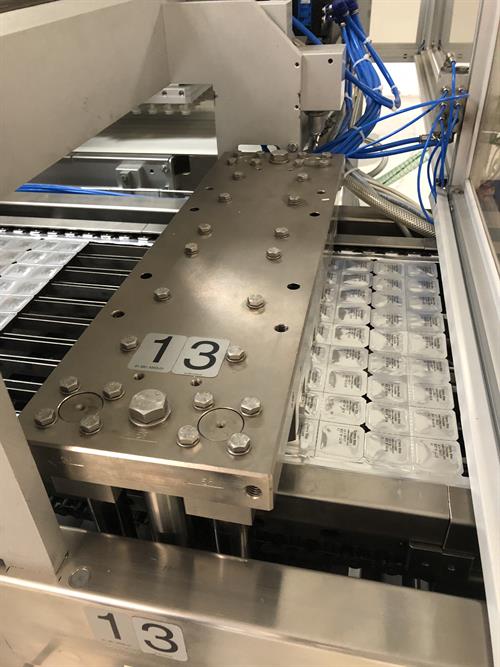

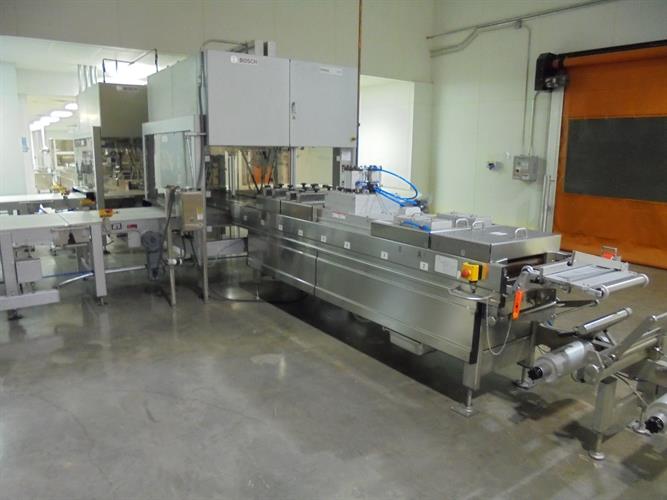

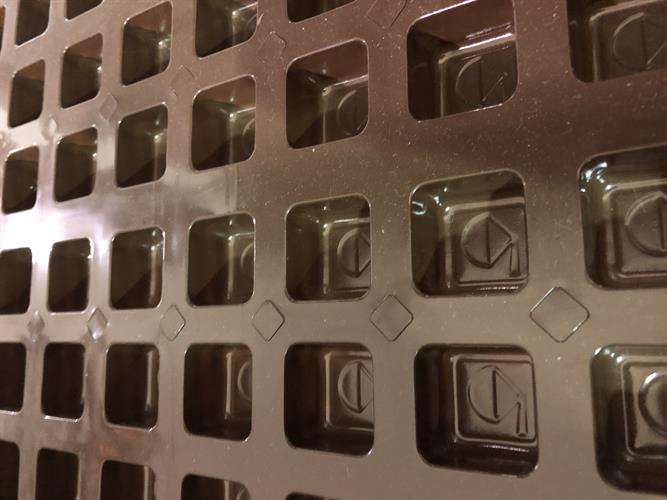

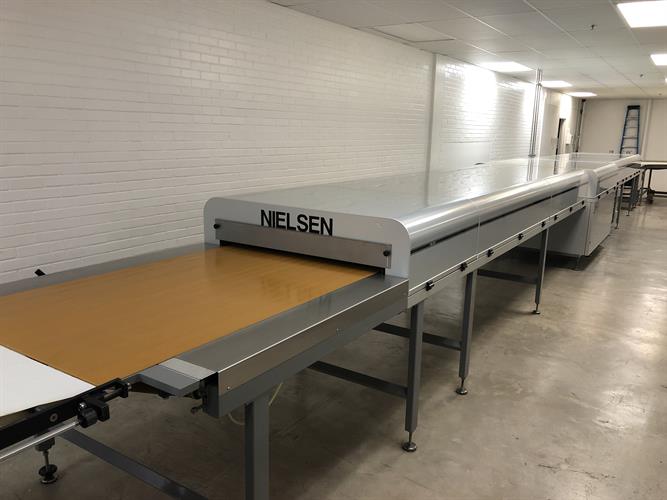

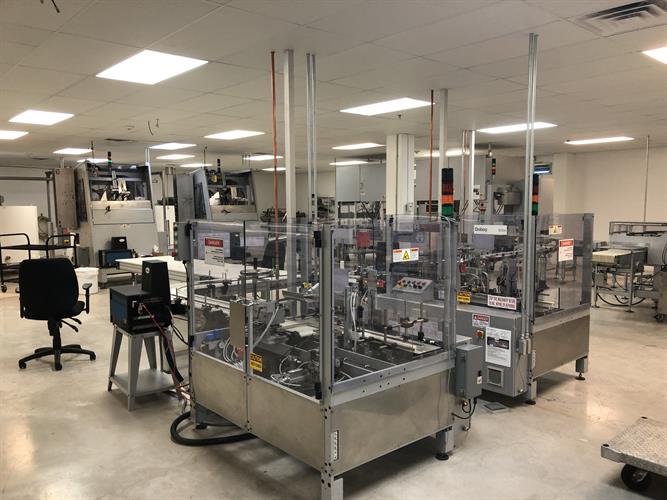

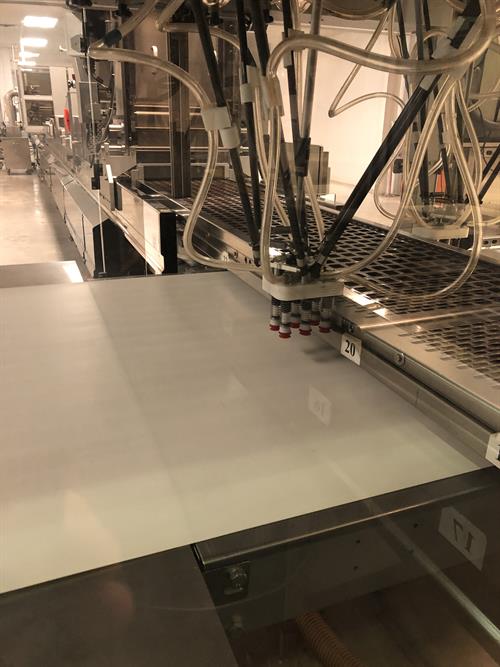

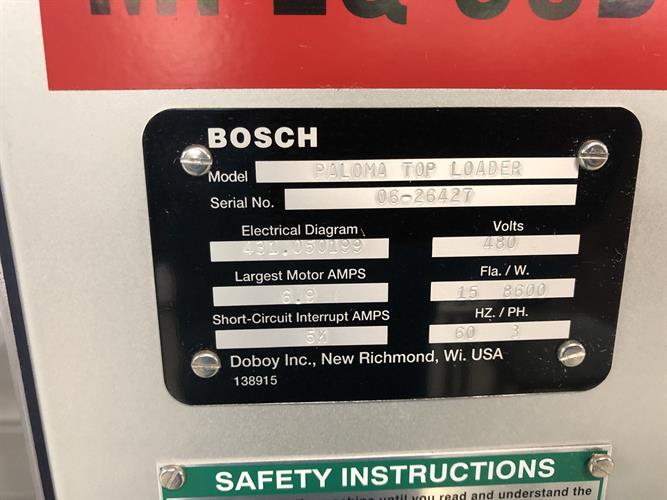

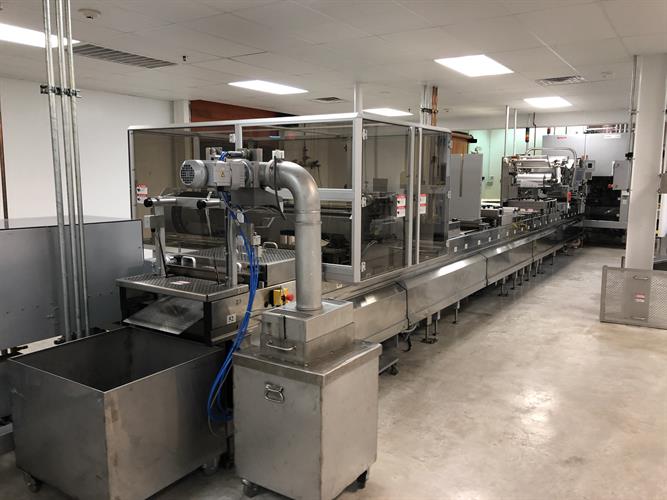

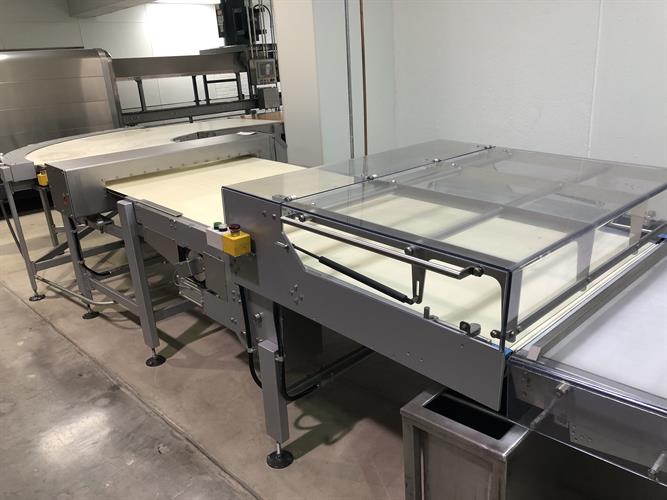

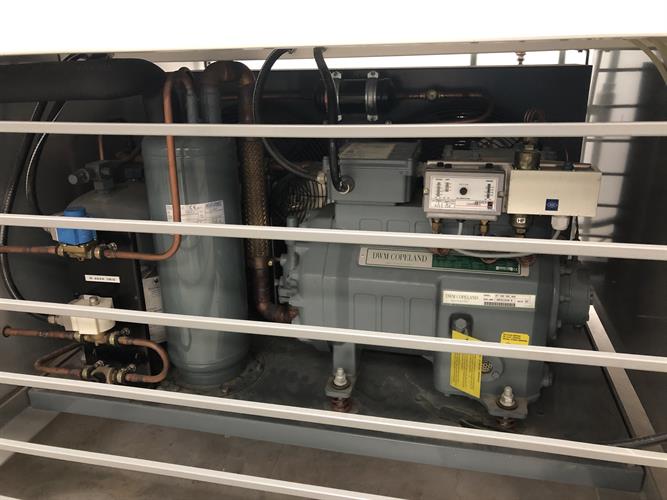

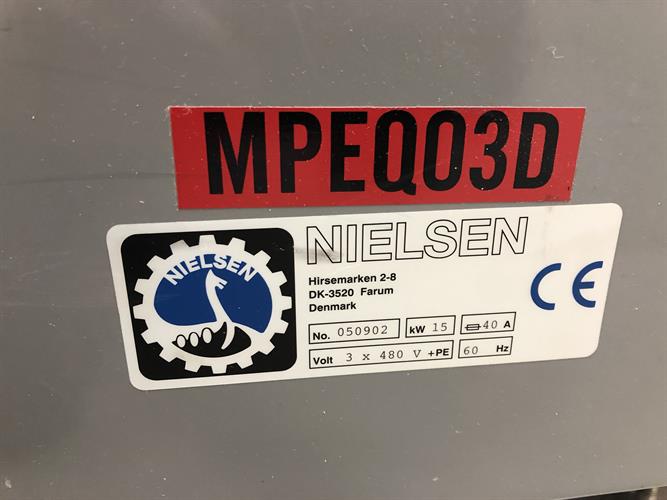

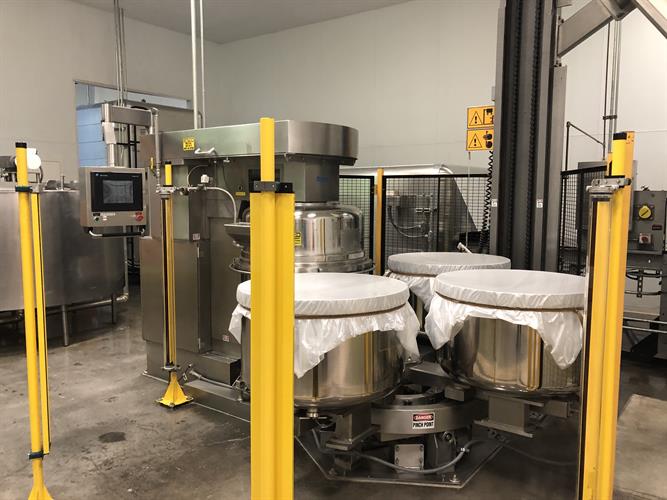

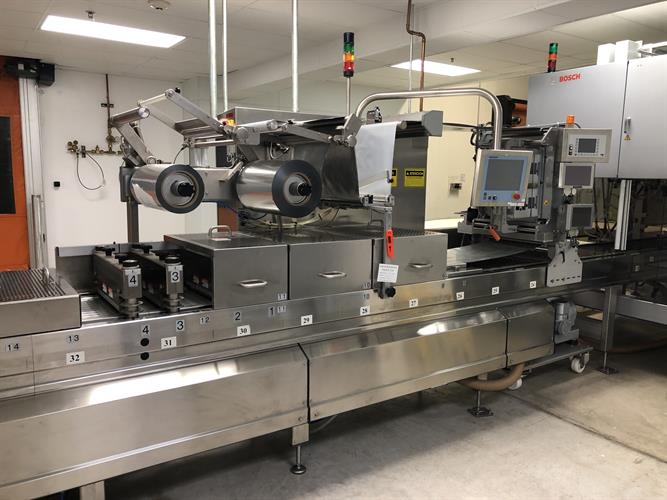

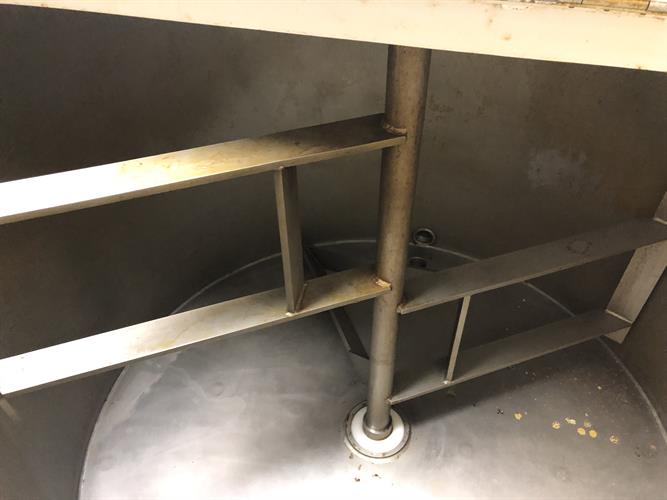

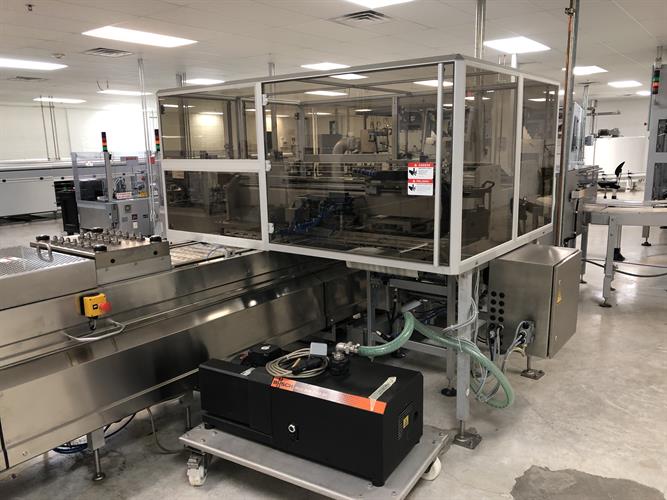

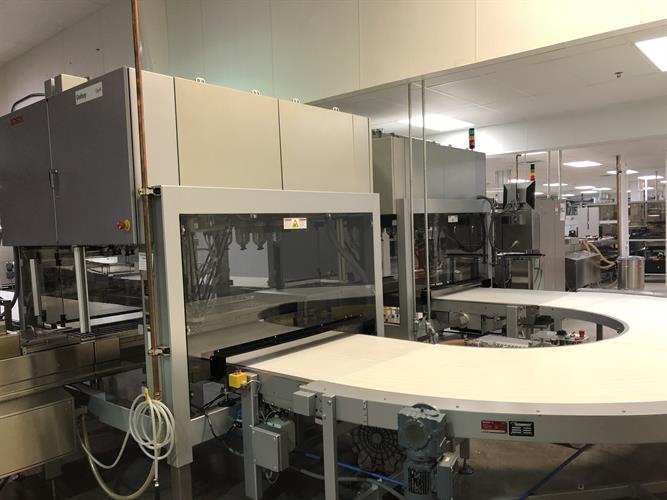

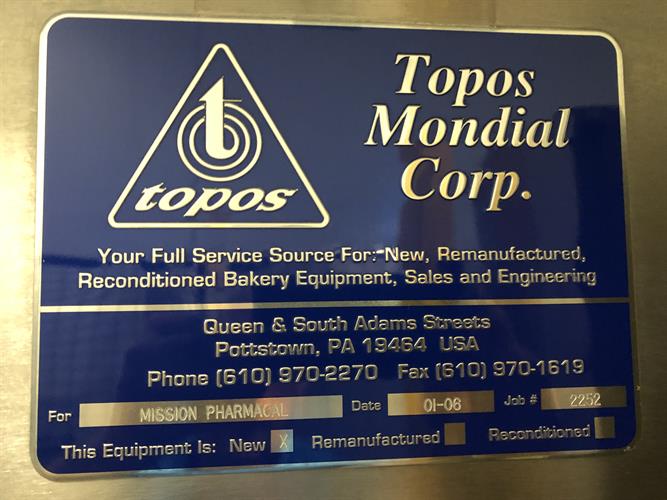

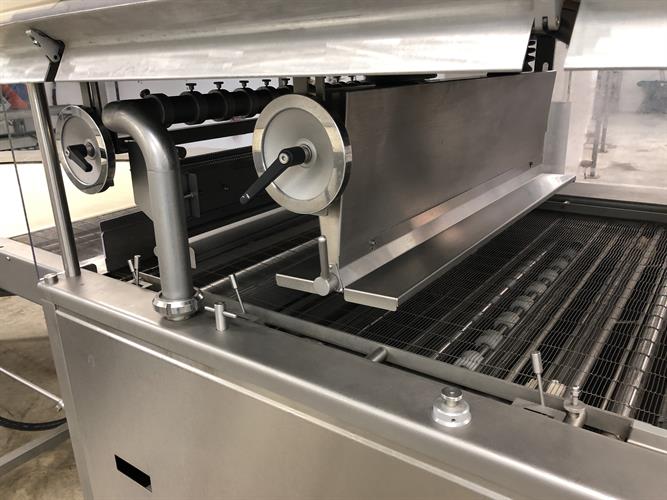

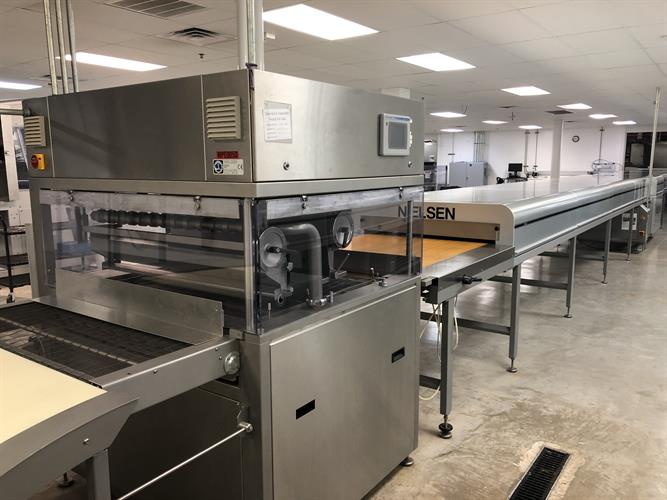

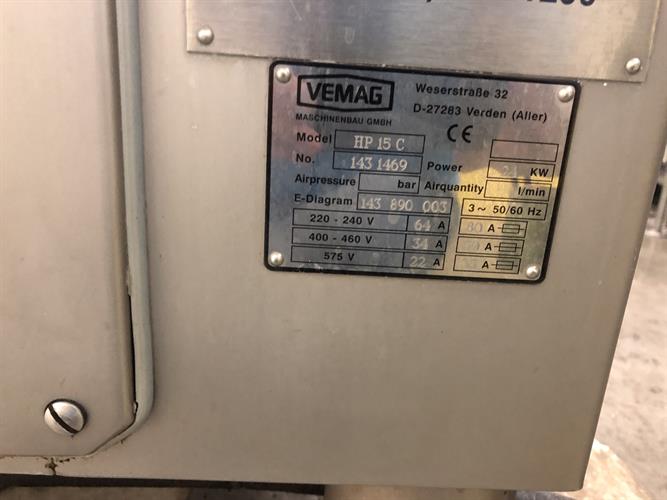

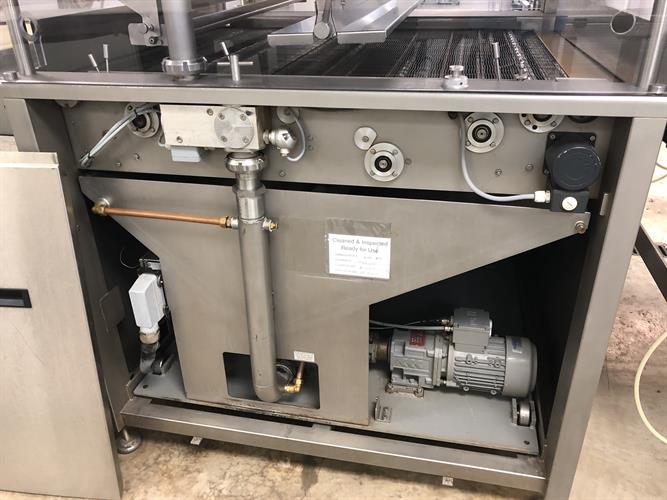

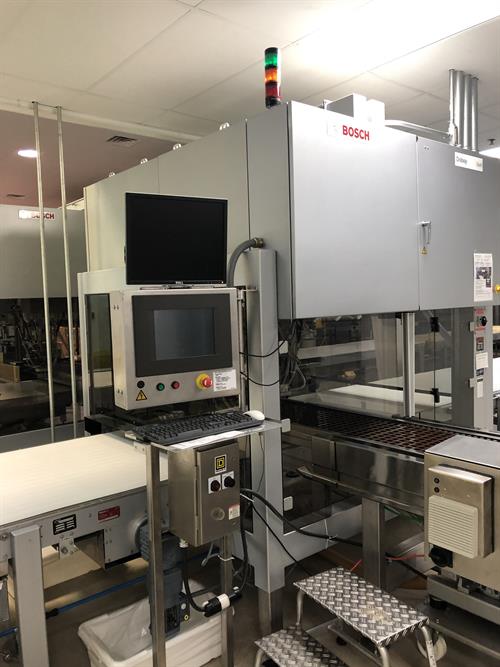

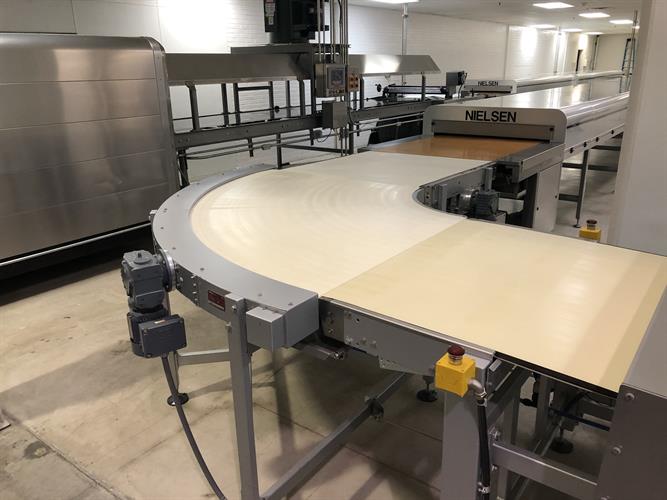

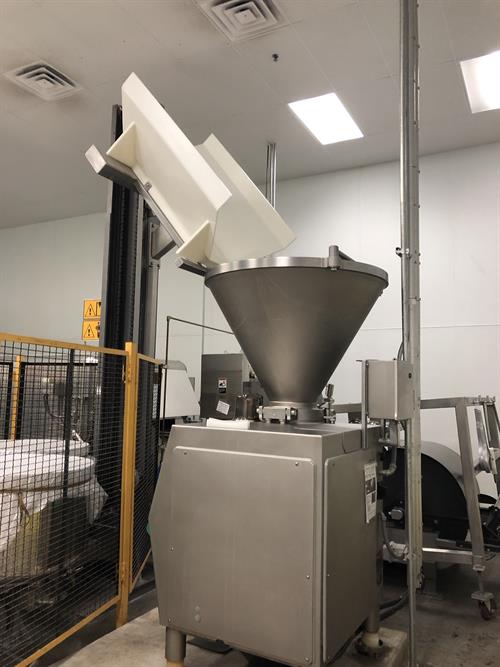

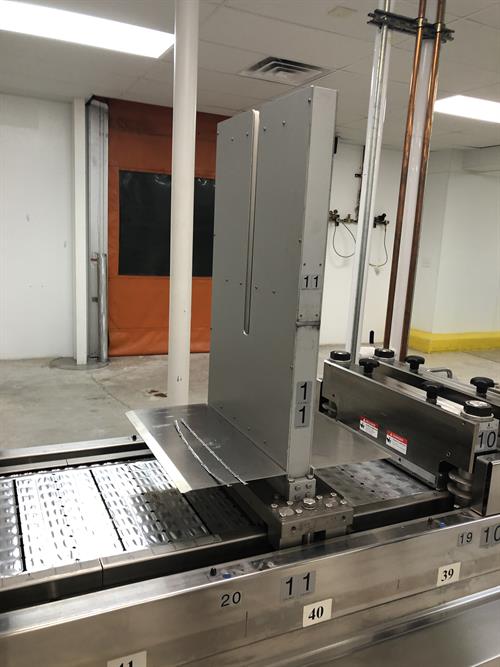

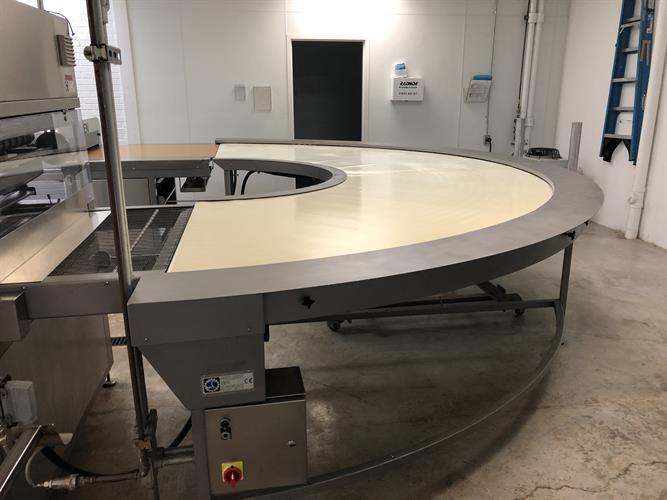

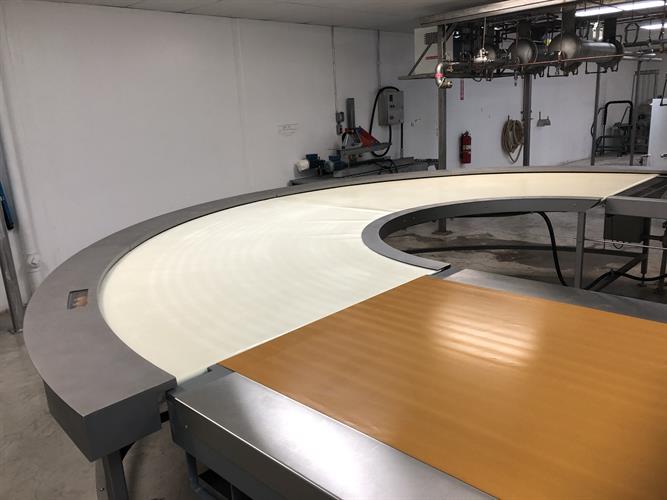

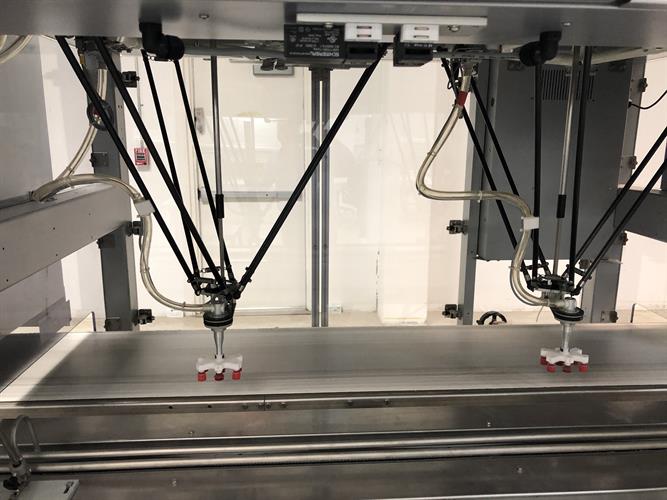

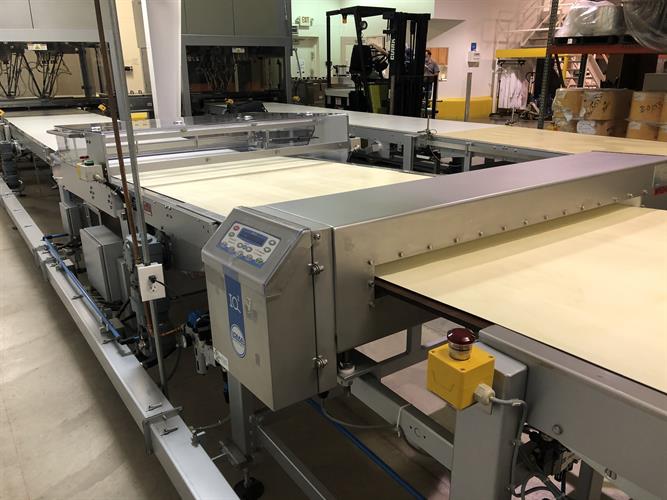

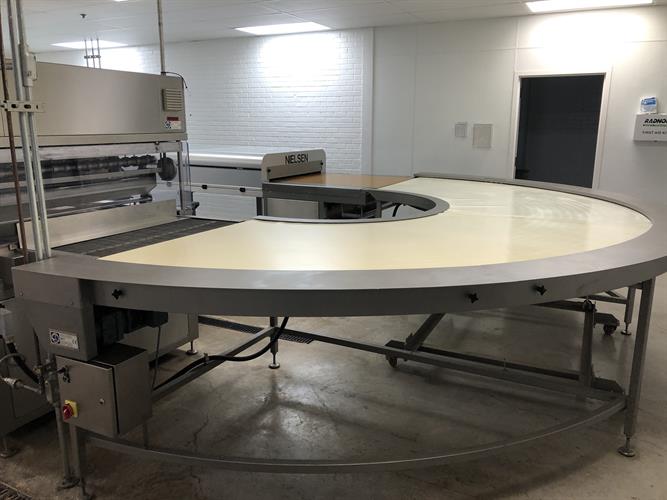

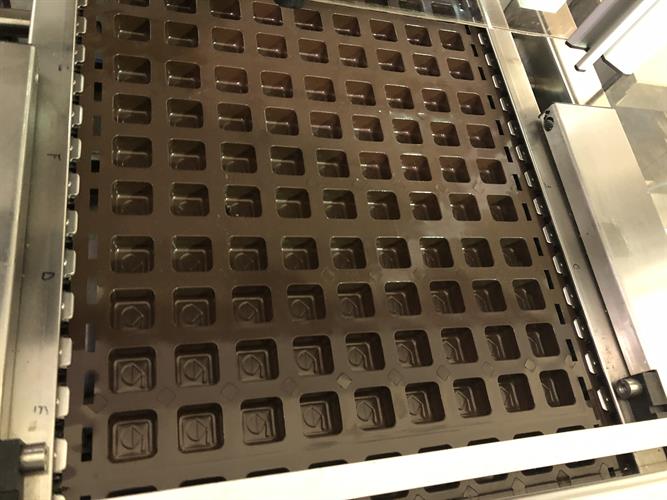

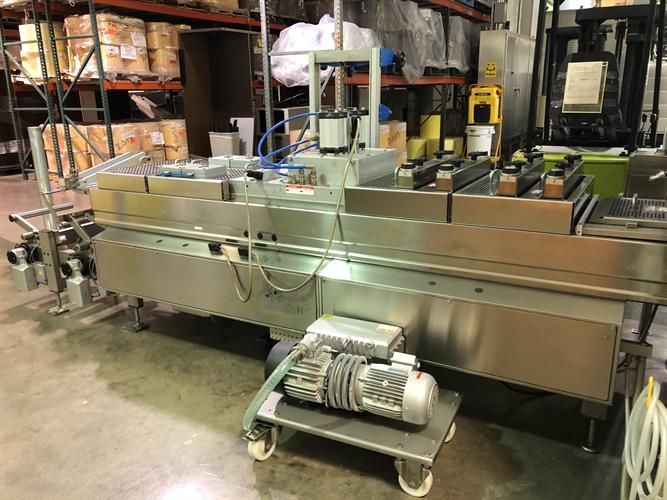

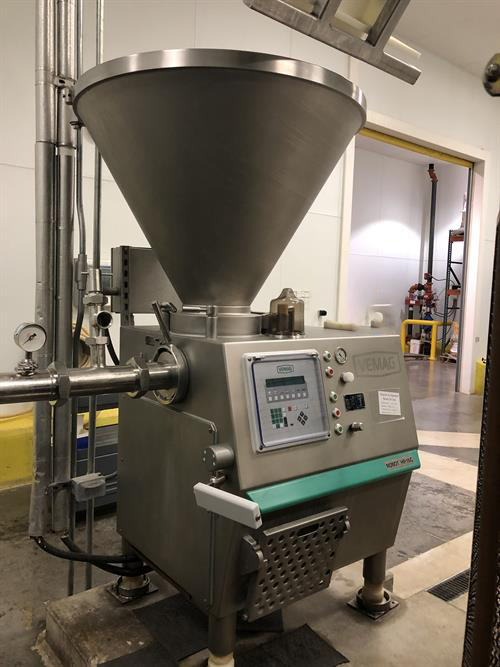

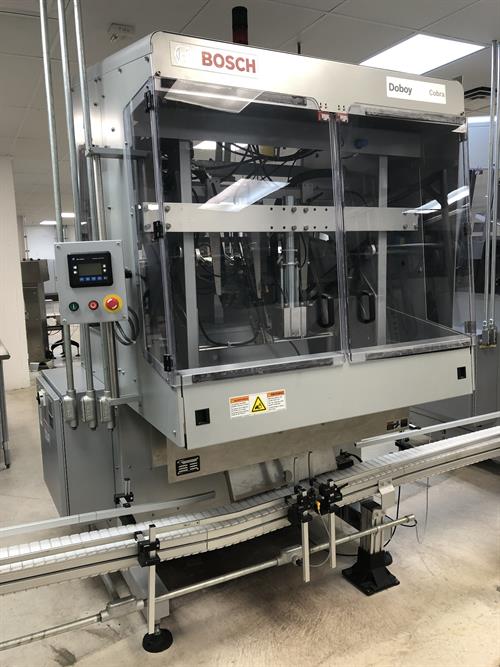

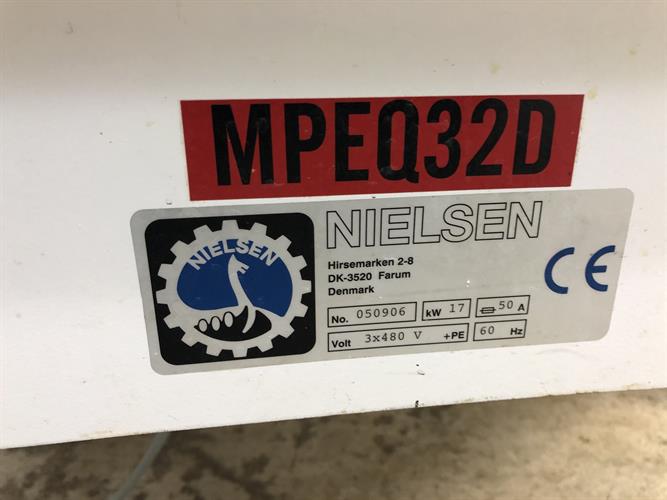

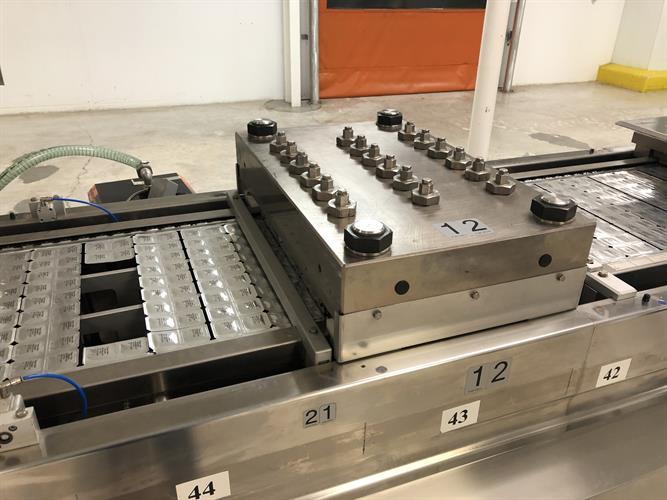

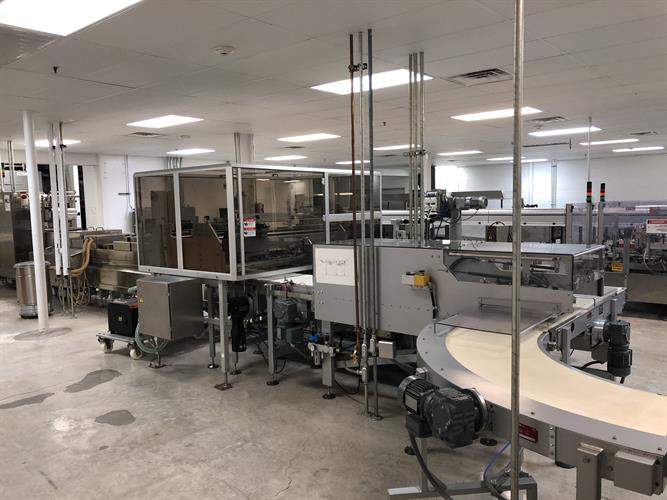

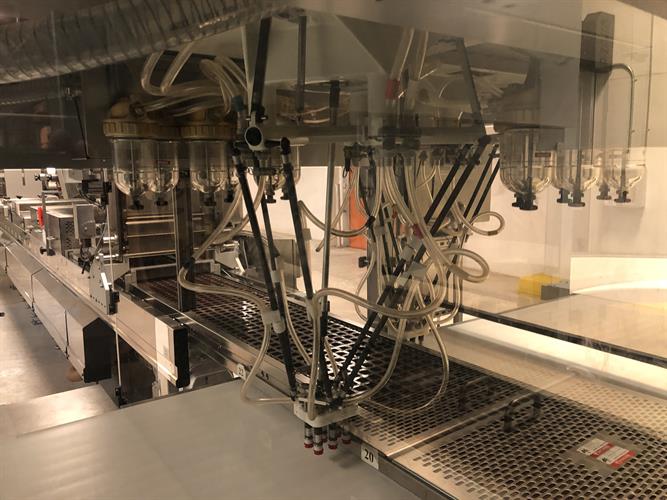

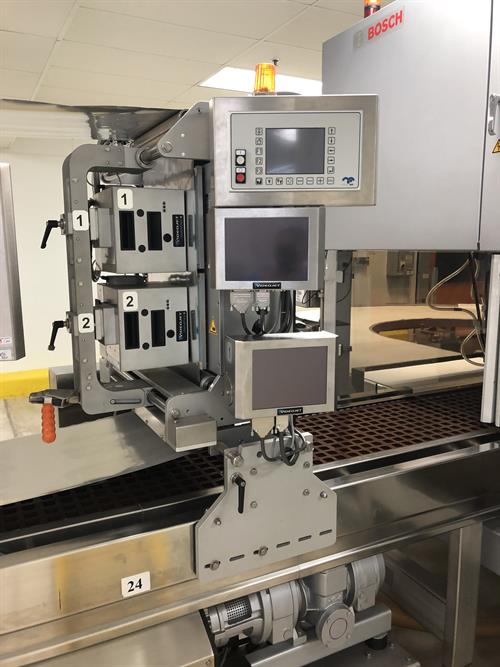

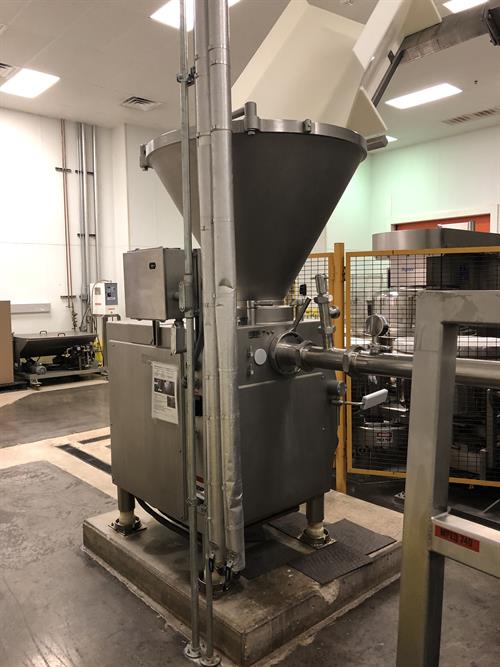

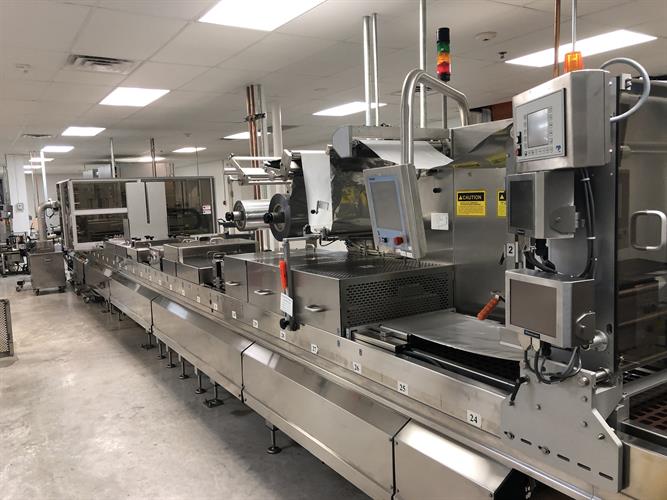

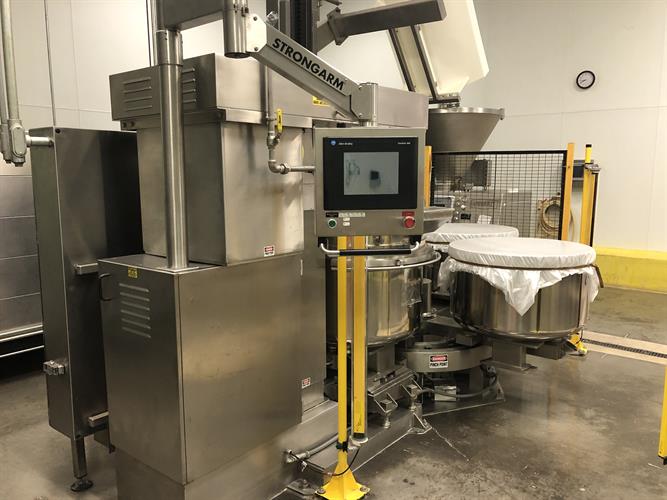

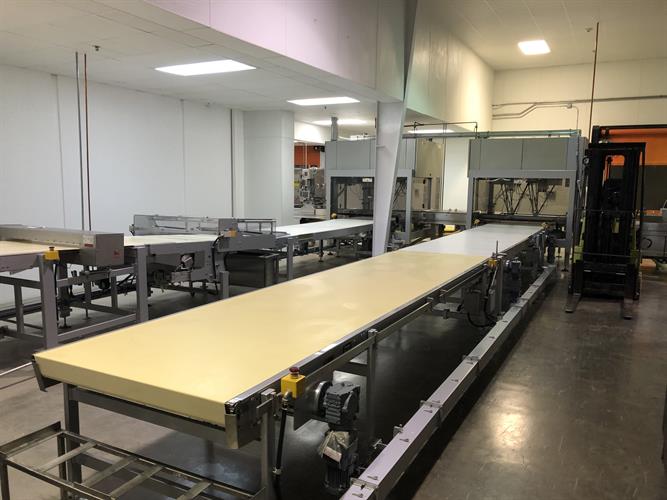

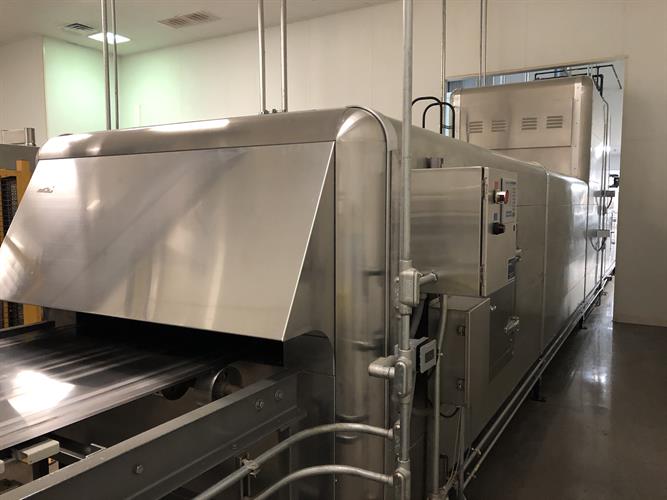

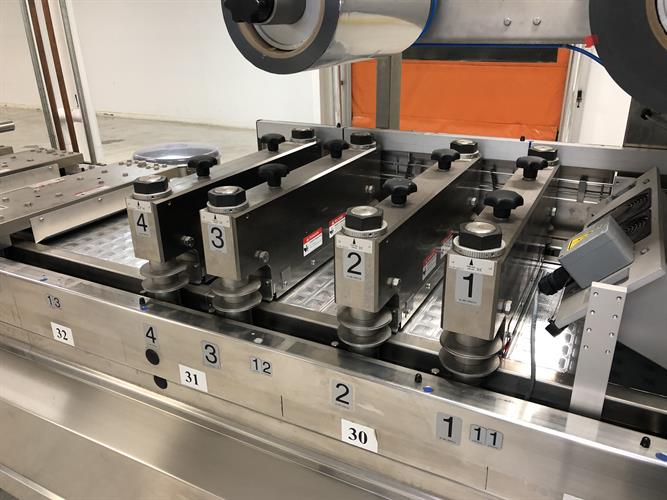

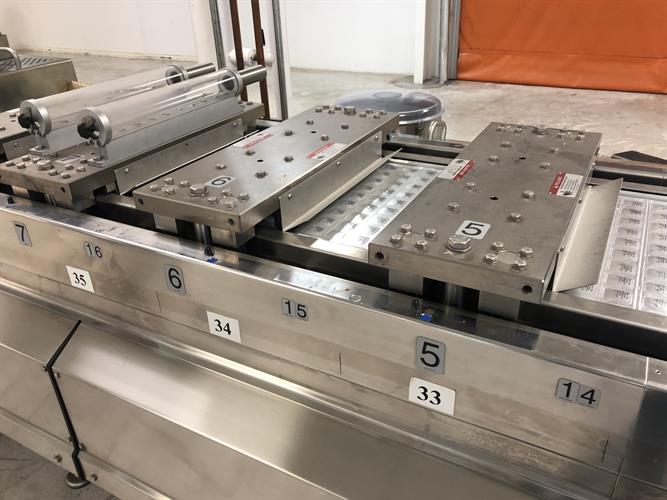

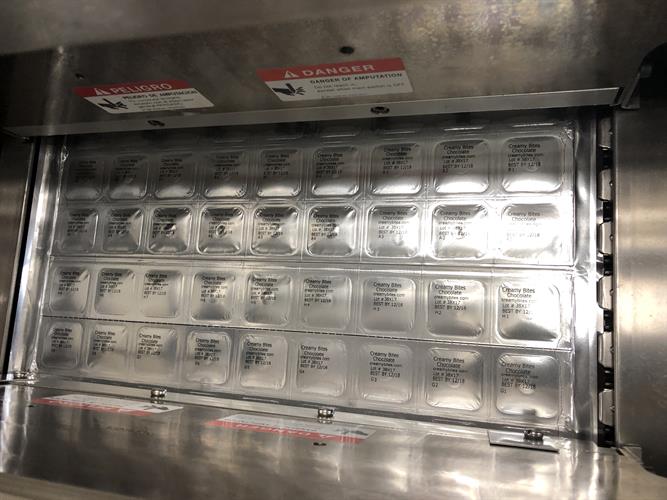

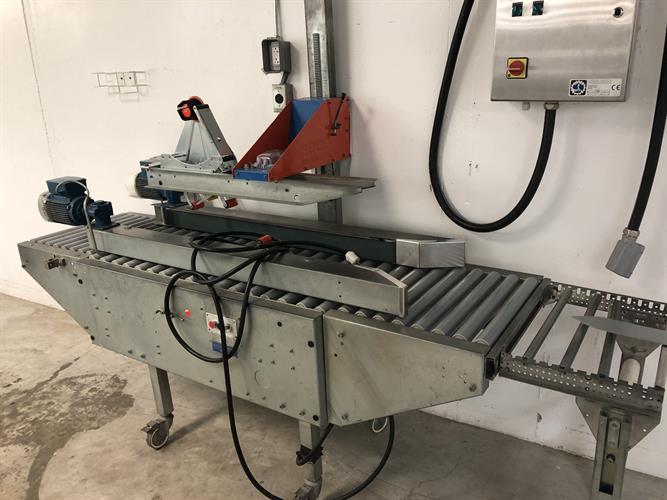

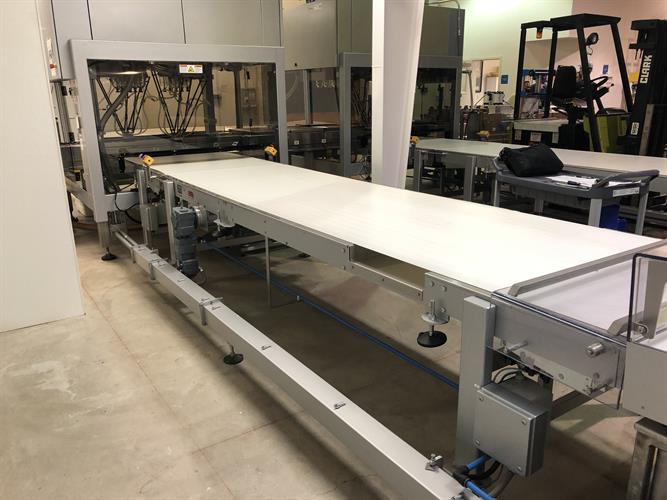

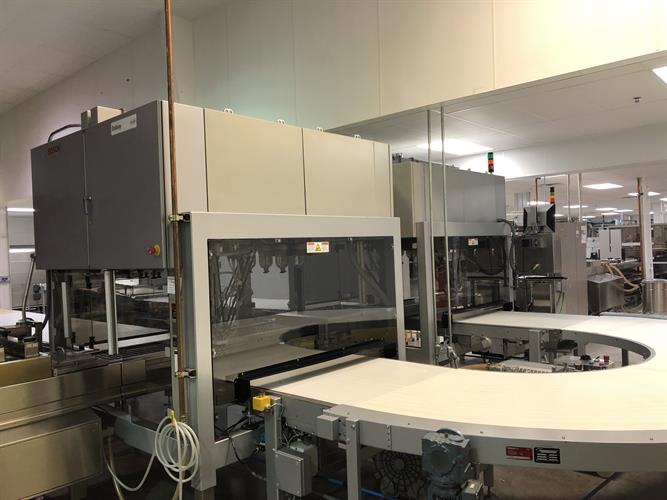

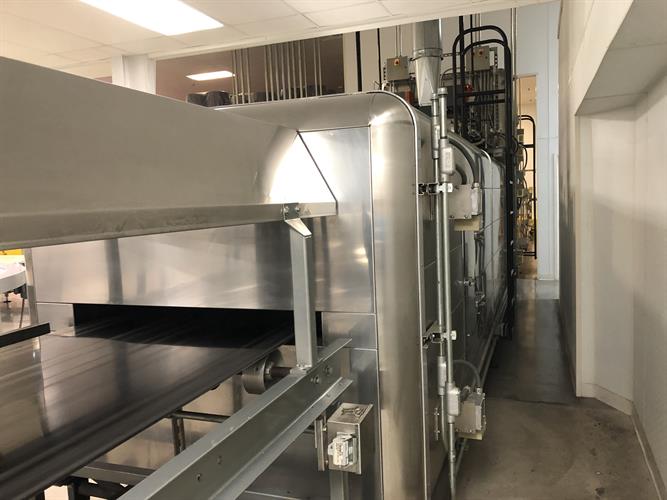

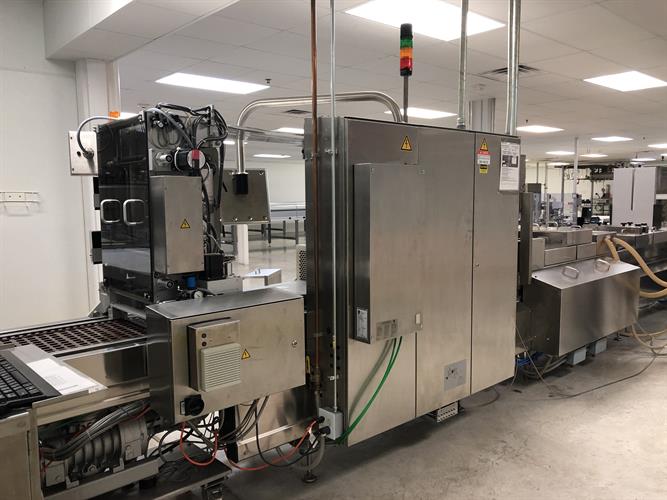

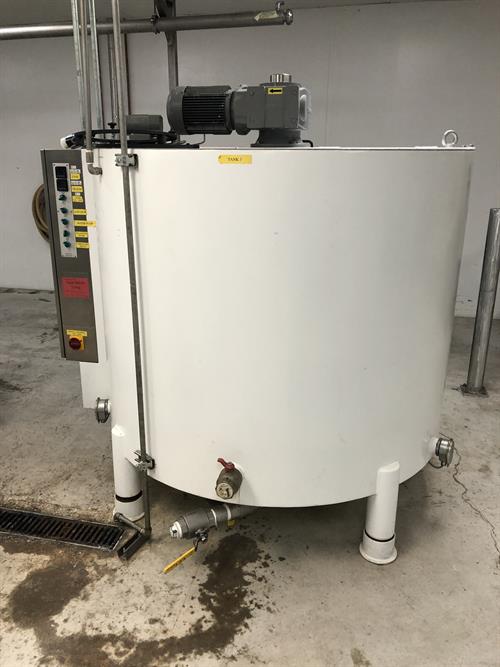

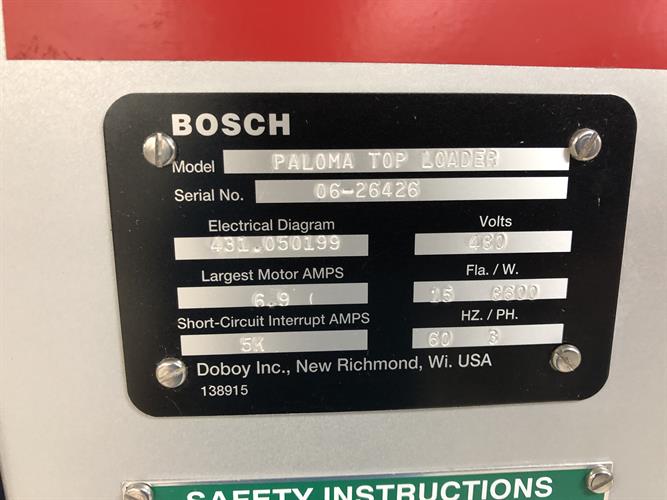

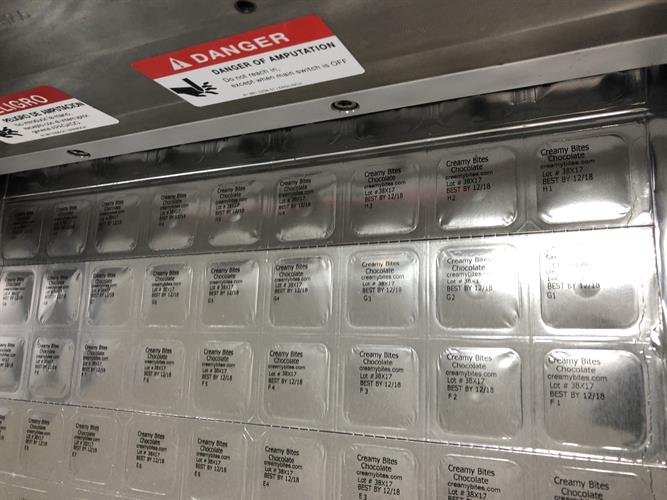

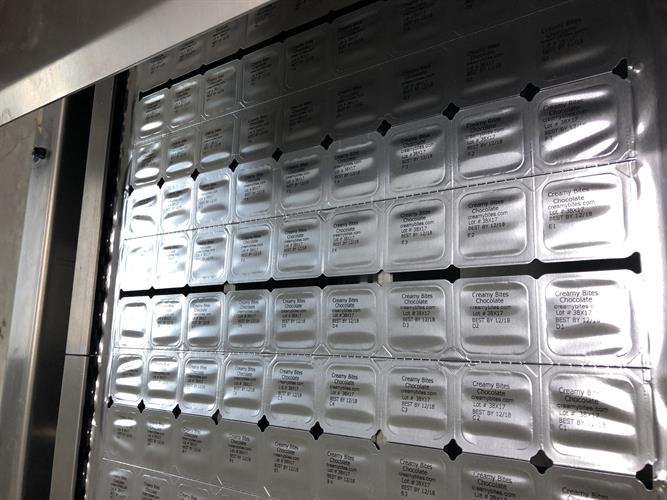

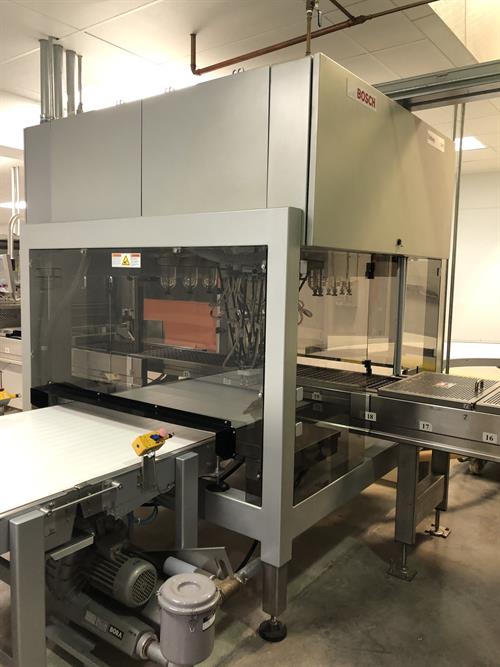

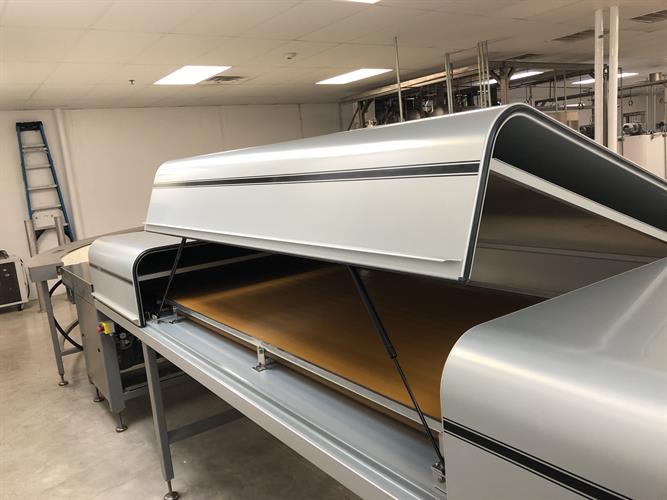

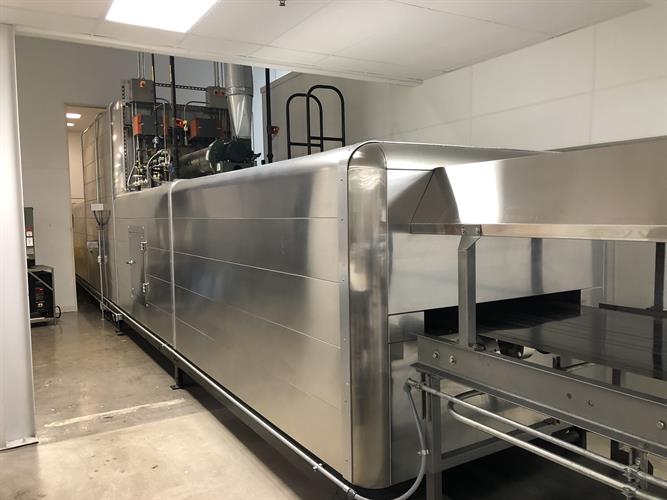

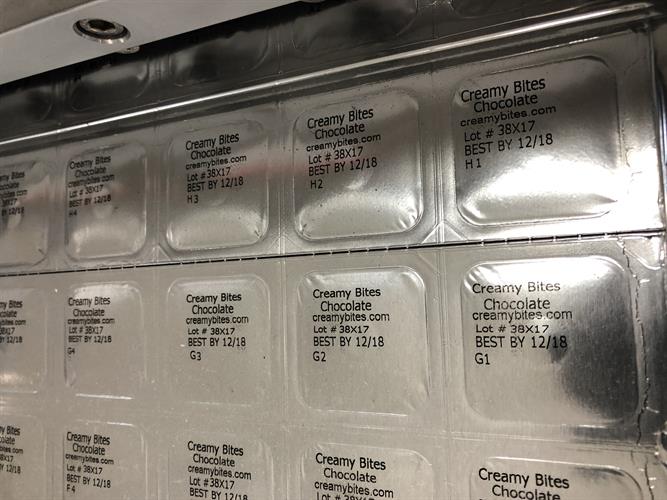

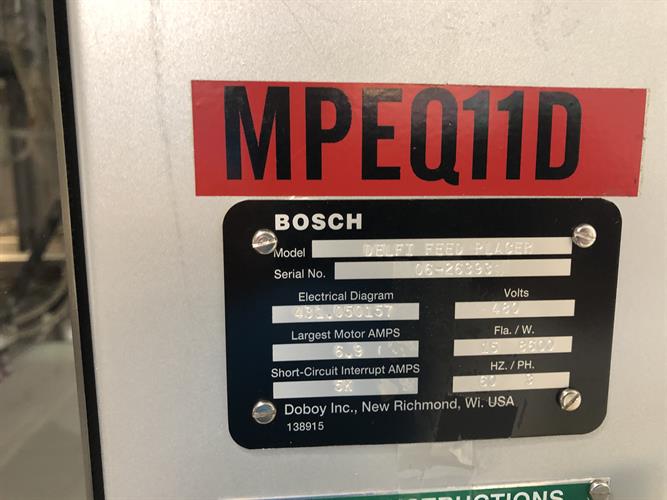

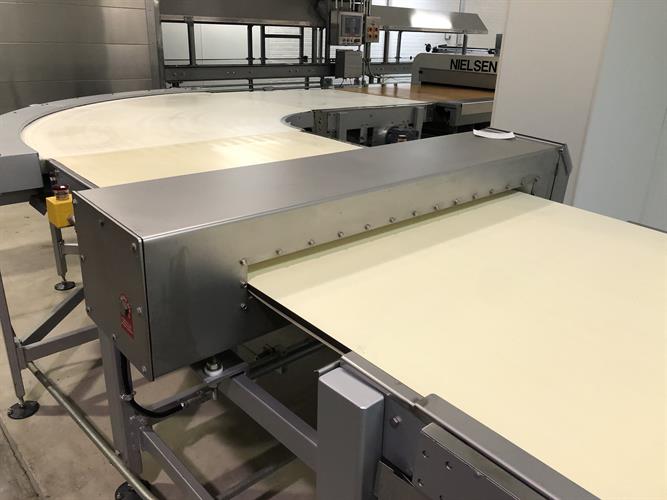

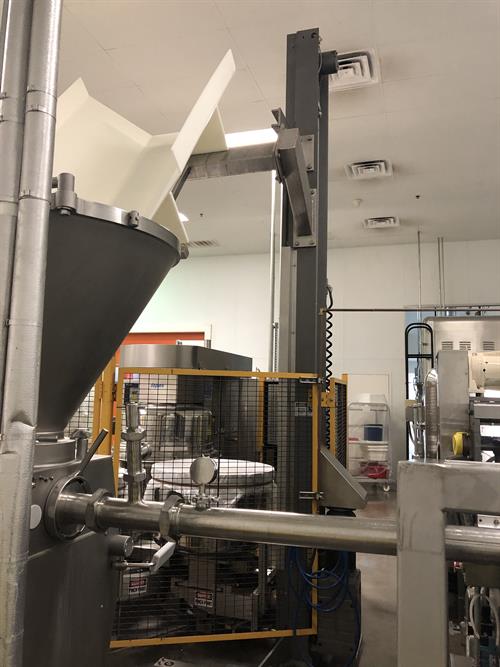

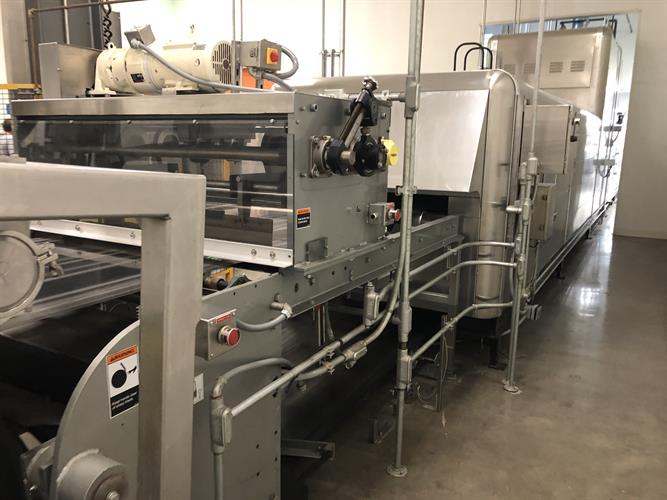

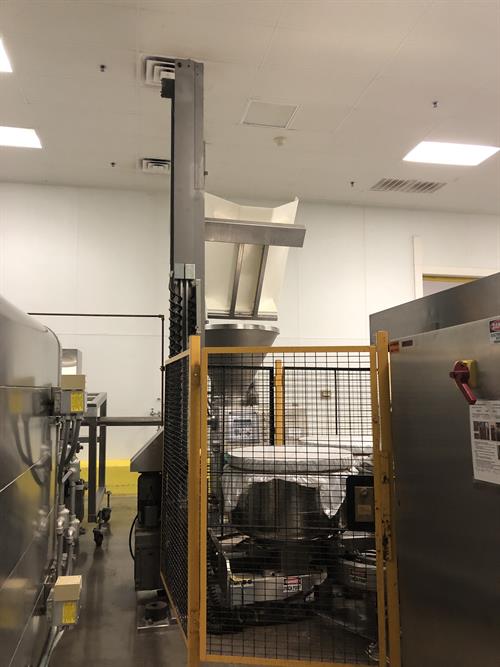

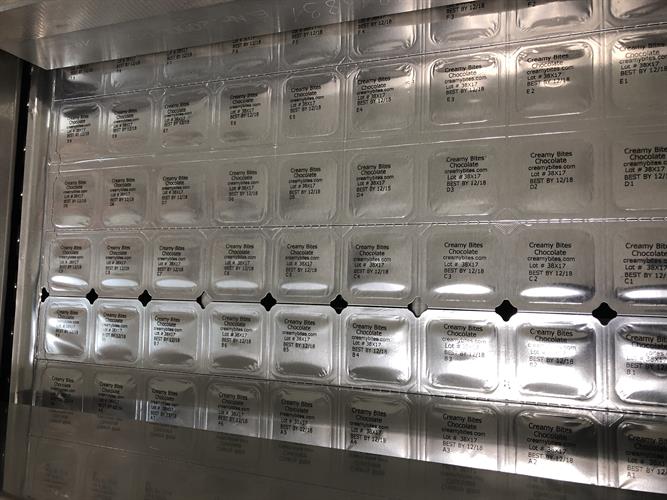

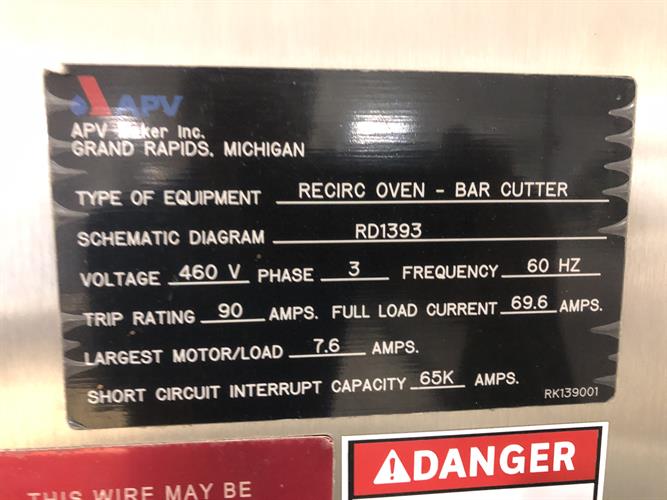

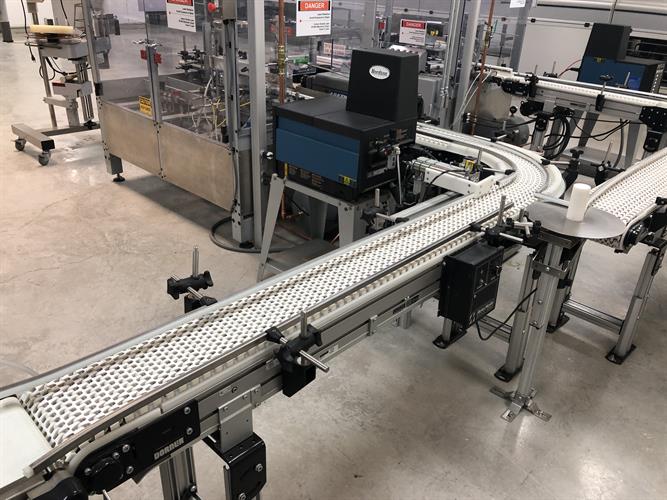

Brownie Bites Production Line Process machinery: Dough Mixing, Extruding, Baking and Chocolate Coating Packaging Machinery: Bosch Pick and Place, Thermoforming, Carton Forming, Pick and Place insertion, Carton Closing Output: 600 pieces/minute Line Usage: Ran for approx. 800 hours from 2007 to 2012 (still installed) Packed into blister packages: Singles, six and 12 pack Blister size: 1-11/16” square x 7/8” deep (individual blister) Glued Carton: 5” wide x 3.5” deep and 4.25” tall See attached pdf’s for complete details of each machine and a layout drawing. Inventory Listing Chester Jensen 800 Gallon Stainless steel Jacketed Mixing Tank Topos T-750 Carousel Planetary Mixing System with Bowl lift with Automatic Dumping Vemag Robot HP-15C with 40” long (16) Outlet Water Wheel Cutter with ¾” x ¾” die size APV 39” Guillotine Cutter APV 1-meter x 50-ft long gas fired Convection Oven with steel band and 20-ft cooling belt (Never used) Nielsen 1050 mm (40”) x 40-ft long Cooling Tunnel with air cooled Freon compressor Nielsen 52” 90 degree turn conveyor Nielsen 1050 mm (40”) Stainless Steel Junior Enrober with removable tank Nielsen 1050 mm (40”) x 60-ft long Cooling Tunnel with air cooled Freon compressor (3) Nielsen 2000 kg (4400 lb) Stainless Steel Chocolate Melters (1) Wright stainless steel jacketed Chocolate pump (3) Rotan carbon steel jacketed Chocolate pumps (3) Nielsen conditioner heat exchangers approx. 60” x long x 8” diameter Approx. 120-ft Stainless Steel 2” jacketed piping Bosch 90” 42” wide turn conveyor (2) Bosch Delphi Robotic Placers with Bosch feed conveyors & 180 degree turn to feed Bites into Multivac Vacuum forming machine Multivac R350 Thermoform machine for blisters with 19-ft long feeding area, gas flush, Video jet printers, several cutting, perforation and notching sections, vacuum pick discharge to conveyor belt (2) Bosch Cobra Carton Formers with Nordson Hot melt units and feed conveyor to Paloma robots (2) Bosch Paloma Robotic pick and place units to feed blisters into open cartons Metler Hi-Speed Micromate Checkweigher with arm reject with 3-rubber belts (2) Dorner 6” wide conveyors with 90 degree turns to feed Bosch 820E Carton Top Closers Markem Smartlaser 130 coder (2) Bosch 820E Carton Top Closers with Nordson Hot melt Units Soco Top and Bottom Pressure Sensitive Taper with side belts Orion mode L77/17 pallet stretch wrapper
This product is no longer available.
