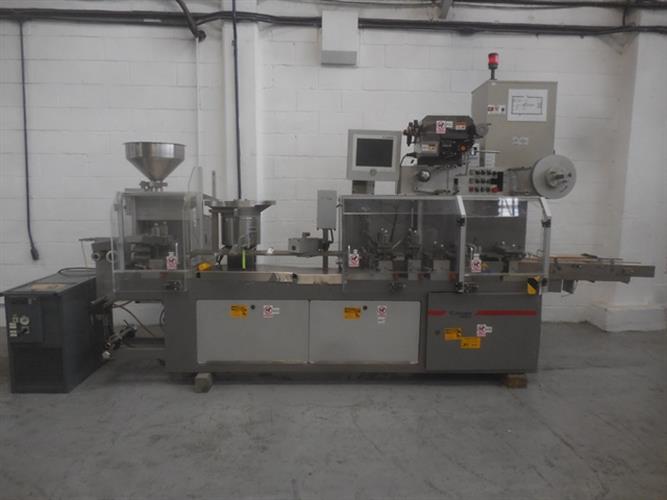

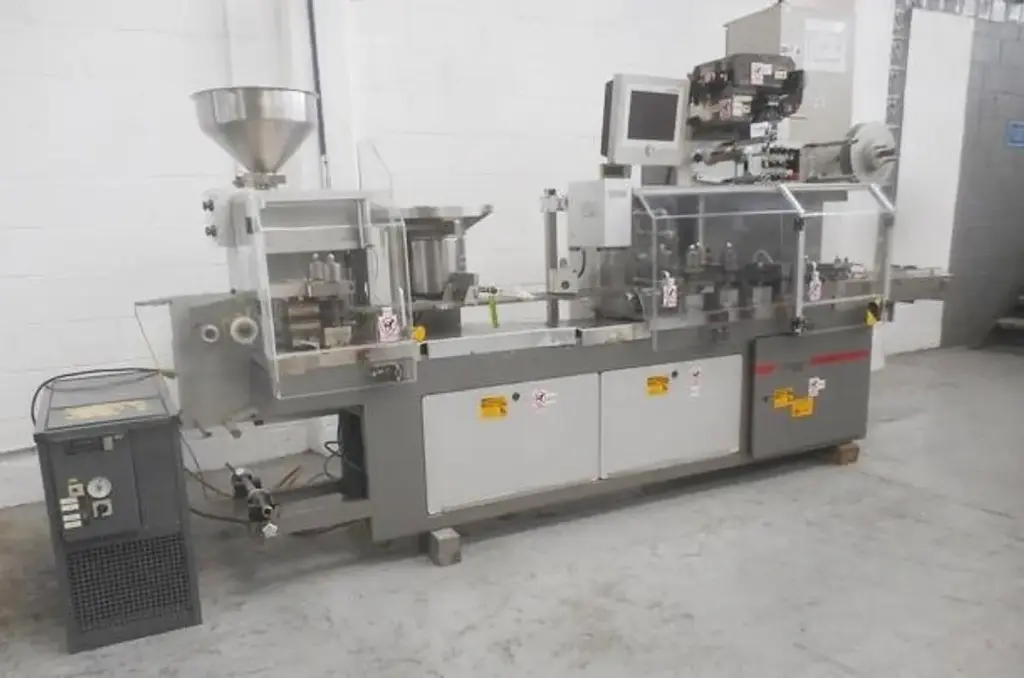

Klockner Hansel Model CP2 Blister Packager
This product has no valid combination.
Klockner Hansel Model CP2 Blister Packager
- Stainless steel hopper & vibratory feeder
- Film preheating Station
- Blister forming system
- Film sealing station
- Film cutting station
- Presently set to produce (4) 35mm x 83 mm blisters
- Laetus model TLU LED XSMR vision unit and Commander operator panel
- Gottscho model 806-4 flexographic printer
- Autotherm model KB-13 chiller
- Maximum foil width: 150 mm
- Draw off length: 90 mm
- Useable area: 142 x 88 mm
- Maximum base foil roll diameter: 400 mm
- Maximum cover foil roll diameter: 220 mm
- Maximum blisters/minute: 120
- 1 HP, 3 Phase, 60 cycles, 220-440 Volt motor
- Machine dimensions: 12' 6" long x 3' wide
