VC999 Packaging Systems model RS560 Rollstock Vacuum Tray Former and Sealer

https://shop.unionmachinery.com/web/image/product.template/7179/image_1920?unique=c9a6401
Please sign in to submit request.
VC999 Packaging Systems model RS560 Rollstock Vacuum Tray Former and Sealer

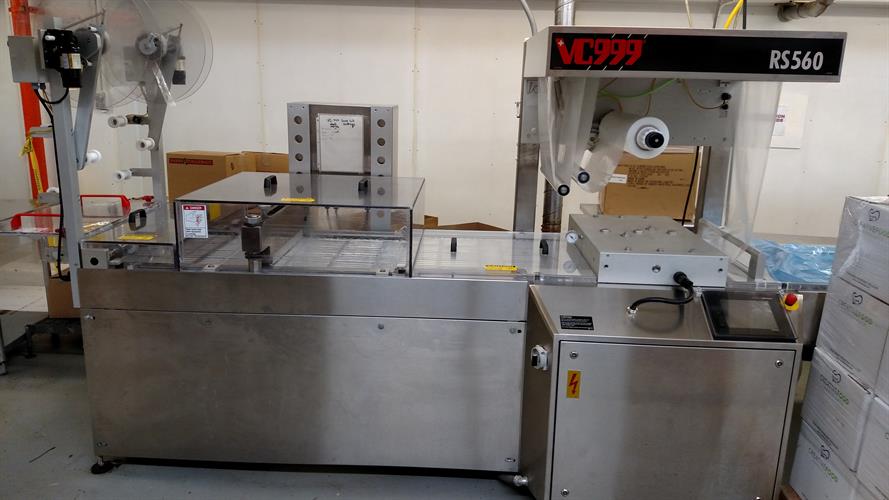

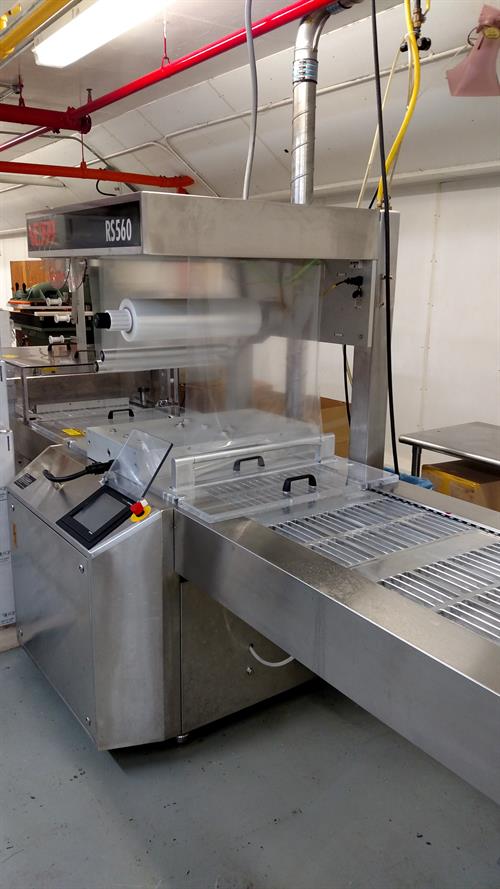

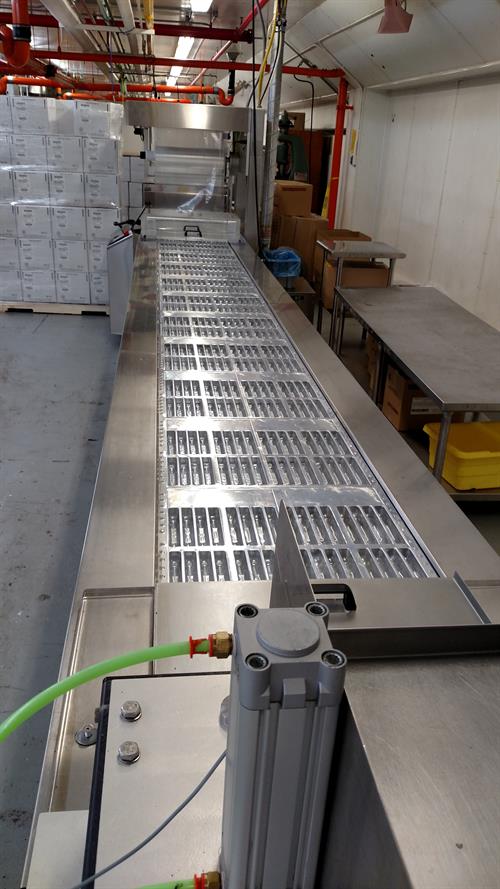

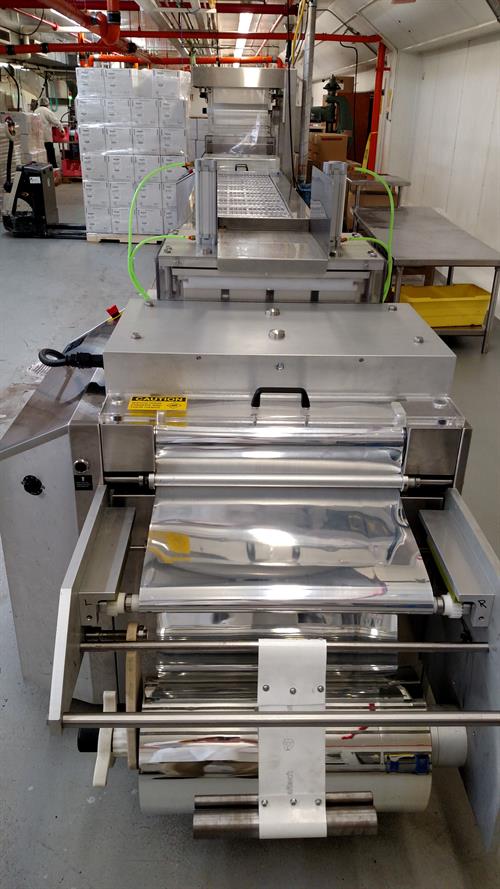

VC999 Packaging Systems model RS560 Rollstock Vacuum Tray Former and Sealer - Vacuum forming, hand loading, top sealing - Electric eye for print registration for top sealer - Cutting station to separate packages - Film trim is automatically removed - Max strokes per minute: 4.5 cycles/minute - Max index length: 650 mm - Draw depth: 50 mm - Forming width of lid film: 563 mm - Film roll diameter: 500 mm - Compressed air: min. 7 bar - Vacuum pump - Serial#RS56012662390 - 3 phase, 60 cycle, 400 volts - Current tooling 7.75” x 4” x 2.25” deep cavities - Overall length of the machine 29-ft 4”. 8-feet wide. (Can remove a 7.5 ft long hand fed section to make the machine smaller)

Location: Washington
Stock No: 80372

This product is no longer available.

Documents
