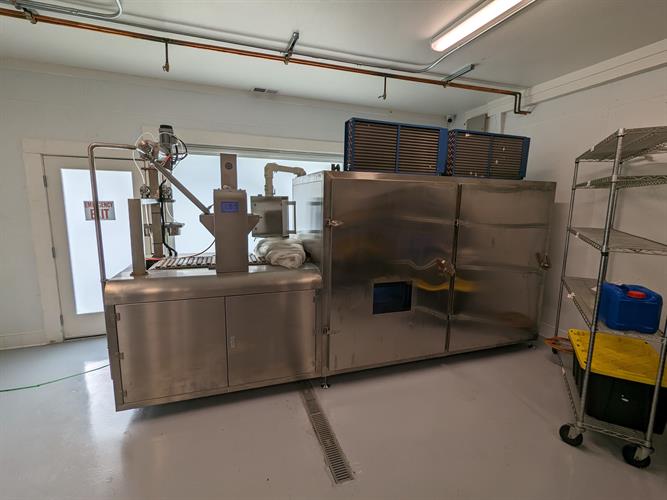

QH Bake Machinery J40 Gummy Line
This product is no longer available.
QH Bake Machinery J40 Gummy Line
- Built new in 2021 / Never used
- 24,000 to 36,000 pieces per hour
- 100 mold capacity circuit
- 100 liter SS kettle for sugar dissolving
- High shear mixer
- Working temp up to 150C
- (2) Pumps to transfer syrup
- (2) 200 liter SS liquid sugar tank
- (1) for cooling (1) for syrup storage
- J40 servo depositing line
- PLC controlled
- Demolding system
- (100) molds 380mm x 75mm Teflon coated
- 20 cavities per mold 10 x 2
- Pieces are 20mm x 9mm deep w flower imprint
- Sugar sander
- (10) carts and approx 500 holding trays
- Electrical Requirements: 220V, 3 phase, 160A.
- Compressed Air: 30CFM @ 90PSI Oil-free and moisture free air
- Depositor and cooling tunnel: 175" x 60" x 96" tall
- Sugar storage tank w/scraper: 90" x 50" x 72" tall
- Dissolving sugar cooker with scraper (two kettles) and control panel: 120" x 48" x 65" tall
- Sugar Sanding drum: 84" x 55" x 57" tall
