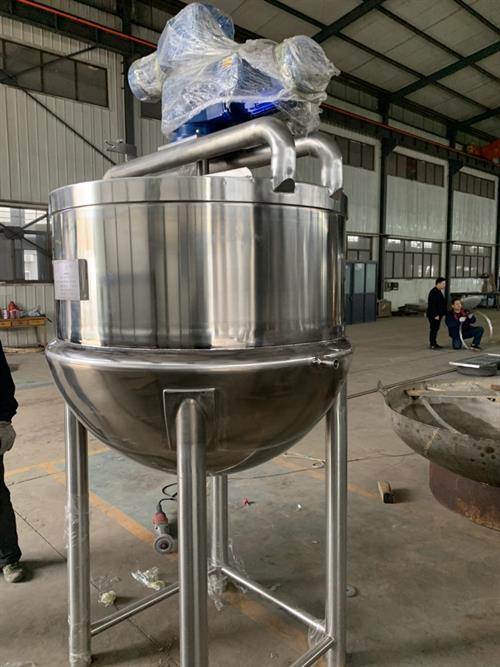

New NEC Stainless Steel Jacketed and Agitated Cooking & Mixing Kettles

New NEC Stainless Steel  Jacketed and Agitated Cooking & Mixing Kettles
- 316 SS product surfaces. Non-Product contact surfaces 304 SS
- Agitator offered both single and double action
- Jacket rated for 125 psi (can quote with lower pressures)
- Tri-Leg configuration with flanged feet
- 3" center bottom discharge with ball valve
- Agitator with Nord brand motor/gearbox - bridge mounted
- Tri-clamp additive ports in cover
- Stainless steel hinged cover on both sides
- Custom kettles are available

25 Gallon: 31.5" diameter x 41" deep, 3 HP motor (2 HP secondary agitator)
50 Gallon: 35" diameter x 45" deep, 3 HP motor (2 HP secondary agitator)
100 Gallon: 39" diameter x 53" deep. 3 HP motor (2 HP secondary agitator)
150 Gallon: 43" diameter x 59" deep, 3 HP motor (2 HP secondary agitator)
200 Gallon: 47" diameter x 65" deep, 3 HP motor (2 HP secondary agitator)
250 Gallon: 51" diameter x 69" deep, 5 HP motor (3 HP secondary agitator)
300 Gallon: 55" diameter x 73" deep, 5 HP motor (3 HP secondary agitator)

Pricing Single and Double Action Agitation

25 Galllon S/A   Sell $23,700.0
25 Gallon D/A   Sell $27,700
50 Galllon S/A   Sell $27,900
50 Gallon D/A   Sell $ 31,900
100 Galllon S/A  Sell $32,200
100 Gallon D/A  Sell $37,500
150 Galllon S/A  Sell $34,500
150 Gallon D/A  Sell $38,500
200 Galllon S/A  Sell $42,500
200 Gallon D/A  Sell $46,500
250 Galllon S/A  Sell $47,500
250 Gallon D/A  Sell $51,700
300 Galllon S/A  Sell $52,500
300 Gallon D/A  Sell $57,900
