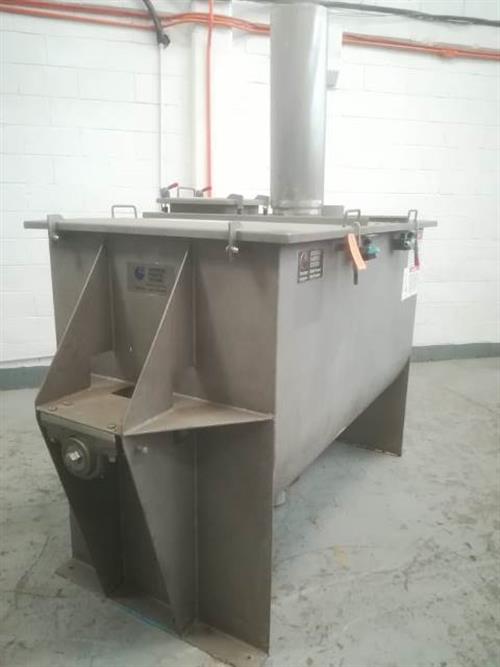

American Process Systems (Eirich) 30 Cu-Ft SS Fluidize Paddle Mixer
- Model UFO30/6567, Type FPB-030 , serial#6567 - built 2008
- 30 cu/ft working capacity and 62 cu/ft full capacity
- 66" long x 37" wide x 44" deep chamber dimensions
- 8” bottom center automatic discharge with butterfly valve with air-operated actuator
- With covers
- 15 HP, 3 Ph, 60 cycles, 230-460 volt motor (set on 440 volts)
- Control panel with variable frequency controller
- OptimaBlend® eliminates roll apart segregation caused by
gravity when mixing ingredients of greatly varying density,
shape and size by fluidizing. Fluidization is achieved by a
combination of a defined geometry lifting action with a triple
paddle, multi-zoned rotor turning about 80% faster than a
traditional ribbon blender.
Incredibly precise low CV blends are achieved in less than
60 seconds for most powdered ingredients.
